6.2.2

Preparing WinMatic for the appropriate mounting side

If required, prepare WinMatic for the appropriate mounting side. In its initial state,
WinMatic is ready for mounting on windows that are hinged on the right.
To convert WinMatic for mounting on a window that is hinged on the left (window handle
on the right), proceed as described below.

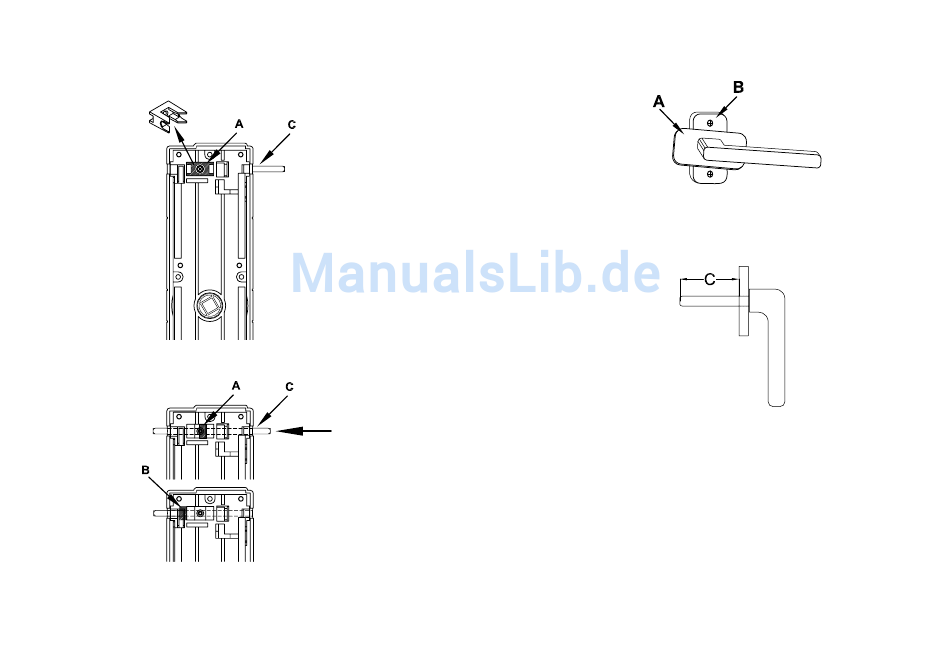

Remove the screw from the shaft locking device (A), followed by the shaft locking device
itself.
Push the shaft (C) in the direction of the arrow as far as it will go. The shaft stopper (B)
is now on the other side of the shaft locking device. Reinsert the shaft locking device
and fix it in place again with its screw.
42
6.2.3

Removing the window handle

Move the window handle to the "open" position (horizontal).
Turn the handle cover (A) to the side in order to gain access
to the fixing screws (B).
Loosen and remove the screws.
Now measure the length of the window handle axle (C) in order
to select the correct handle axle from those supplied with WinMatic.
43
