Tacking Under Wind Control; Navigator Course Control - Vdo Pilot Control Montageanleitung Und Bedienungsanleitung

To initiate the Tack function of the
is displayed in the Information line of the LCD.
To tack, press either the
the present true wind angle) and will steer the vessel on to the new course, holding the new wind angle.
The Tack function will also work when gybing.
To make small changes to the wind angle, whilst still in Auto mode, turn the Course control knob. The Pilot
Wind
control
Before Tack:
will turn the vessel onto the new heading and hold the new wind angle.
To make larger course changes press the AUTO key to disengage Auto mode, turn the vessel manually, then
press the AUTO key to engage Auto mode again to continue on your new heading and a new wind angle.

Navigator course control

The Pilot can be interfaced to a navigation device such as a GPS, Loran or Plotter using the Industry
Standard NMEA 0183 format. Once a waypoint has been selected as a target and the navigation device is
providing the Pilot with navigation data to the target, the Pilot may be engaged under Navigator course con-
trol.
Steer the boat onto the desired heading to minimise any Cross Track Error, so that Auto mode can be enga-
ged.
As soon as Navigator course control is selected the Pilot will read the magnetic bearing to the target from
the navigator (if magnetic bearings are not available, the Pilot Computer will automatically use true bearings)
and use this as the course to steer. Selecting Auto mode will then cause the Pilot to turn the vessel onto that
course and hold it.
The Pilot constantly monitors the Cross Track Error signal from the navigator and applies Navigator Gain to
maintain a direct Course Over Ground to the target.
Note that the vessel may establish a "crab" angle to compensate for wind and tide as it steers to the way-
point.
If a new waypoint is selected in the navigator, manually or because it is in a route, the Pilot will be triggered,
by a change of waypoint identifier, to accept a new course to steer.
The Pilot will then automatically turn to the new course, or wait until the AUTO key is pressed before it turns,
depending whether the automatic or manual option has been set. While under Navigator Control, both the
46
COURSE CONTROL
keys, press them at the same time, repeatedly until T T A A C C K K M M O O D D E E
and
or key. The Pilot Computer will automatically calculate the new course (double

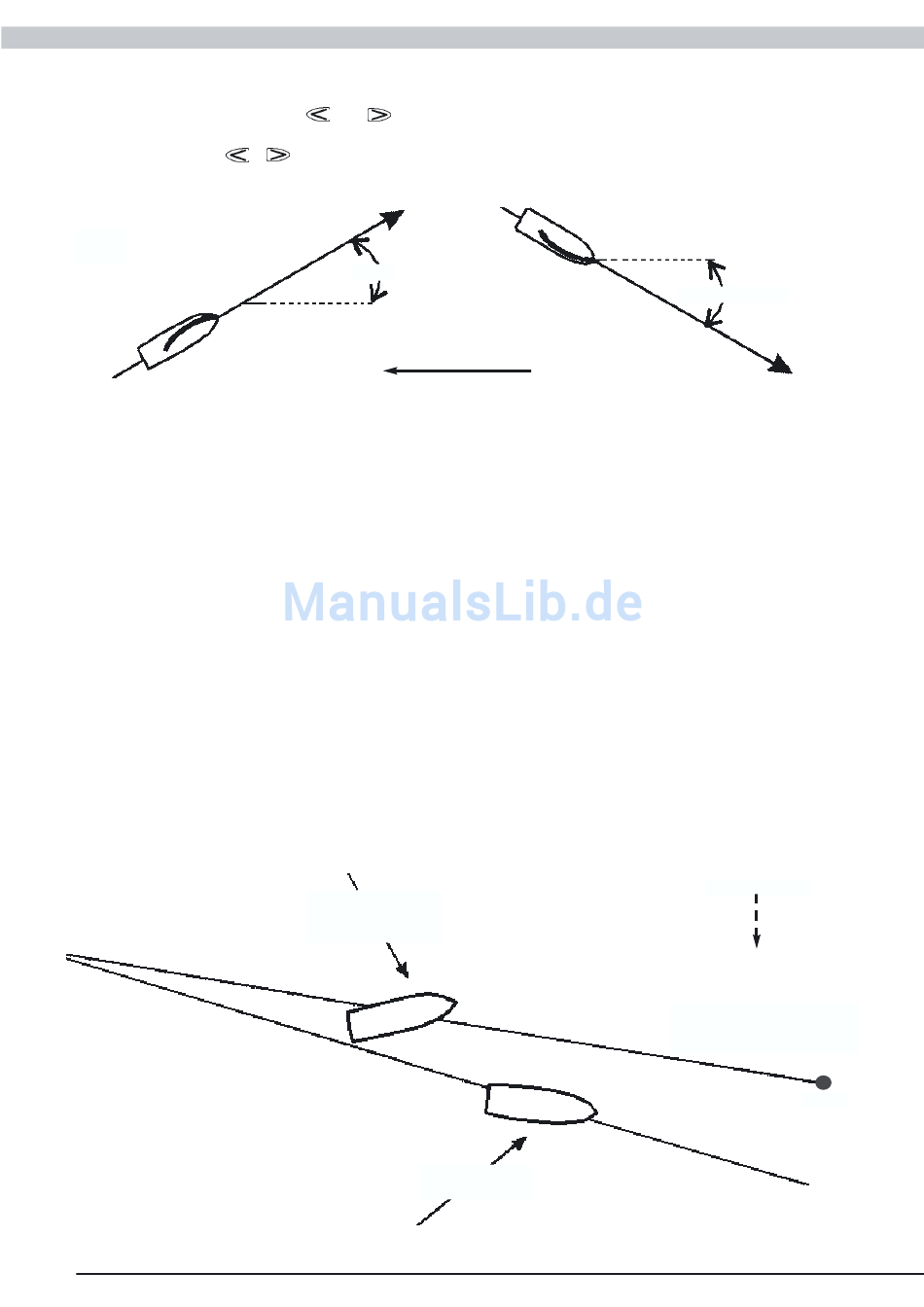

Angle
Direction of Wind
Vessel may establish
a 'crab' angle under
Navigator control
Vessel maintains
constant heading
After Tack:
The same Angle
Wind and Tide
Vessel arriving at target,
automatically compensating
for Wind and Tide
Target
