Lighting
Press the INFO key repeatedly until "L L I I G G H H T T H H i i " or "L L I I G G H H T T l l o o " is displayed. Press the
Lighting setting between high and low.

Rudder Position Indicator

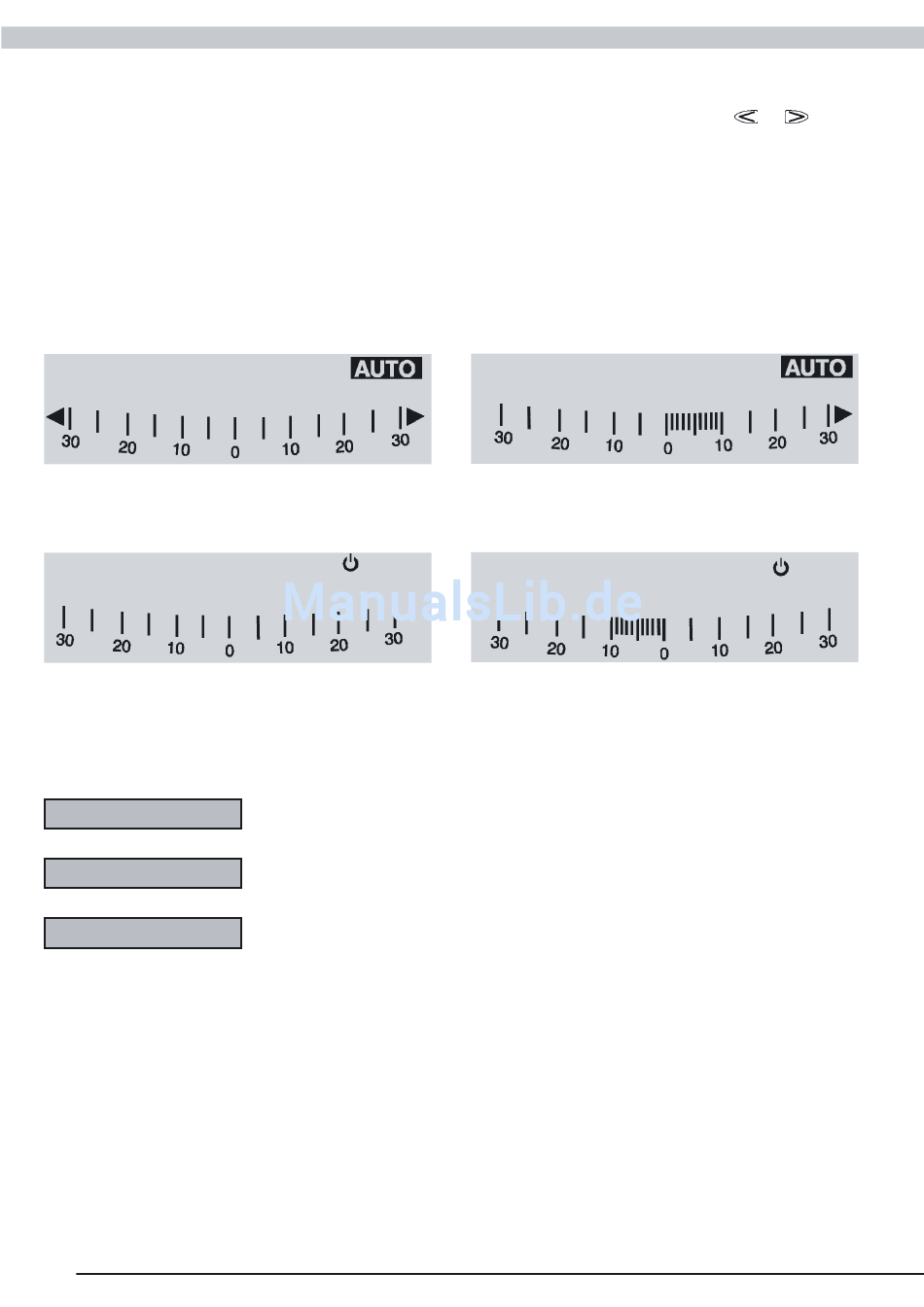

The LCD displays a bar graph of the rudder position, up to 30º. The graph shows the rudder position in 5º
steps from midships.
In Auto mode, when the pilot is controlling rudder movement, two black arrows are used to indicate steering
motor activity. Both arrows are displayed when the rudder is not active. One arrow indicates that the rudder
is being driven in that direction.
Rudder amidships
Standby mode:
Rudder midships

Digital Rudder position display

This digital readout gives rudder position in 1º steps and can be added to the displayed Information list.
rud <00>
rud <05
rud 37>
44
LIGHTNING / RUDDER POSITION
Rudder is at midships
Rudder is 5 degrees to Port
Rudder is 37 degrees to Starboard
or key to change the
10º of rudder to starboard,
rudder still moving to starboard.
10º of rudder to port
