Inhaltsverzeichnis
Werbung

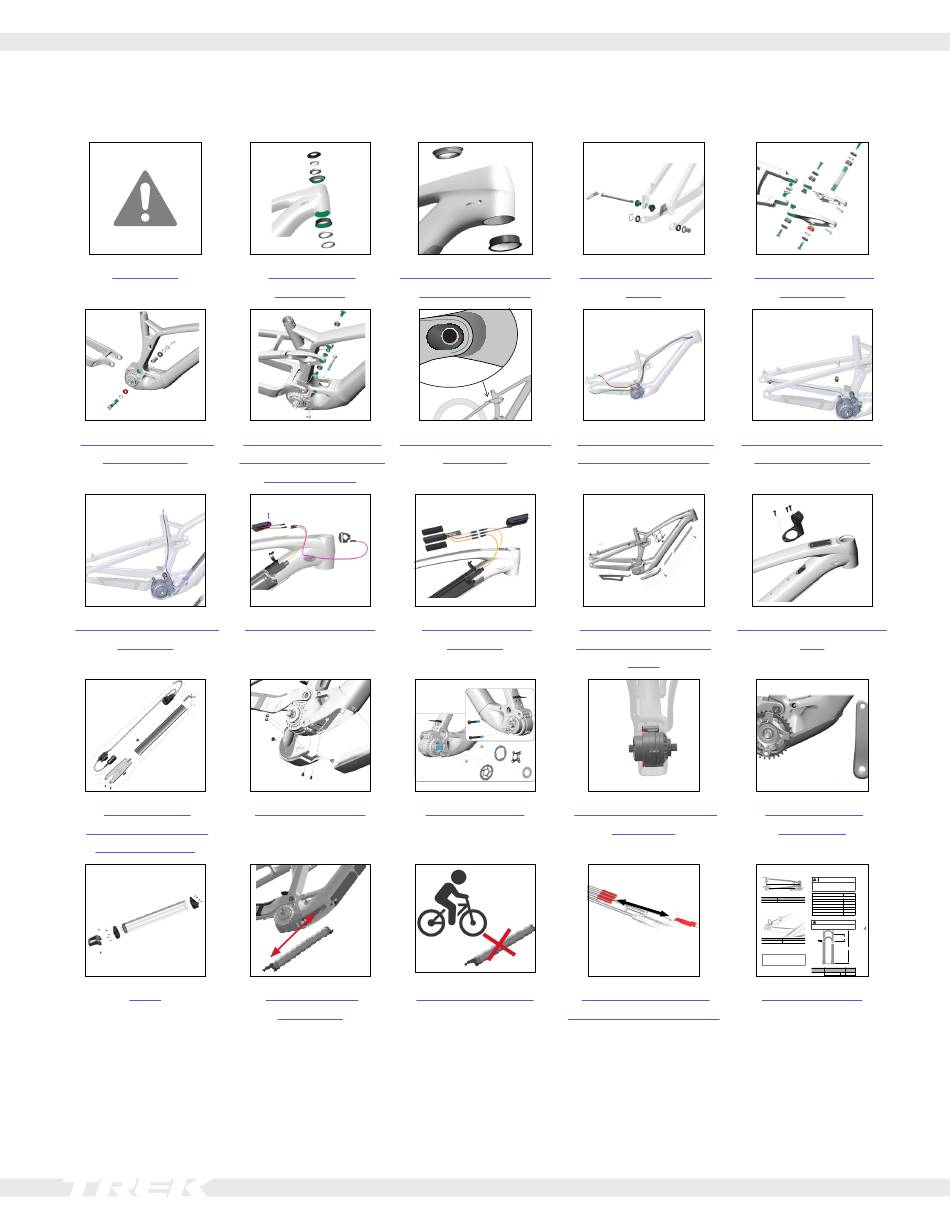

Inhalt
Befestigungsteile und
Akku
Verstellbarer
Geometrie anpassen -
Steuersatz
Steuersatzwinkel
Hinterbaudämpfer -
Geometrie anpassen -
Abmessungen
Remote und Display
AXS-Schaltkabel
Copyright 2023 Trek Bicycle Corporation Alle Rechte vorbehalten
Active Braking Pivot
Bremsleitungen und
Mino Link
Schaltzüge verlegen
Rahmenschutz und
verlegen
Trinkflaschenbefesti-
Antriebseinheit
Ausgleichsschrauben
2024 Alloy Fuel EXe
Umlenkhebel und
(ABP)
Sitzstrebe
Geschwindigkeitssen-
sorkabel verlegen
Ladeanschlussabdeck-
gung
Kurbelgarnitur
einstellen
montieren
Specifications
Chainline (1x only)
55mm
Chainring (1x only)
Minimum
Maximum
30T
34T Round
Oval rings of any size are not recommended as they will
affect motor performance.
Rear brake mount
Minimum
Maximum
180mm, direct mount
Adaptable to 203mm
Maximum tire size
29" x 2.5"
Notice: Measurements of actual tires may vary. Always
verify there is sufficient clearance between the tire and
the frame. Improper tire size could damage the bicycle
frame. Trek recommends 6mm clearance above and on
the sides of the tire.
TK_Fuel_Ex-e_ServiceManual_MY23.indd 18
TK_Fuel_Ex-e_ServiceManual_MY23.indd 18
ung
2023 Fuel Exe
Seat post
WARNING
Always follow the seatpost manufacturer's minimum
insertion recommendation. Failure to follow the recom-
mendation could cause damage to the seatpost and
result in injury to the rider.
Minimum insertion
75mm
Maximum insertion
Small
190mm
Medium
225mm
Large
250mm
Extra Large
285mm
Seat tube inside diameter
22.5mm
Seat tube post clamp outer diameter
39.7mm
Fork
WARNING
Exceeding the recommended maximum fork length could
damage the bicycle and result in injury to the rider.
Travel
Sag
Axle to Crown
Frame/Size
Axle to Crown (mm)
Travel (mm)
S, M, ML, L, XL Recommended
557
150
Maximum
567
160
Recommended sag: Refer to the suspension setup card
included with your bike or the suspension calculator at
Trekbikes.com/suspension-calculator.
18
4/11/2022 4:17:10 PM
4/11/2022 4:17:10 PM
