Components in Detail: Mandrels / Stoppers
Mounting on Bending Plate
Necessary parts:
2x carriage bolts M5x20
2x washers 5/10
2x knurled nuts M5 12/10
Fasten all pieces with 2 screws for adequate
stability.
Select the correct version, to correspond with
the diameter of your selected tube
48

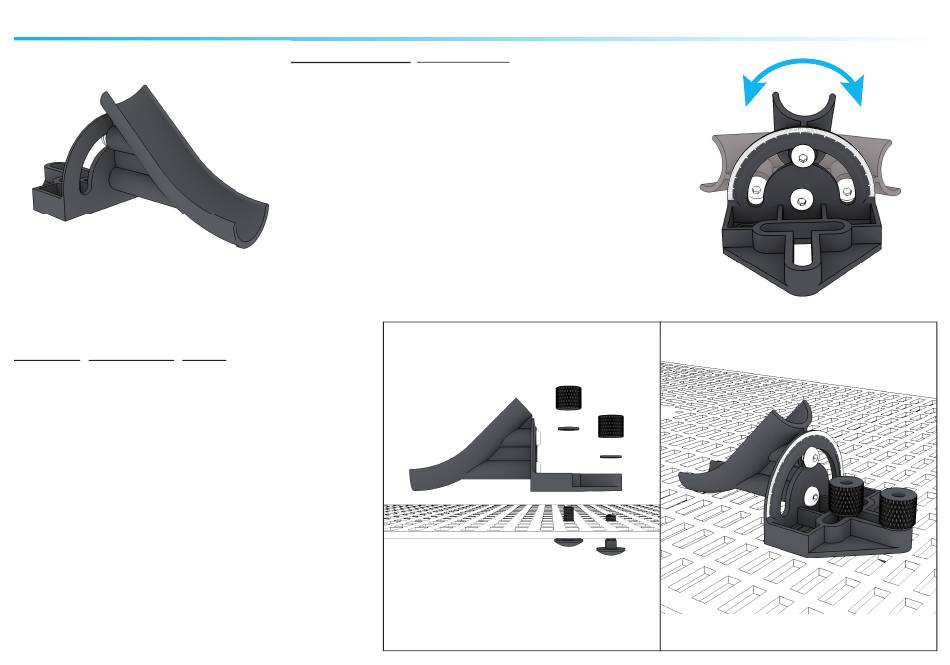

45° Mandrel
(in two sizes)
2 versions for 3-dimensional bending, for:
Tubes with 13 or 12 mm Ø
Tubes with 16 mm Ø
The horizontal angle is freely adjustable over
180°. To adjust, loosen the back M4 screws
using the included hexagon socket and set the
desired angle with the 1° scale. Finally, tighten
the screws again.
