Electrical Wiring - Wallbox POWER BOOST Bedienungsanleitung

Temco
SPM1-100-AC
1
RS485 NETWORK
CURRENT
DIRECTION
CABLE
2 3 4 5 6
12 V
GND

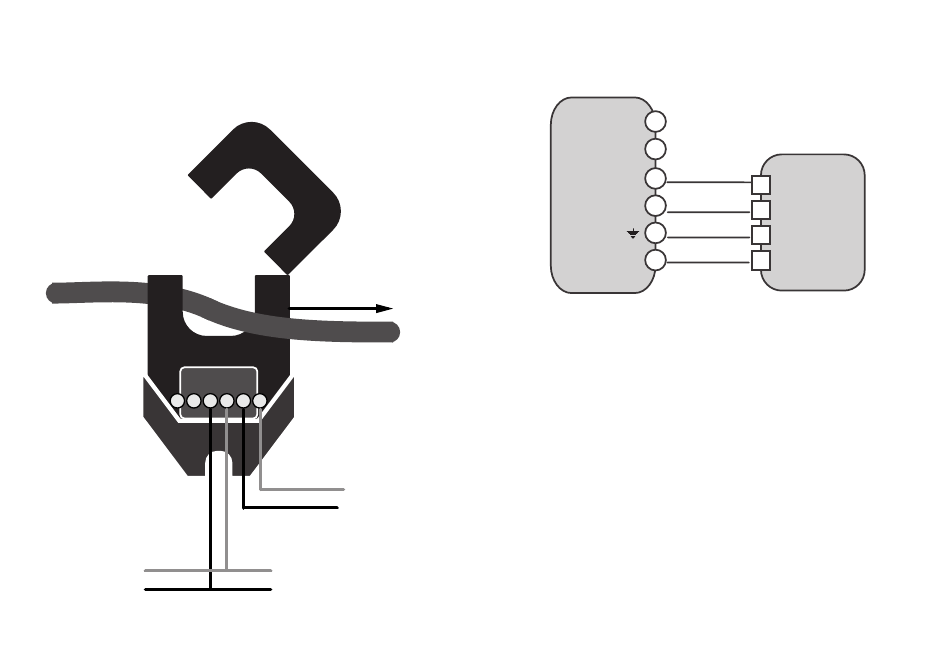

Electrical Wiring

SPM1-100-AC
Voltage + 1
Voltage -
2
RS485 - 3
RS485 +
4
Power 5
Power +
6
Wallbox
D- (RS485B)
D+ (RS485A)
GND
12V
