Helo Digi I Produkthandbuch Seite 35

Digi 1 - Produkthandbuch

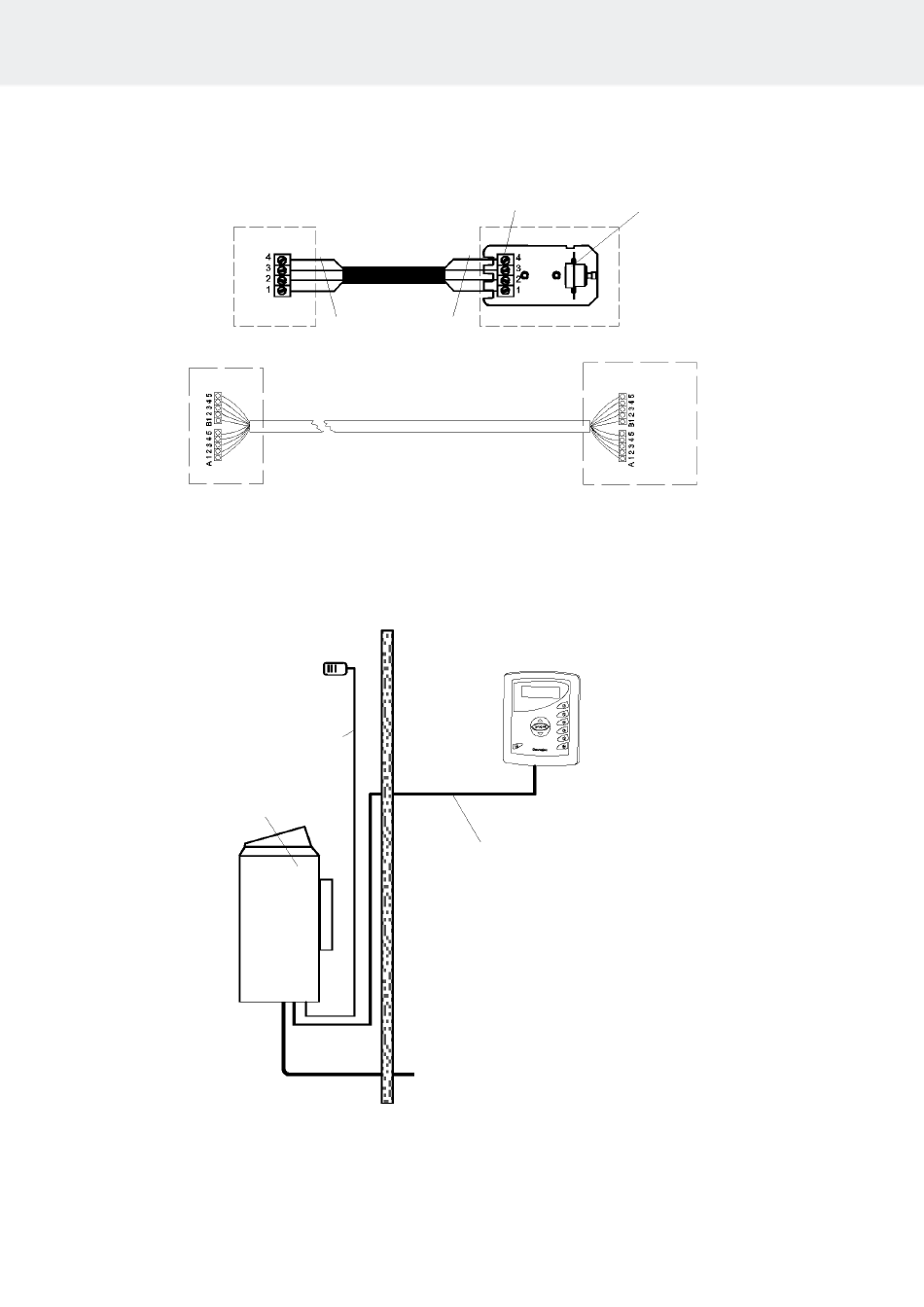

Principle image
Heater
A1 Valk Vit
A2 Ruskea Brun
A3 Vihreä Grön
A4 Kelt Gul
A5 Harm Grå
Sensor OLET 19
Saun heater
Sensor cable
1 Blue
2 White
3 Red
4 Yellow
White Weiss
Brown Braun
Green Grün
Yellow Gelb
Grey Grau
Silicone 4 x 0,25
Connector strip
1 Blue
2 White
3 Red
4 Yellow
B1 Rosa Ljusröd
B2 Sin Blå
B3 Pun Röd
B4 Musta Svart
B5 Violetti Violett
Control panel
LiYY 10 x 0,25
Input 400 - 415V 3N~
Limiter
Pink Rose
Blue Blau
Red Rot
Black Schwarz
Violet Violett
7
