Slope function up to max. 2°
Activation of the slope function deactivates the automatic sensor. Press and
hold button 14 (slope function ON) until the slope function LED (18) flashes
rapidly. M otordriven adjustment of the slope can now be carried out. Press and
hold the H or V but ton to adjust slope. When the lasers blink, the maximum
slope range has been reached. But ton 14 (pressed briefly) sw itches bet w een
axes. The slope function LED (18) flashes slow ly.
For the slope function, laser lines are no longer aligned to the horizontal
or vertical plane. This is a specific peculiarity of adjusted laser lines. To
!
reinstate horizontal or vertical levelling, deactivate the slope function.
To do so, sw itch the device off and back on or keep button 14 (slope
function ON) pressed until the laser lines move automatically.
6

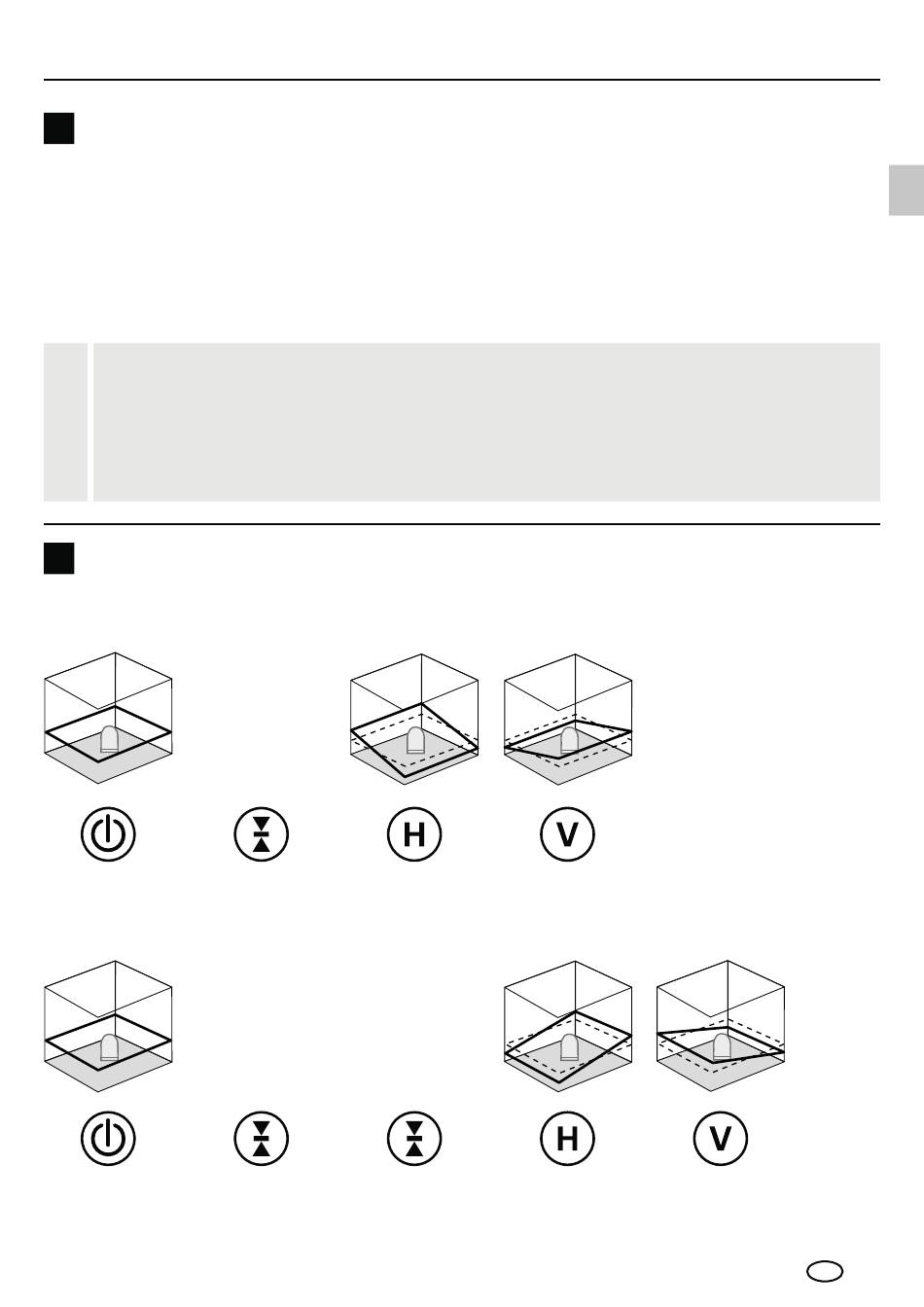

Horizontal levelling adjustment up to a max. of 2° (X, Y axis)
Adjustment of the X axis up to a max. of 2°
The slope function LED (18) flashes rapidly.
Adjustment of the Y axis up to a max. of 2°
The slope function LED (18) flashes slow ly.
3 sec.
3 sec. 1 sec.
