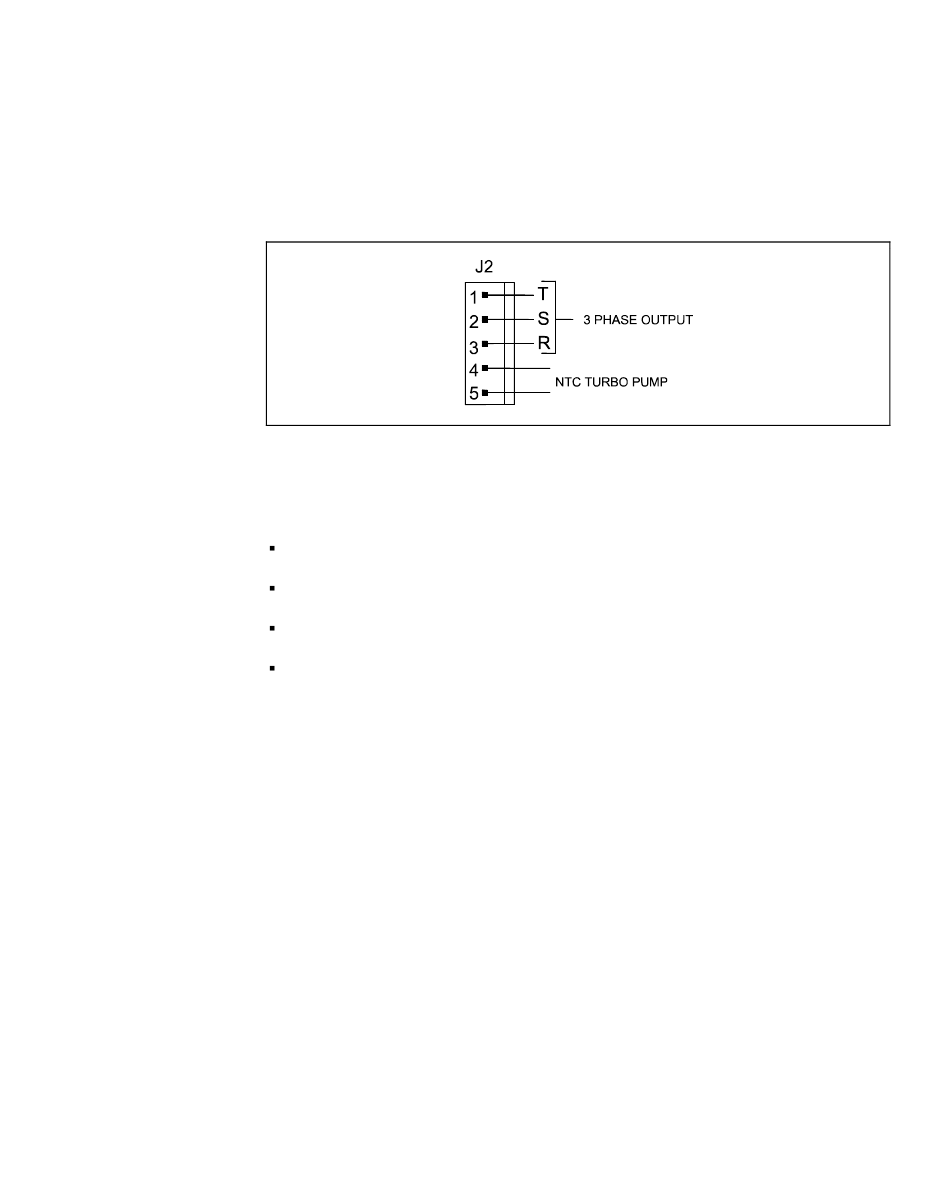

J2 Connector

Figure 8
The signals of J2 connector are the following:
Turbo-V 81 PCB 24 Vdc Controller User Manual / 87-900-121-01 (D)
J2 – Connector to pump
Pin 1 68 Vac 3-phase output to pump motor stator (phase T).
Pin 2 68 Vac 3-phase output to. pump motor stator (phase S).
Pin 3 68 Vac 3-phase output to pump motor stator (phase R).
Pins 5/4 Pump temperature sensor.
