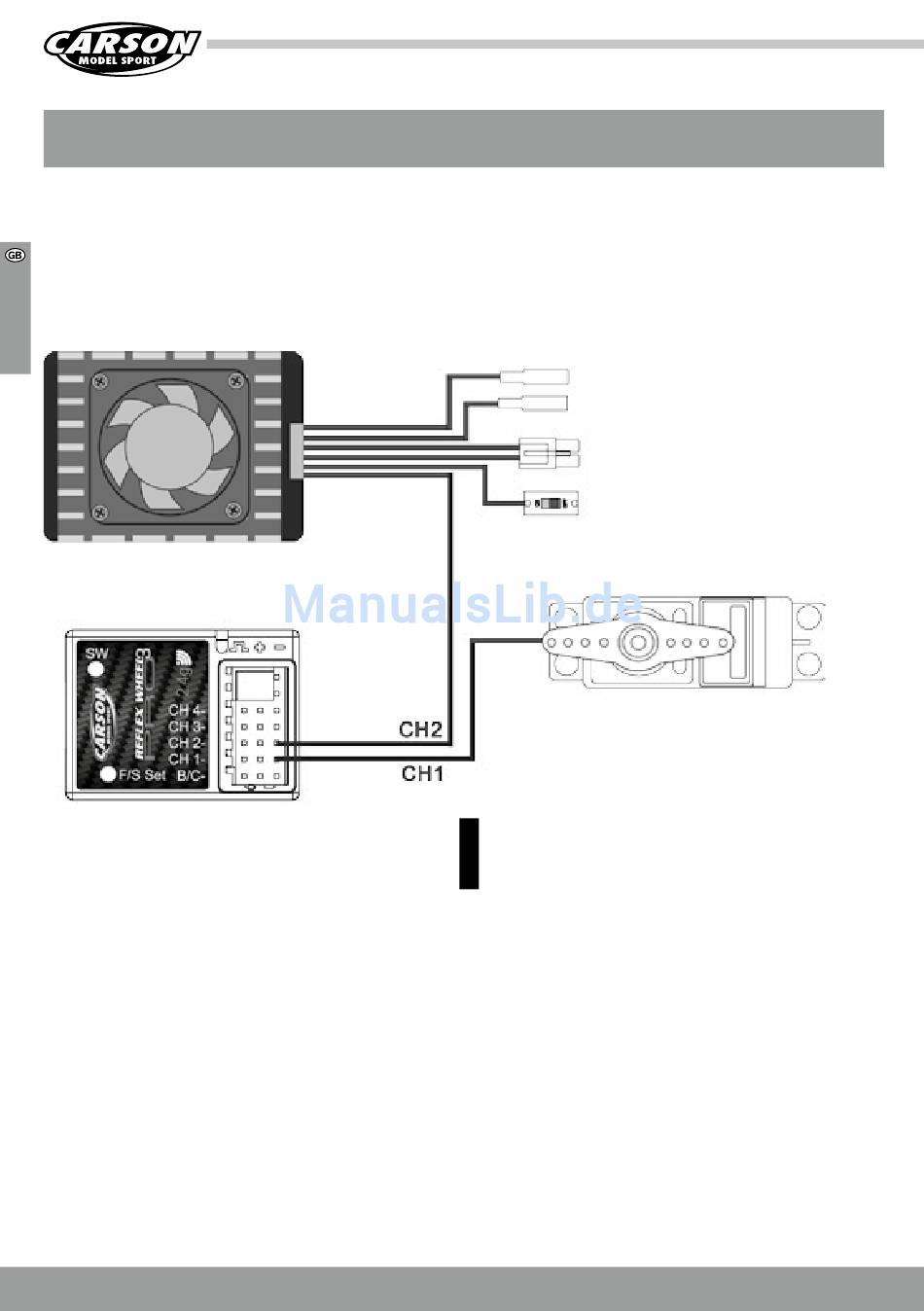

Connections to Receiver for Reflex Wheel PRo3 + Reflex
Wheel PRo3 LCD Version
Battery eliminator is installed in the receiver circuitry.
NiMH battery from 6 V to 11 V can be used for the receiver. Batteries
of higher voltage may damage the receiver and servos.
Electronic speed controller
(not included)
Receiver
Do not connect a separate power supply
to the receiver!
26
AttENtION!
If the input voltage is above 6 V, appropriate
high-current servos must be used!
Connector motor
Connector battery
Power switch On-/Off
Steering servo
Channel 1
(not included)
AttENtION
Make sure that male and female
connectors have the correct polarity!
