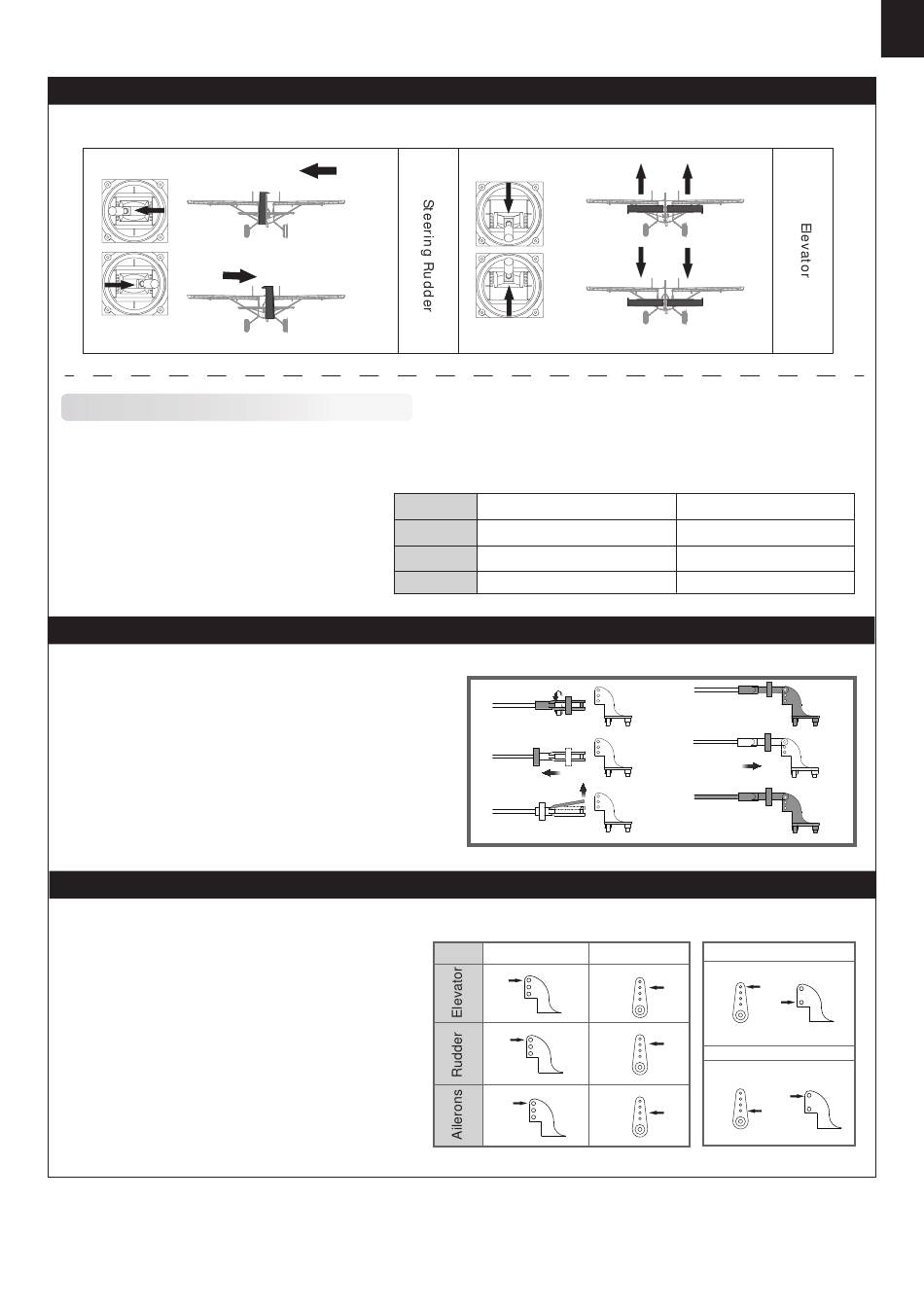

Control Throws; Clevis Installation; Control Horn And Servo Arm Settings - FMS 1500MM MAULE Bedienungsanleitung

Get your model ready to fly
Steer left
Steer right

Control throws

The suggested control throw setting for this airplane are as follows (dual rate setting):
Tips: On the first flight, fly the model in low rate.
The first time you use high rates,be sure to fly at
low to medium speeds. High rate, as listed, is
only for EXTREME maneuvering.

Clevis installation

1.Pull the tube from the clevis to the linkage.
2.Carefully spread the clevis, then insert the clevis pin into the
desired hole in the control horn.
3.Move the tube to hold the clevis on the control horn.

Control horn and servo arm settings

The table shows the factory settings for the control horns
and servo arms. Fly the aircraft at the factory settings
before making changes.
After flying, you may choose to adjust the linkage positions
for the desired control response.
Climb
Descend
High Rate
Elevator
18mm up / dowm
Aileron
16mm up / dowm
Rudder
28mm left / right
a.
b.
c.
Horns
9
Low Rate
14mm up / dowm
12mm up / dowm
20mm left / right
d.
e.
f.
More control throw
Arms
Less control throw
