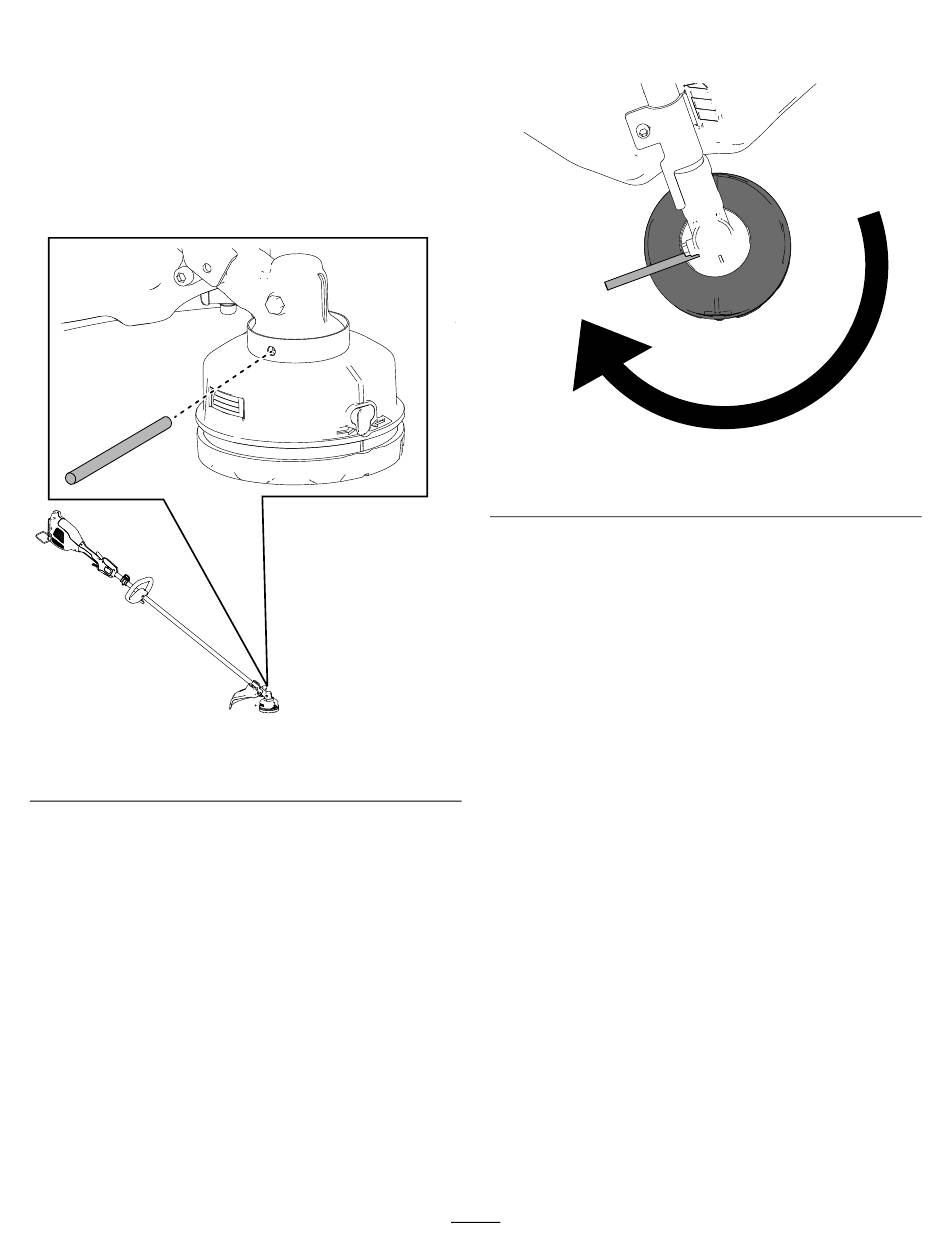

Replacing the Trimmer
Head
1. Remove the battery pack from the trimmer.
2. Align the hole in the cup plate with the hole in
the trimmer gearcase
3. Insert the included metal rod through the cup
plate and into the hole in the trimmer gearcase
to secure the trimmer head
Figure 16
Some parts not shown for clarity
(Figure 16).
(Figure 16).
g378077
4. With the metal rod securing the trimmer head,
rotate the trimmer head clockwise to remove it
from the threaded gearcase post
Some parts not shown for clarity
5. To install the new trimmer head, rotate it
counterclockwise onto the gearcase post while
securing the cup plate using the metal rod.
15
(Figure
Figure 17
17).
