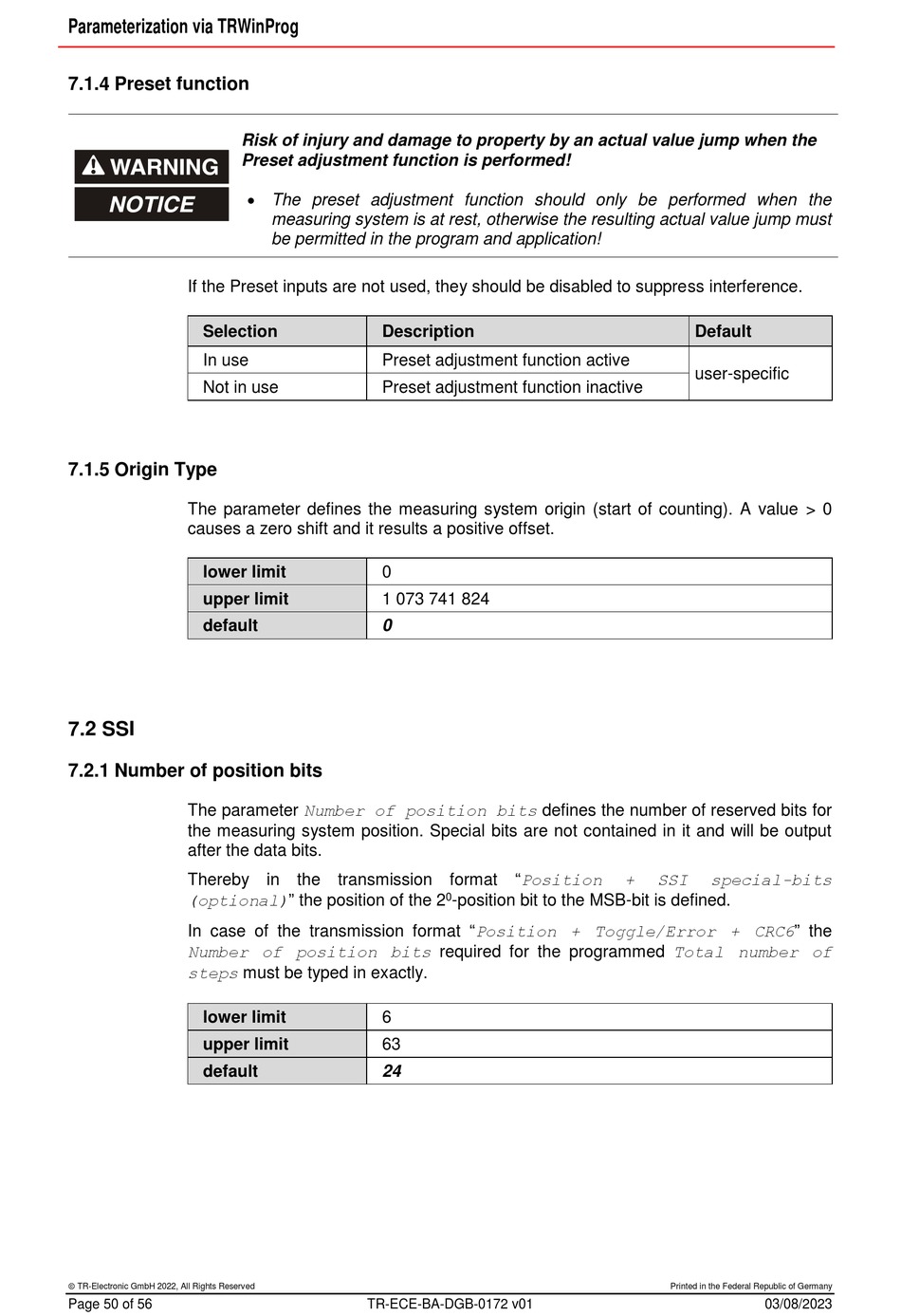

Parameterization via TRWinProg

7.1.4 Preset function

If the Preset inputs are not used, they should be disabled to suppress interference.
Selection
In use
Not in use

7.1.5 Origin Type

The parameter defines the measuring system origin (start of counting). A value > 0
causes a zero shift and it results a positive offset.
lower limit
upper limit
default

7.2 SSI

7.2.1 Number of position bits

The parameter Number of position bits defines the number of reserved bits for
the measuring system position. Special bits are not contained in it and will be output
after the data bits.
Thereby in the transmission format
(optional)" the position of the 2
In case of the transmission format "Position + Toggle/Error + CRC6" the
Number of position bits required for the programmed Total number of
steps must be typed in exactly.
lower limit
upper limit
default
