DFI PM11-EC Benutzerhandbuch Seite 10

1
Quick Setup Guide

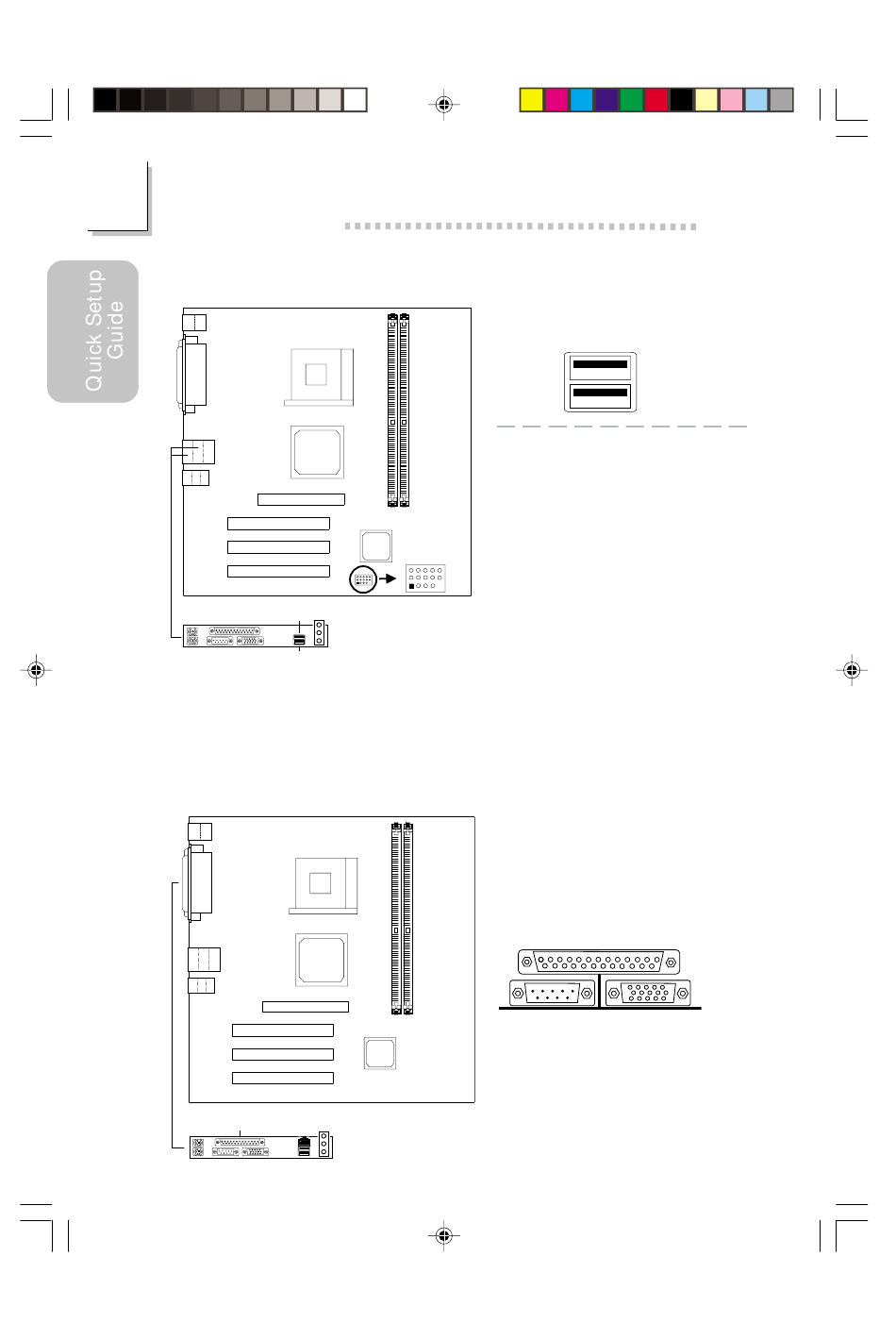

1.3.3 Universal Serial Bus Ports
CN2
The Wake-On-USB Keyboard/Mouse function, when enabled, allows a USB
keyboard or USB mouse to wake up a system that is in the S3 (STR -
Suspend To RAM) state.
1.3.4 Parallel Port
J4
Parallel
(Burgundy)
10
USB 3 & 4
(J17)
15
11
1 5
USB 2
(Black)
USB 1
(Black)
Onboard USB Ports
(USB1 and USB 2)
Additional USB Ports
(USB 3 and USB 4)
1 VCC 6 VCC
2 UP5- 7 UP6-
3 UP5+ 8 UP6+
4 Ground 9 Ground
5 Key 1 0 N. C.
Parallel Port
1 1 Ground
1 2 Ground
1 3 UP5+
1 4 UP5-
1 5 VCC
