Operation
5.2

Setting and operating the WEZ-2

•
First measure the thickness of the vertical long leg of the object to be gripped (L-stone).
•

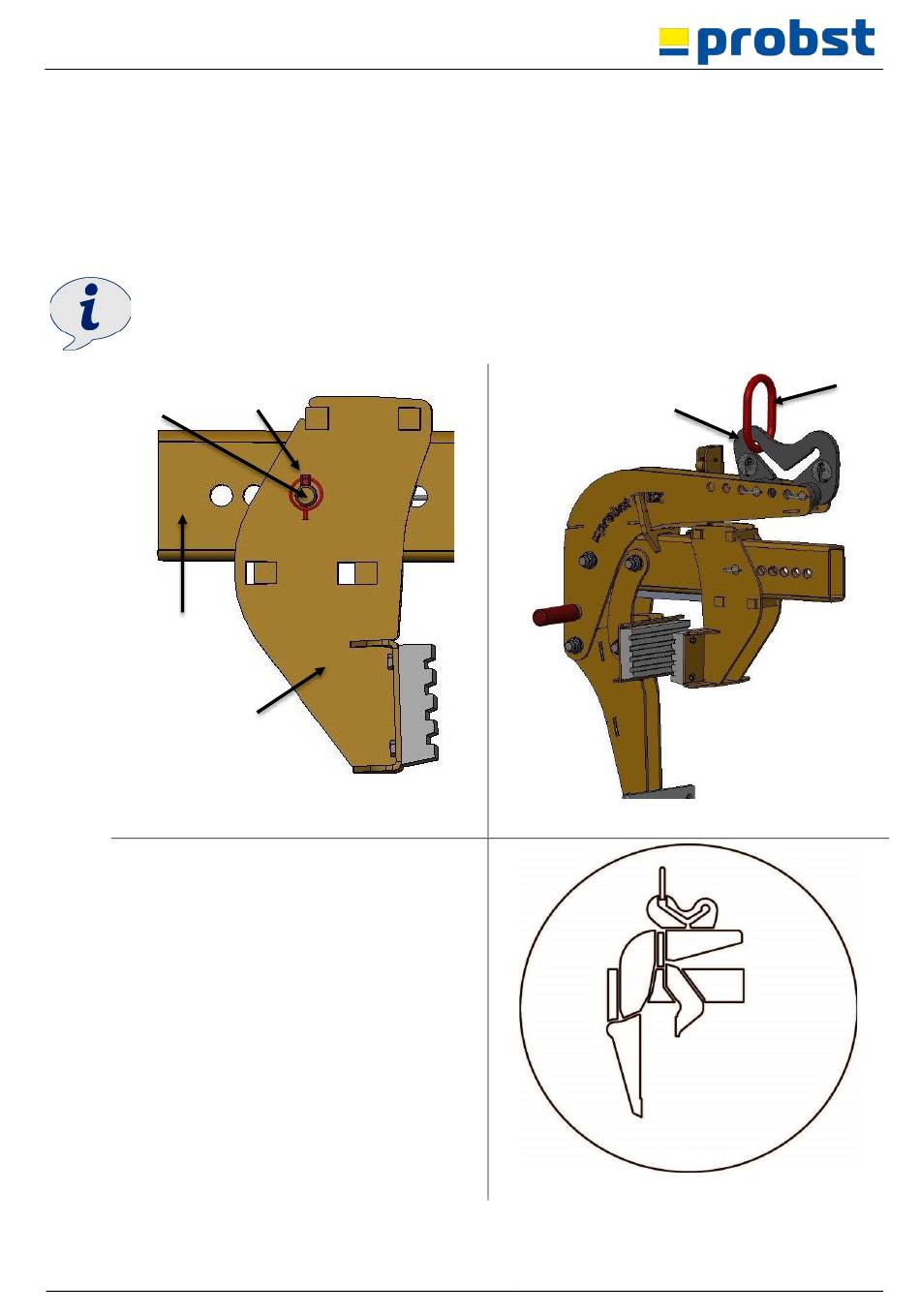

Then adjust the opened (locked) implement (WEZ) with the movable gripping jaws (9) on the
crossbar with adjustment holes (10) to the smallest possible gripping width.
•
To do this, open the lynch pin (A) and then remove the pin (B) and, after adjusting the gripping
range, reinsert it and secure it with the lynch pin (A). → see picture A
•
Before lifting the bare implement (WEZ without load), make sure that the automatic changing device
(4) is engaged and that the implement thus remains open.
•
IMPORTANT: the suspension eye (1) must be in the rear position (see Fig. B1 "empty stroke") of
the suspension lug (2). → Picture B/Picture B1
B
10
53100347
A
9
Picture A
Picture B1 (Position idle stroke)
17 / 25
2
Picture B
1
