Fireplace Installation

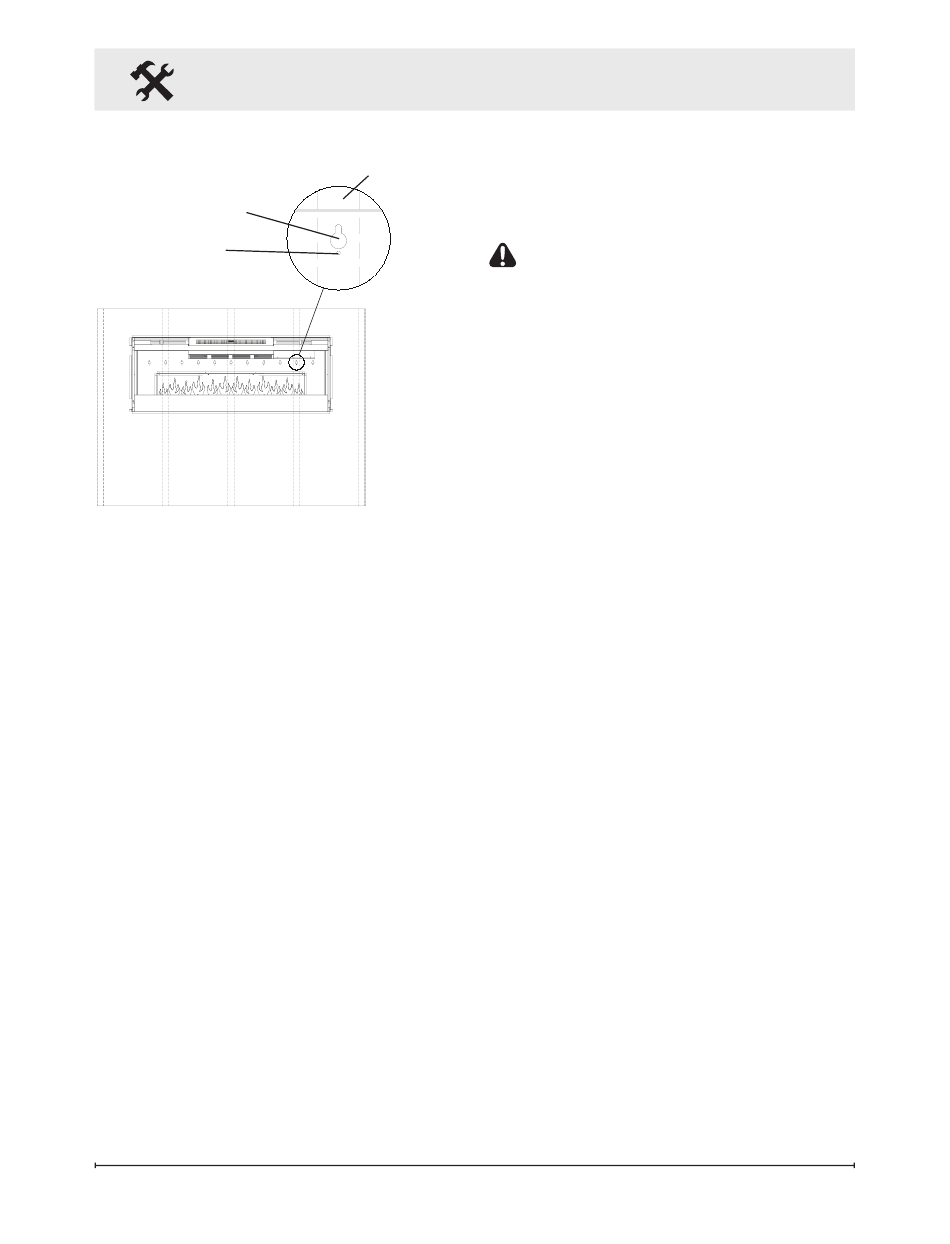

Figure 3
Key-hole
Permanent
mounting hole
•
Lay fireplace on its back.
•
Remove two (2) Phillips
screws from each of the two
(2) glass brackets (Figure 2).
•
Remove glass brackets.
•
With one hand keeping
pressure on the partially
reflective glass, tilt the
fireplace upright and slightly
forward to allow the partially
reflective glass to fall out of
the inside framing.
•
Remove partially reflective
glass from fireplace.
4.
Position the fireplace on a wall
at the position where it will be
mounted (Figure 3). Use a
bubble level (one is supplied)
to ensure that fireplace is level
on the wall.
All manuals and user guides at all-guides.com
5.
Wall stud
6.
7.
8.
9.
10.
11.
Mark the location of four (4)
screw locations on the wall
(through key-holes).
CAUTION: If installing unit on
a wall that is constructed of
drywall ensure that appropriate
wall anchors are used and at
least one is located into a stud.
Remove fireplace from wall
and store in a safe place
away from traffic.
Screw all four (4) supplied #8,
3.8 cm square head mounting
screws and washers into
the wall and/or wall anchors
leaving 6.5 mm of thread.
Align chosen key-holes with
screws and hang fireplace
on the wall. Screw heads
and washers will fit through
key-holes and fireplace will
slide down into place (screws
will slide into narrow part of
key-holes).
Tighten all four (4) mounting
screws down on fireplace
chassis.
Screw the two (2) supplied
#8 square head screws
through two of the permanent
mounting holes which align
with a wall stud.
Carefully replace and install
9
