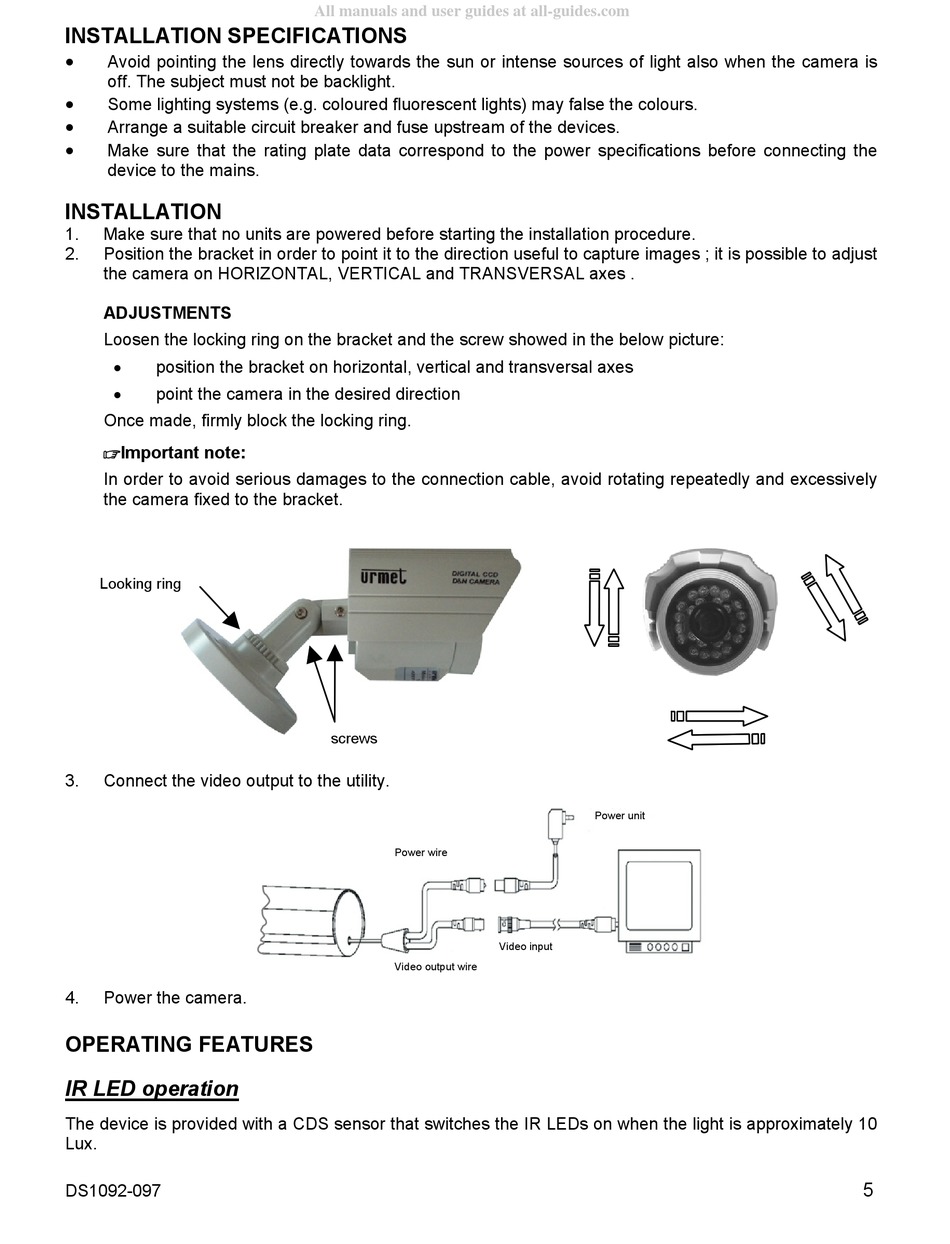

INSTALLATION SPECIFICATIONS


Avoid pointing the lens directly towards the sun or intense sources of light also when the camera is
off. The subject must not be backlight.

Some lighting systems (e.g. coloured fluorescent lights) may false the colours.

Arrange a suitable circuit breaker and fuse upstream of the devices.

Make sure that the rating plate data correspond to the power specifications before connecting the
device to the mains.
INSTALLATION
1. Make sure that no units are powered before starting the installation procedure.
2. Position the bracket in order to point it to the direction useful to capture images ; it is possible to adjust
the camera on HORIZONTAL, VERTICAL and TRANSVERSAL axes .
ADJUSTMENTS
Loosen the locking ring on the bracket and the screw showed in the below picture:

position the bracket on horizontal, vertical and transversal axes

point the camera in the desired direction
Once made, firmly block the locking ring.
Important note:
In order to avoid serious damages to the connection cable, avoid rotating repeatedly and excessively
the camera fixed to the bracket.
Looking ring
3. Connect the video output to the utility.
4. Power the camera.

OPERATING FEATURES

IR LED operation
The device is provided with a CDS sensor that switches the IR LEDs on when the light is approximately 10
Lux.
DS1092-097
All manuals and user guides at all-guides.com
screws
Power wire
Video output wire
Power unit
Video input
