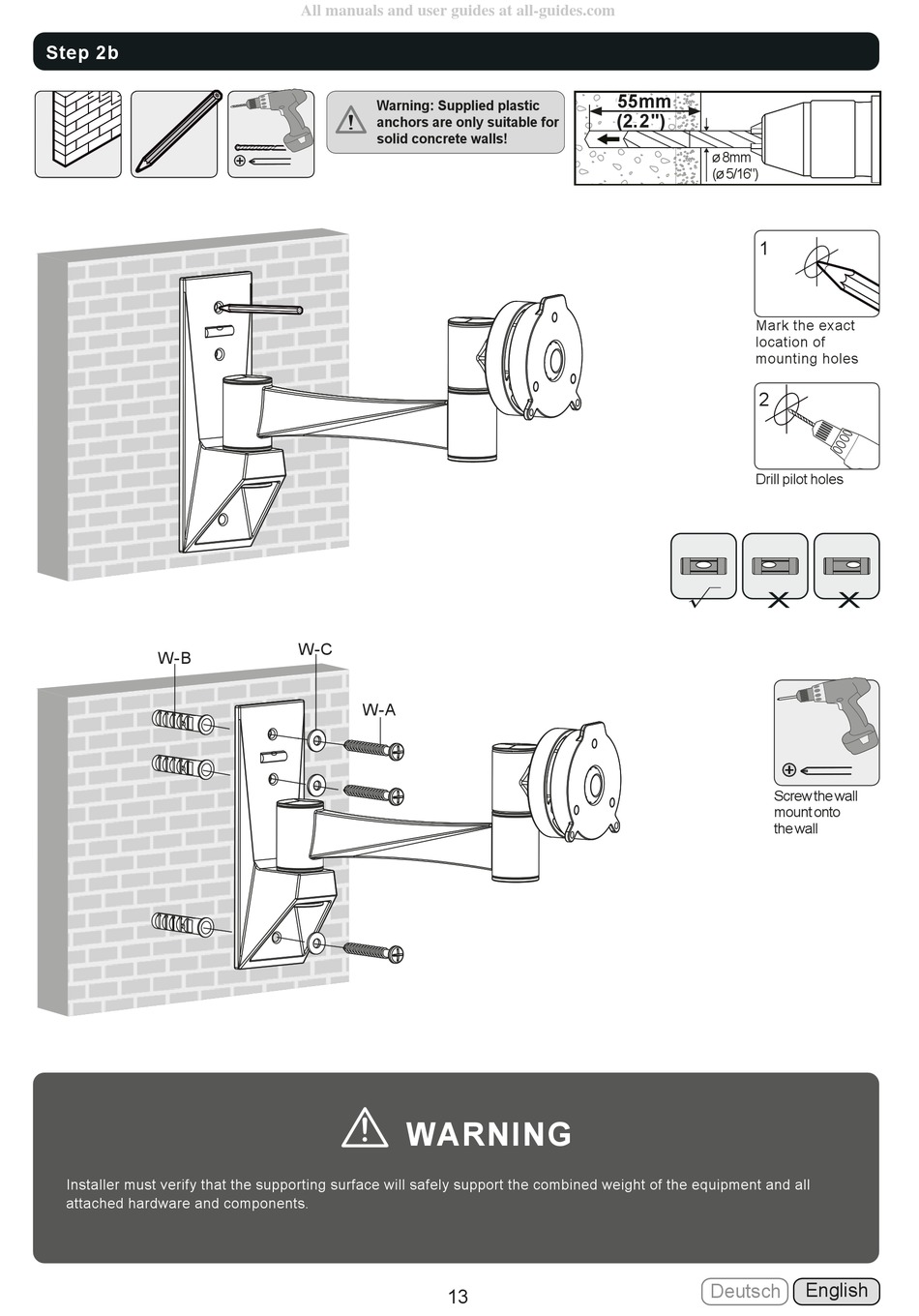

Step 2b
W-B
Installer must verify that the supporting surface will safely support the combined weight of the equipment and all
attached hardware and components.
All manuals and user guides at all-guides.com
Warning: Supplied plastic
!
anchors are only suitable for
solid concrete walls!
W-C
W-A
WARNING
13
55mm
60mm
(2.2")
(2.4")
ø 8mm
(ø 5/16")
1
Mark the exact
location of
mounting holes
2
Drill pilot holes
X
√
Screw the wall
mount onto
the wall
