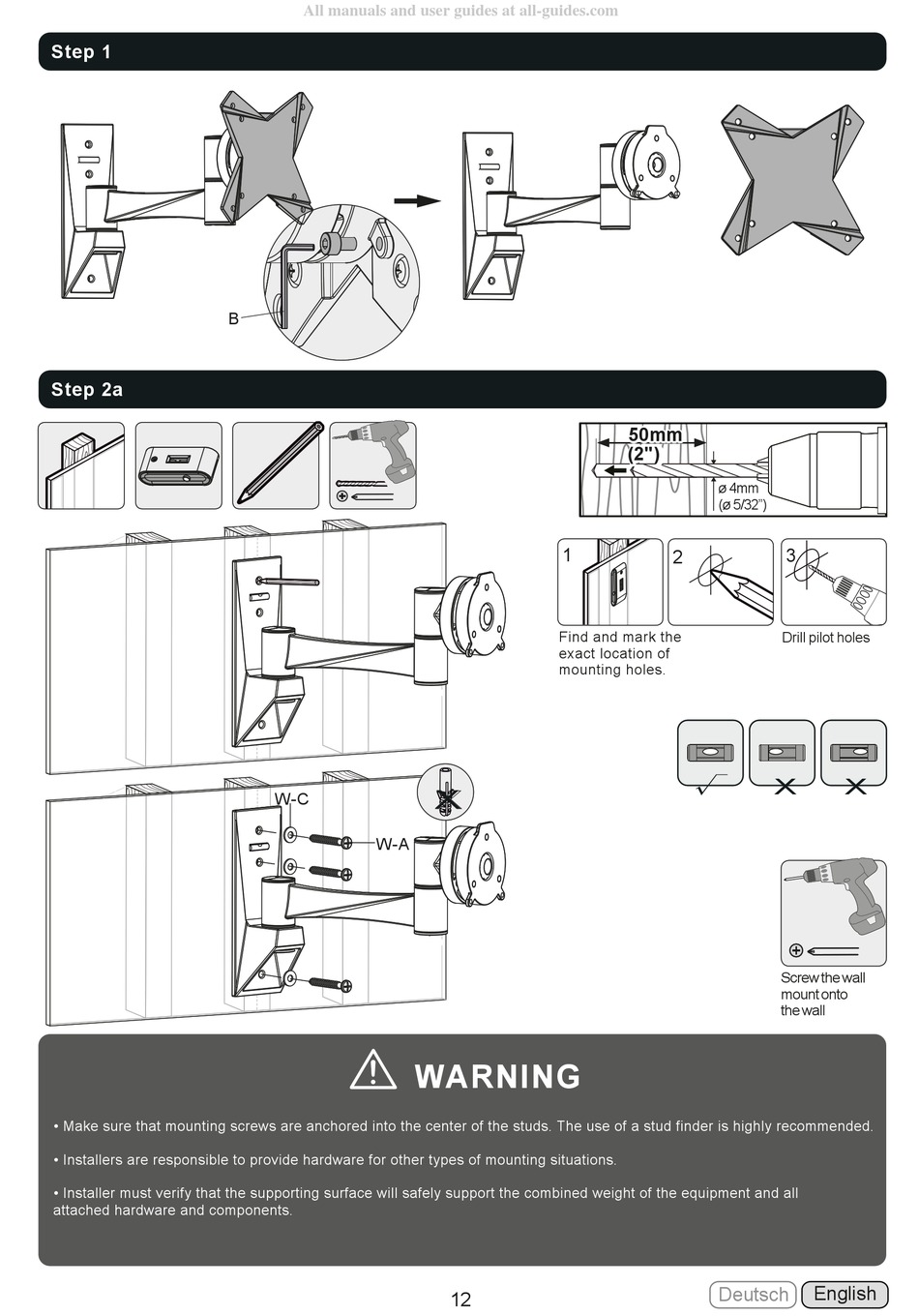

Step 1
Step 2a
• Make sure that mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installer must verify that the supporting surface will safely support the combined weight of the equipment and all
attached hardware and components.
All manuals and user guides at all-guides.com
B
W-C
W-A
1
Find and mark the
exact location of
mounting holes.
X
WARNING
12
50mm
50mm
(2")
(2")
ø 4mm
(ø 5/32")
3
2
Drill pilot holes
X
√
Screw the wall
mount onto
the wall
Deutsch
X
English
