ENGLISH

MACHINE DESCRIPTION

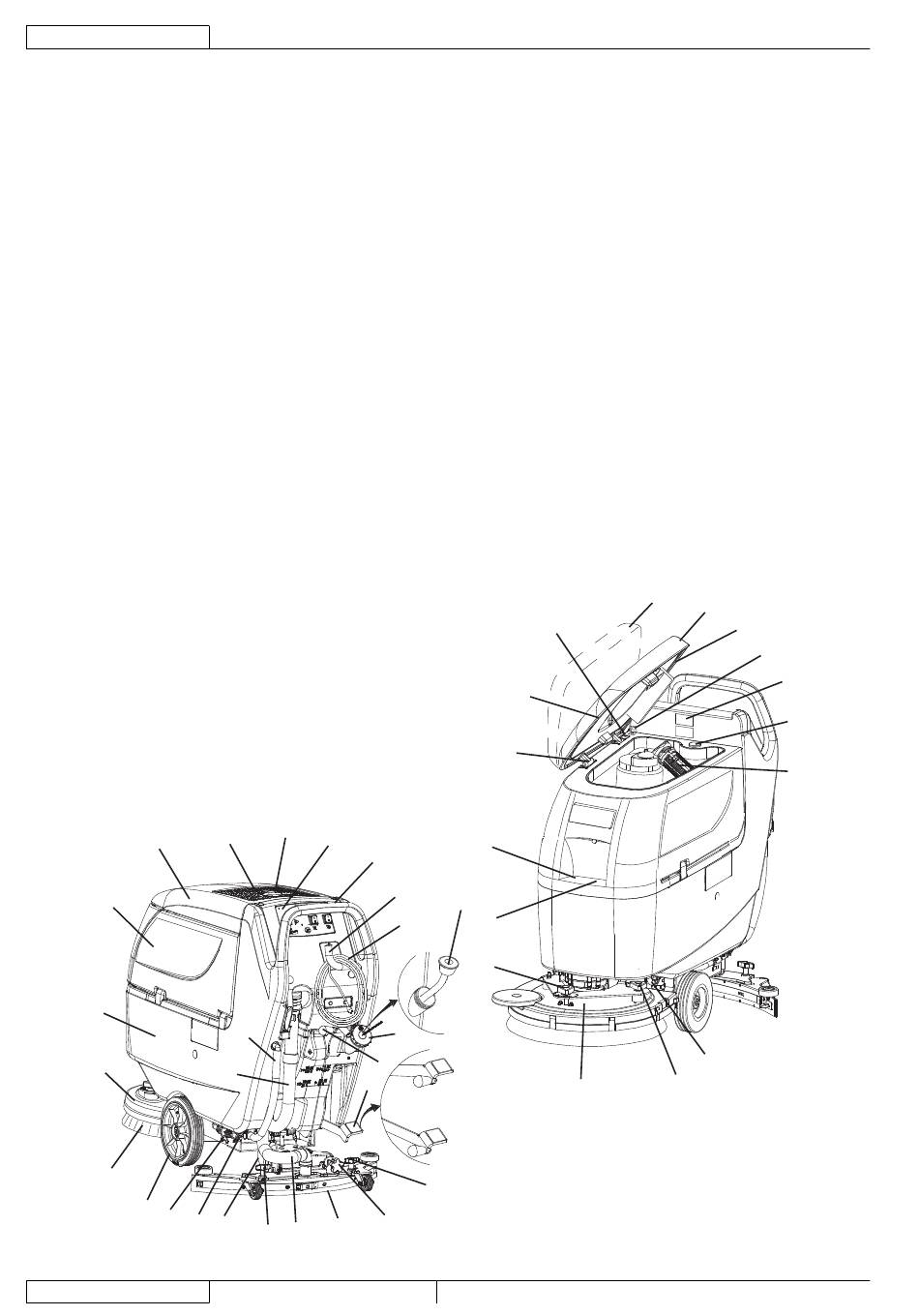

MACHINE STRUCTURE

1.
Control panel
2.
Handlebar
3.
Power supply cable
4.
Power supply cable holder
5.
Solution rear fi ller neck
6.
Water removable fi ller hose (optional)
7.
Squeegee lifting/lowering lever
8.
Deck lifting/lowering pedal
8a.
Pedal position when deck is lifted
8b.
Pedal position when deck is lowered
9.
Rear steering wheel
10.
Front wheels on fi xed axle
11.
Squeegee vacuum hose
12.
Recovery water drain hose
13.
Solution drain and level check hose
14.
Brush/pad-holder deck
15.
Brush/pad-holder
16.
Solution tank
17.
Recovery tank
18.
Recovery tank cover
19.
Can holder
20.
Document fastener (optional)
18
17
16
14
15
10
24
25
6
USER MANUAL
19
20
1
2
13
7
12
8
13
23
21
11
22
909 6754 000(3)2010-03 A
21.
Squeegee
22.
Squeegee mounting handwheels
23.
Squeegee balance adjusting handwheel
24.
Solution fi lter
25.
Solution tap
26a.
Recovery tank cover (opened to be cleaned)
26b.
Recovery tank cover (completely opened)
27.
Tank cover gasket
28.
Cover movable retaining plate
29.
Cover fi xed retaining plate
30.
Compensation hole
31.
Serial number plate/technical data/conformity certifi cation
32.
Plug for squeegee vacuum hose cleaning
33.
Vacuum grid with automatic shut-off fl oat
34.
Solution front fi ller neck
35.
Foam fi lter
36.
Recovery tank retaining plate
37.
Machine straight forward movement adjusting handwheel
38.
Machine forward speed adjusting handwheel
39.
Solenoid valve
29
27
28
34
4
6
35
3
37
5
8b
14
8a
22
CA 551
26b
26a
30
36
31
32
33
39
38
S311301
