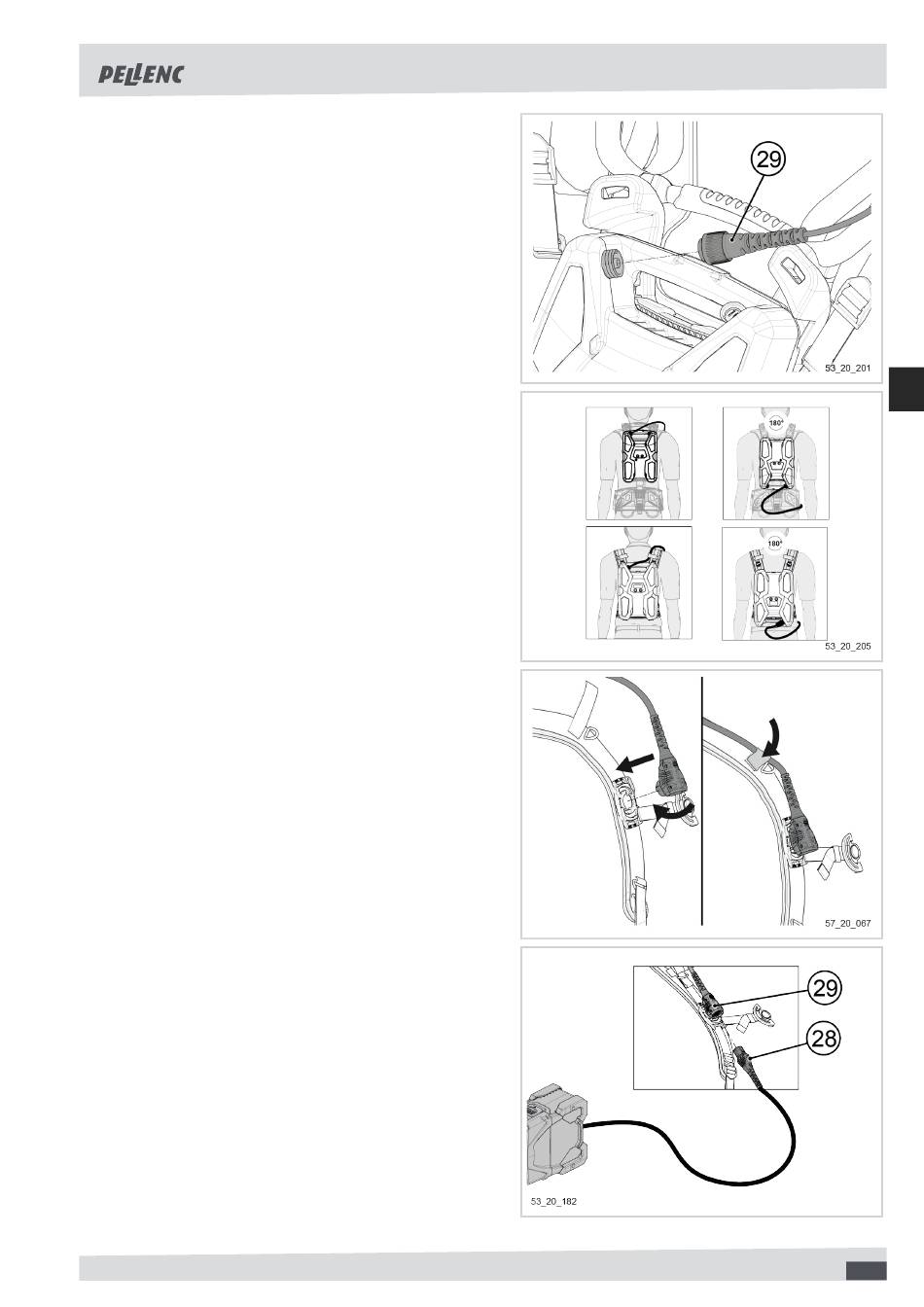

2. Place the battery in the harness (see harness in-
struction manual).
3. Connect the extension cord (29) to the battery.
4. Lock the connector by screwing the safety ring.
5. Put on the harness (see harness instruction manu-
al).
6. Depending on the battery model and the position of
the connector on the battery, the extension cord (29)
must be passed through one of the shoulder straps
or through the belt.
7. Insert the pin of the quick connector into the buckle
of the harness.
8. Turn the quick connector a quarter turn to hold it in
position.
9. Connect the power cord (28) of the counterweight to
the extension cord (29).
