ALPA MEGArod Bedienungsanleitung Seite 11

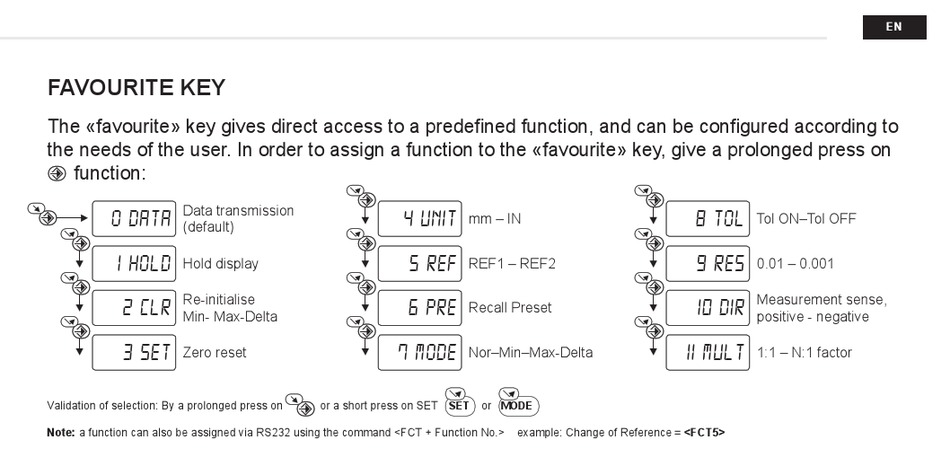

FAVOURITE KEY
The «favourite» key gives direct access to a predefined function, and can be configured according to
the needs of the user. In order to assign a function to the «favourite» key, give a prolonged press on
function:
Data transmission
o data
(default)
1 hold
Hold display
Re-initialise
2 clr
Min- Max-Delta
3 set
Zero reset
Validation of selection: By a prolonged press on
Note: a function can also be assigned via RS232 using the command <FCT + Function No.>
4 unit
mm – IN
5 ref
REF1 – REF2
6 pre
Recall Preset
7 MODE
Nor–Min–Max-Delta
SET
or a short press on SET or
MODE
example: Change of Reference = <FCT5>
8 tol
Tol ON–Tol OFF
9 res
0.01 – 0.001
Measurement sense,
10 dir
positive - negative
11 mult
1:1 – N:1 factor
EN
