ALPA_DIGITAL_INDICATOR_MEGArod IP67/IP54

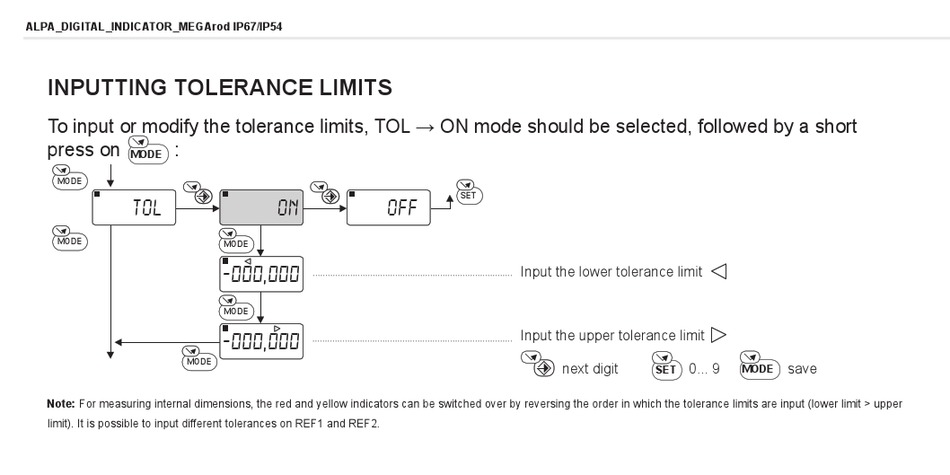

INPUTTING TOLERANCE LIMITS
To input or modify the tolerance limits, TOL → ON mode should be selected, followed by a short
press on :
MODE
MODE
1
mm
tol
MODE
MODE
Note: For measuring internal dimensions, the red and yellow indicators can be switched over by reversing the order in which the tolerance limits are input (lower limit > upper
limit). It is possible to input different tolerances on REF1 and REF2.
1 1
mm mm
on off
TOL
MODE
1
mm
-000,000
TOL INPUT
MODE
1
mm
-000,000
TOL INPUT
SET
TOL
Input the lower tolerance limit
Input the upper tolerance limit
next digit SET 0... 9 MODE save
