ALPA MEGAline Bedienungsanleitung Seite 7

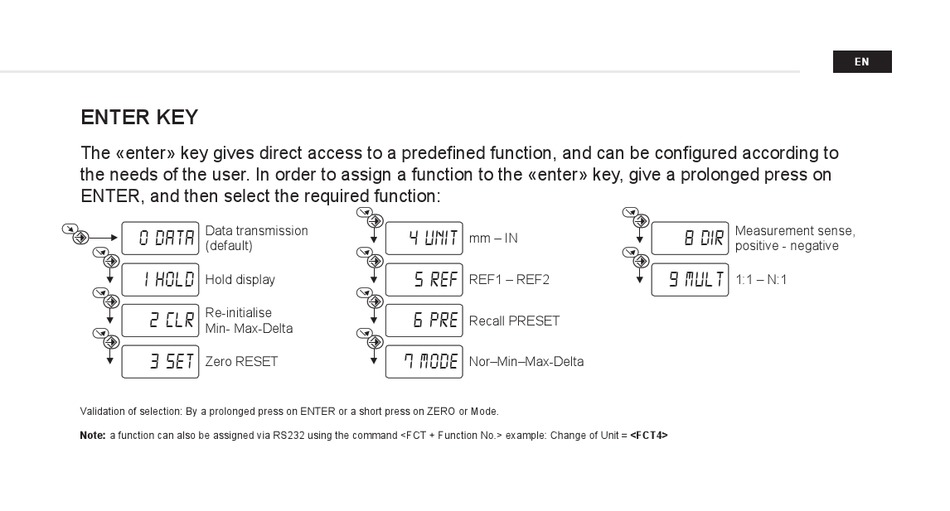

ENTER KEY
The «enter» key gives direct access to a predefined function, and can be configured according to
the needs of the user. In order to assign a function to the «enter» key, give a prolonged press on
ENTER, and then select the required function:
Data transmission
o data
(default)
1 hold
Hold display
Re-initialise
2 clr
Min- Max-Delta
3 set
Zero RESET
Validation of selection: By a prolonged press on ENTER or a short press on ZERO or Mode.
Note: a function can also be assigned via RS232 using the command <FCT + Function No.> example: Change of Unit = <FCT4>
4 unit
mm – IN
5 ref
REF1 – REF2
6 pre
Recall PRESET
7 MODE
Nor–Min–Max-Delta
Measurement sense,
8 DIR
positive - negative
9 MULT
1:1 – N:1
EN
