ALPA MEGAline Bedienungsanleitung Seite 10

ALPA_CALIPER_MEGAline_IP67_BIG
MODE
1
mm mm
123,456 MODE
> 4s
Linear correction example:
- Set the zero
- Measure a master
- Compute linear correction with measured value
- Introduce it by command or menu
- lnstrument ready and corrected

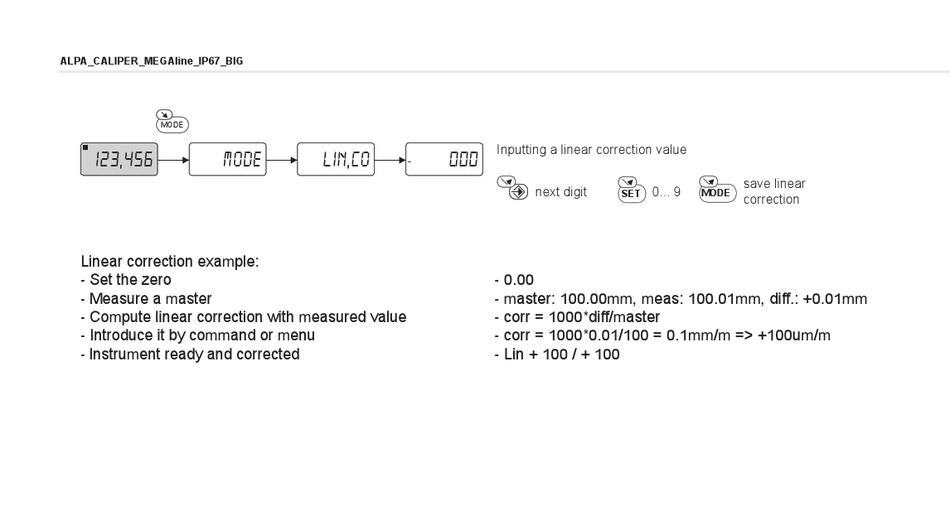

Inputting a linear correction value
mm
LIN,CO 000
-
- 0.00
- master: 100.00mm, meas: 100.01mm, diff.: +0.01mm
- corr = 1000*diff/master
- corr = 1000*0.01/100 = 0.1mm/m => +100um/m
- Lin + 100 / + 100
MODE
next digit SET 0... 9
save linear
correction
