Inhaltszusammenfassung für WITA Delta Plus UE 65A PWM Serie
Seite 1

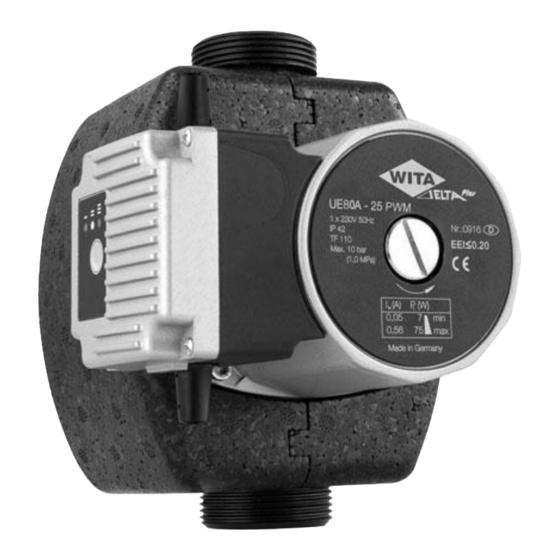

NUR ORIGINAL MIT DER RAUTE WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM ≤ 0,20 ORIGINAL EINBAU- UND BETRIEBSANLEITUNG SEITE 2–16 TRANSLATION OF THE ORIGINAL INSTALLATION AND OPERATING INSTRUCTIONS PAGE 18–32 www.wita-taake.de...
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM EU KONFORMITÄTSERKLÄRUNG Name des Ausstellers: WITA-Wilhelm Taake GmbH Pumpen-, Armaturen- und Regeltechnik Display HE Pumpen Böllingshöfen 85 D-32549 Bad Oeynhausen Gegenstand der Erklärung: Heizungs-Umwälzpumpe Typ: Delta Plus, Delta Plus PWM Ausführung:...
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 2 Sicherheitshinweise 2.1 Allgemeines Diese Einbau- und Betriebsanleitung ist Bestandteil des Pro- duktes und enthält grundlegende Informationen, die bei Mon- tage, Betrieb und Wartung zu beachten sind. Aus diesem Grund muss sie unbedingt vor der Aufstellung vom Monteur und dem zuständigen Fachpersonal bzw.
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM Hier stehen nützliche Hinweise zur Hinweis Handhabung des Produktes. Sie machen auf mögliche Schwierigkeiten aufmerk- sam und sollen für einen sicheren Betrieb sorgen. Direkt am Produkt angebrachte Hinweise wie zum Beispiel: •...
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 2.4 Gefahren bei Nichtbeachtung der Sicherheitshinweise Werden die Sicherheitshinweise nicht beachtet, kann dies eine Gefährdung von Personen, Umwelt und Anlage zur Folge haben. Die Nichtbeachtung der Sicherheitshinweise führt zum Verlust jeglicher Schadenersatzansprüche.
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM • Gefährdungen durch elektrische Energie müssen ausgeschlossen werden. Hierzu sind z. B. die Vorschriften des VDE und der lokalen Energieversorgungsunternehmen zu beachten. Display HE Pumpen • Sollten an der Anlage Gefahren durch heiße oder kalte Teile auftreten, so müssen diese mit einem Berührungsschutz ver-...
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM zugelassenes Zubehör verwendet werden. Werden andere Teile verwendet, so ist eine Haftung des Herstellers für die daraus entstehenden Folgen ausgeschlossen. 2.9 Unzulässige Betriebsweisen Wird die Pumpe vom Netz getrennt, muss vor Wiedereinschal- ten eine Wartezeit von mindestens 1 Minute eingehalten werden.
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 4 Bestimmungsgemäße Verwendung Die WITA Hoch-Effizienzpumpen Delta Plus UE 65A-XX PWM/ 80A-XX PWM sind für das Umwälzen von Warmwasser in Zentralheizungen konzipiert und eignen sich Display HE Pumpen auch zur Förderung dünnflüssiger Medien im Bereich Industrie und Gewerbe. Sie sind auch für solartechnische Anlagen geeignet.
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM Vorsicht! Unzulässige Fördermedien können die Pumpe zerstören, Hinweis sowie Personenschäden hervorrufen. Unbedingt Herstellerangaben und Sicherheitsdatenblätter berücksichtigen! Lieferumfang • Original Einbau- und Betriebsanleitung • Pumpe • 2 Flachdichtungen • Isolation 6 Beschreibung der Pumpe In einem durchschnittlichen Haushalt werden 10 bis 20% des Stromverbrauchs durch herkömmli-...
Seite 11
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM Leuchtfeld Beschreibung leuchtet permanent rot Mode 1 blinkt rot Mode 2 leuchtet permanent gelb Mode 3 blinkt gelb Mode 4 Durch fortlaufendes Drücken der Taste wechselt man zwischen den Betriebsarten.
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 8 Enlüftungsprogramm Durch längeres drücken der Taste ( > 5 sec ) wird ein Entlüftungsprogramm gestartet, welches ca. 4,5 Minuten dauert. Die Anzeige LED leuchtet hierbei grün und das Programm durchläuft Stufen mit unterschiedlichen Drehzahlen und unterschiedlicher Dauer.
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 10 Montage Fig. 1 Spannungsfreie Montage mit waagerecht liegendem Pumpenmotor durchführen (Richtungspfeil auf dem Pumpengehäuse zeigt die Flussrichtung an) (Fig.1). Bei Wärmedämmarbeiten darauf achten, dass der Pumpenmotor und das Elektronikgehäuse nicht gedämmt werden.
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 11 Elektrischer Anschluss Achtung Lebensgefahr! Display HE Pumpen Unsachgemäße Installation und unsachgemäßer elektrischer Anschluss können lebensgefährlich sein. Gefährdungen durch elektrische Energie sind auszuschließen. • Installation und elektrischen Anschluss nur durch Fachpersonal und gemäß der geltenden Vorschriften (z.
Bedienungsanleitung WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 13 Wartung/Service Vor Wartungs- Reinigungs- und Reparaturarbeiten Anlage spannungsfrei schalten und gegen unbefugtes Wiedereinschalten sichern. Bei hohen Wassertemperaturen und Systemdrücken Pumpe vorher abkühlen lassen. Es besteht Verbrühungsgefahr! 14 Störungen, Ursachen und Beseitigungen 1.
Seite 18
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM Table of Contents Declaration of Conformity......................19 Safety Instructions ........................20 2.1 General ................................20 2.2 Identification of symbols in the operating instructions..............20 2.3 Personnel qualification..........................21 2.4 Danger of not observing safety instructions ..................22 2.5 Safety-conscious work ..........................22...
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM EU DECLARATION OF CONFORMITY Name of the issuer: WITA-Wilhelm Taake GmbH Display HE Pumpen Pump, valve and control technology Böllingshöfen 85 D-32549 Bad Oeynhausen Subject of the declaration:...
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 2 Safety Instructions 2.1 General These installation and operating instructions are a part of the product, and contain basic information that must be observed during installation, operation and maintenance. For this reason, the installer and specialist personnel or operators must read these instructions prior to set-up.
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM This symbol indicates useful information Note for handling the product. It indicates potential difficulties and aims to ensure safe operation. Signs attached directly on the product, such as: •...
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 2.4 Danger of not observing safety instructions Not observing the safety information can endanger persons, the environment and the system. Not observing the safety instructions shall result in the loss of any and all claims to warranty.
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM • Observe the instructions in local or general regulations (e.g. IEC, VDE, etc.), and those of the local energy supplier. • In the event of hazards arising from the system due to Display HE Pumpen contact with hot or cold parts, these parts must be fitted...
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM bear no liability for any consequences resulting from the use of other parts. 2.9 Unpermitted operation If the pump is disconnected from the power supply, wait at least 1 minute before reactivating. Otherwise, the pump's inrush current limit has no effect, which can lead to functional errors or damage to any connected heating controller.
WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 4 Intended Use The WITA Delta Plus high-efficiency pumps are designed for circulating hot water in central heating systems, and are also suitable for conveying thin liquid media in industry and commerce. They can also be used in photovoltaic systems.
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM Caution! Unpermitted pumping media can destroy the pump Note and cause personal injury. Respect the manufacturer's information and safety data sheets! Scope of delivery • Original installation and operating instructions •...
Seite 27
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM Illuminated panel Description red lights permanently Mode 1 red flashes Mode 2 yellow lights permanently Mode 3 yellow flashes Mode 4 Change between the modes of operation by repeatedly pressing the key.
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 8 Venting programme Pressing the key for a longer period (> 5 sec) will start a venting program which lasts about 4,5 minutes. The display LED lights up green during this, and the program runs through several sta- ges at different speeds and different lengths of time.
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 9 PWM signal Connection of the PWM cable: blue = PWM ground brown = PWM (+) 10Vss 0,2 ms 1ms (1kHz) 10Vss 0,5 ms 1ms (1kHz) 10V DC...
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 10 Installation Fig. 1 Install the device with the power supply disconnected and with the pump motor lying horizon- tally (the arrow on the pump housing shows the direction of flow) (Fig. 1).
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 11 Electrical connection Warning: Risk of death! Improper installation and improper electrical connection can present a fatal hazard. Hazards posed by electrical power must be eliminated. • Only have installation and electrical connection performed by a specialist and in line with the valid regulations (e.g.
Operating instrutions WITA Delta Plus UE 65A-XX PWM | UE 80A-XX PWM 13 Service and Maintenance Switch off the power to the system before performing maintenance, cleaning or repair work, and secure it against unauthorised reactivation. Allow the pump to cool down in the event of high temperatures and system pressures.
