6. INSTALLATION.
Read and respect the Safety instructions, described
•
in section 2 of this document. The fact of omitting
any of the stated indications can cause serious or very se-
rious accidents to the surrounding, as well as failures in the
equipment and/or loads connected to it.
6.1. RECEPTION OF THE EQUIPMENT.
6.1.1. Reception, unpacking and contents.
Reception. Check that:
•
Data of the label sticked on the packaging corresponds
ˆ
to the ones stated in the order. And once it is unpacked,
check the previous data with the ones in the nameplate
of the own manual bypass unit.
In case of any discrepancies, make the nonconformity,
quoting the references in the delivery note.
It has not been damaged during transport.
ˆ
Contents.
•
Rack mounting equipment.
ˆ
Wiring link with connector and AC inlet (3 kVA model).
ˆ
Bypass signal cable to be connected with TWIN PRO2
ˆ
or RT2 UPSs (6 and 10 kVA models).
Angles supports for 19" rack mounting and their screws.
ˆ
User's manual in hardcopy and warranty.
ˆ
Once the reception is finished, if it is not going to be in-
•
stalled in the next days, it is recommended to keep the
equipment back in its original packaging as a preventive
measure.
As regards to the packaging, when it is going to be dis-
•
posed, do it in accordance with the regulations in force.
It is advised to keep it for year, at least.
6.2. LOCATION AND CONSIDERATIONS.
6.2.1.1. Location.
Remove the angles and screws from the plastic bag and
•
assemble them on the rack mounting bypass.
These devices are designed to be integrated into rack
•
cabinets. Illustrations from Fig 5 and 6 are mere examples
and the first one shows the wall mounting version for 16
A model.
USER'S MANUAL
19" rack installation.
Wall mounting installation.

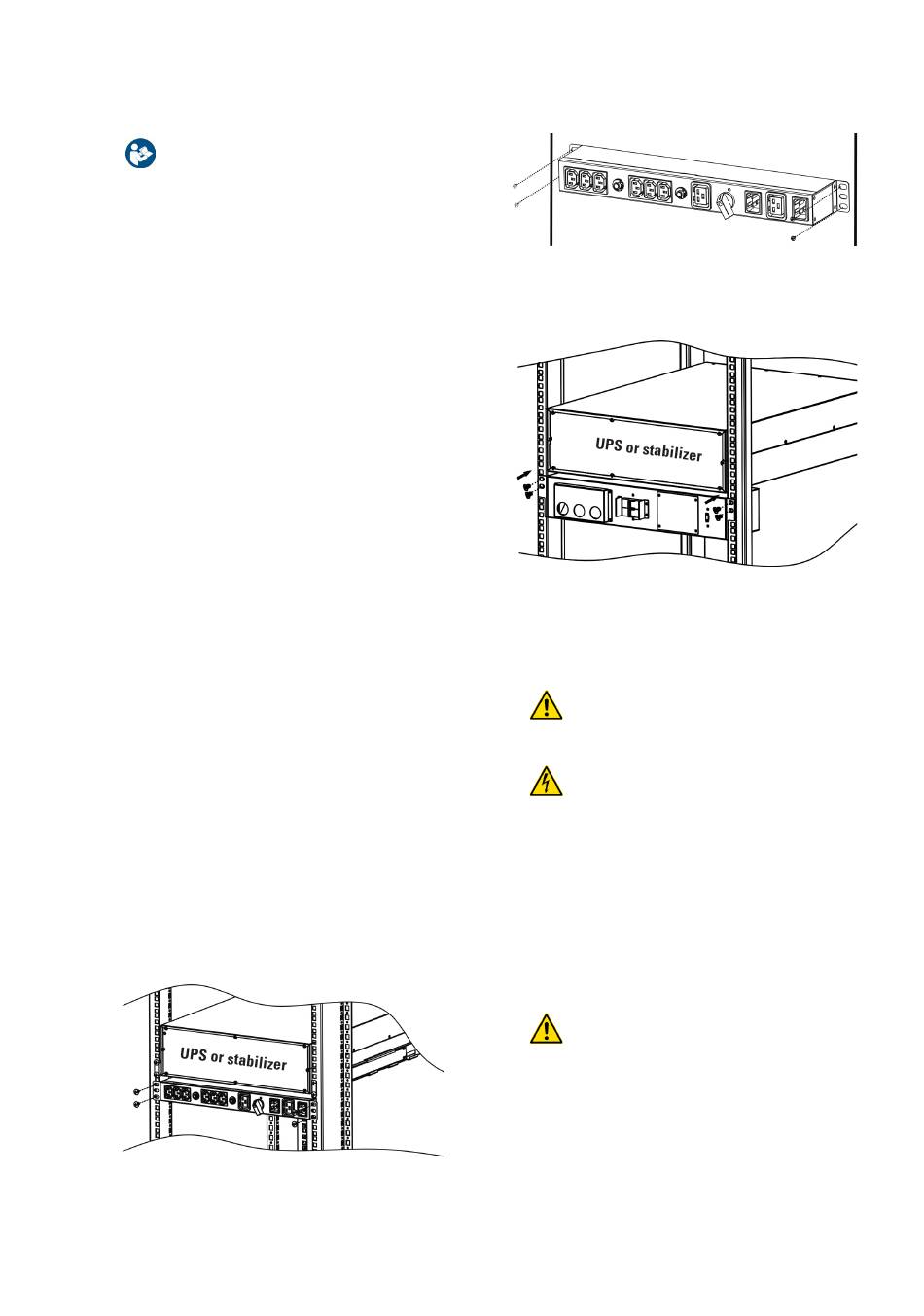

Fig. 5. Example of 3 kVA manual bypass installation.
Fig. 6. Example of 6 and 10 kVA manual bypass installation.
6.3. WIRING.
Any equipment connection, control included (inter-
•
face, remote control, ...), will be done with all the
switched OFF and with no mains present (power supply
switch of the UPS to «Off»).
Do not forget that the UPS is an electrical generator,
•
so the end-user must take the needed cautions
against the direct and indirect contacts, in case the instal-
lation has one.
For 6 and 10 kVA manual bypass connected to a UPS, the
•
documentation of itself will be taken into account, as re-
gard the «Backfeed protection». Also, in the installation
itself, it is also stated the cross cable section and protec-
tion size and features, etc.. for a determined power rate. At
least proceed according to these recommendations.
For 6 and 10 kVA models, remove the terminal protection
•
cover 11. Once the connection actions are finished, put it
back.
Cover 11 has two cable glands
cable entrance. Before connecting the cables to
their respective terminals, remember to pass them through
12 for the use of the
9
BM-R Rack mounting manual bypass
