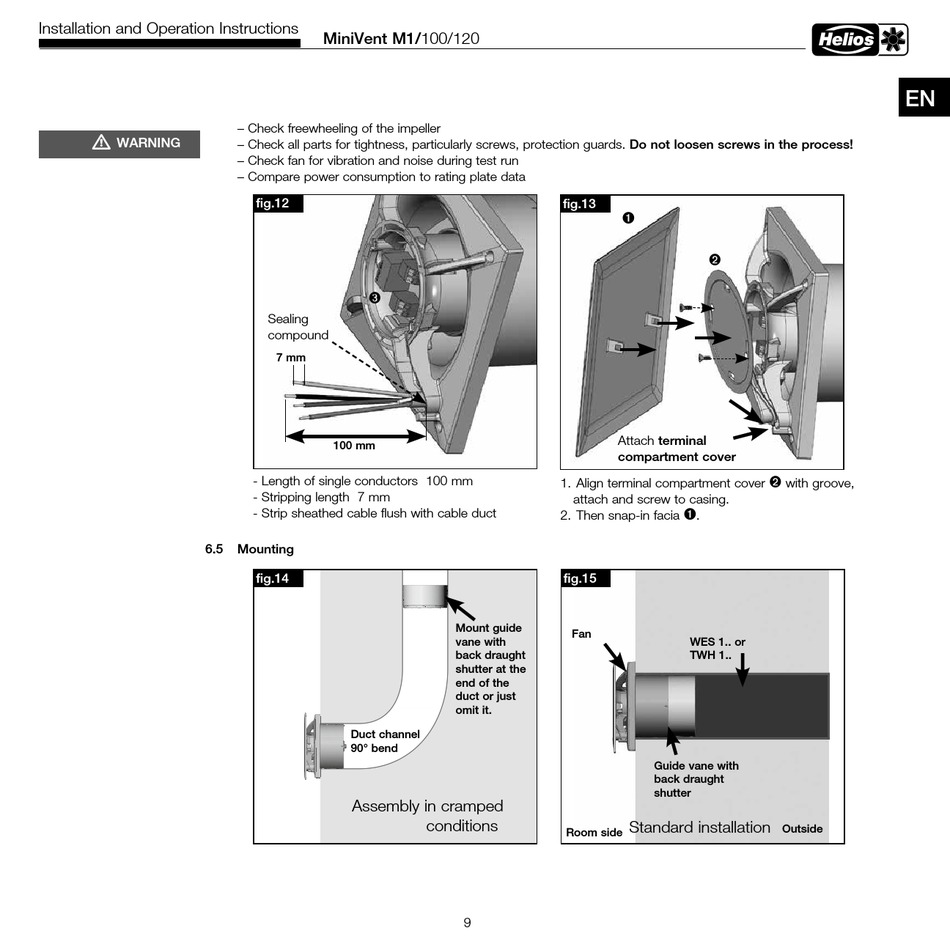

Installation and Operation Instructions
m
WARNING
6.5
MiniVent M1/100/120
– Check freewheeling of the impeller
– Check all parts for tightness, particularly screws, protection guards. Do not loosen screws in the process!
– Check fan for vibration and noise during test run
– Compare power consumption to rating plate data
fig.12
ä
Sealing
compound
7 mm
100 mm
- Length of single conductors 100 mm
- Stripping length 7 mm
- Strip sheathed cable flush with cable duct

Mounting

fig.14
Duct channel
90° bend
Assembly in cramped
fig.13
1. Align terminal compartment cover
attach and screw to casing.
2. Then snap-in facia
fig.15
Mount guide
Fan
vane with
back draught
shutter at the
end of the
duct or just
omit it.
conditions
Room side
9
ò
ù
Attach terminal
compartment cover
ù
with groove,
ò .
WES 1.. or
TWH 1..
Guide vane with
back draught
shutter

Standard installation

Outside
EN
