Installation and Operation Instructions
CHAPTER 5

CLEANING/

DISMANTLING
m
DANGER
ATTENTION
MiniVent M1/100/120

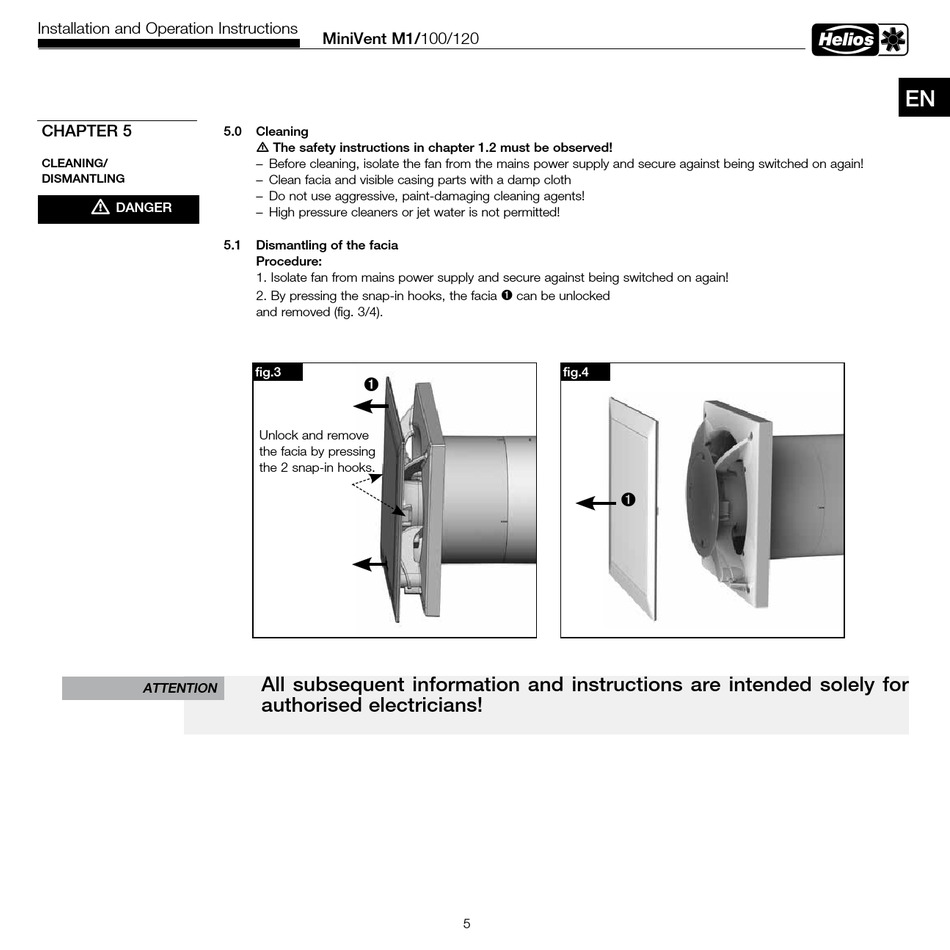

5.0 Cleaning
m The safety instructions in chapter 1.2 must be observed!
– Before cleaning, isolate the fan from the mains power supply and secure against being switched on again!
– Clean facia and visible casing parts with a damp cloth
– Do not use aggressive, paint-damaging cleaning agents!
– High pressure cleaners or jet water is not permitted!
5.1

Dismantling of the facia

Procedure:
1. Isolate fan from mains power supply and secure against being switched on again!
2. By pressing the snap-in hooks, the facia
and removed (fig. 3/4).
fig.3
ò
Unlock and remove
the facia by pressing
the 2 snap-in hooks.
All subsequent information and instructions are intended solely for
authorised electricians!
ò can be unlocked
fig.4
ò
5
EN
