Operation

4.1 Control panel

The frequency-controlled compressors AV30 and AV90 are equipped with an electronic v-Log control.
The electronic v-Log control maintains the network pressure between the programmable limit values by
automatically adjusting the compressor speed. Operating data such as operating times and system
statuses are also recorded.
4.1.1 v-Log control panel

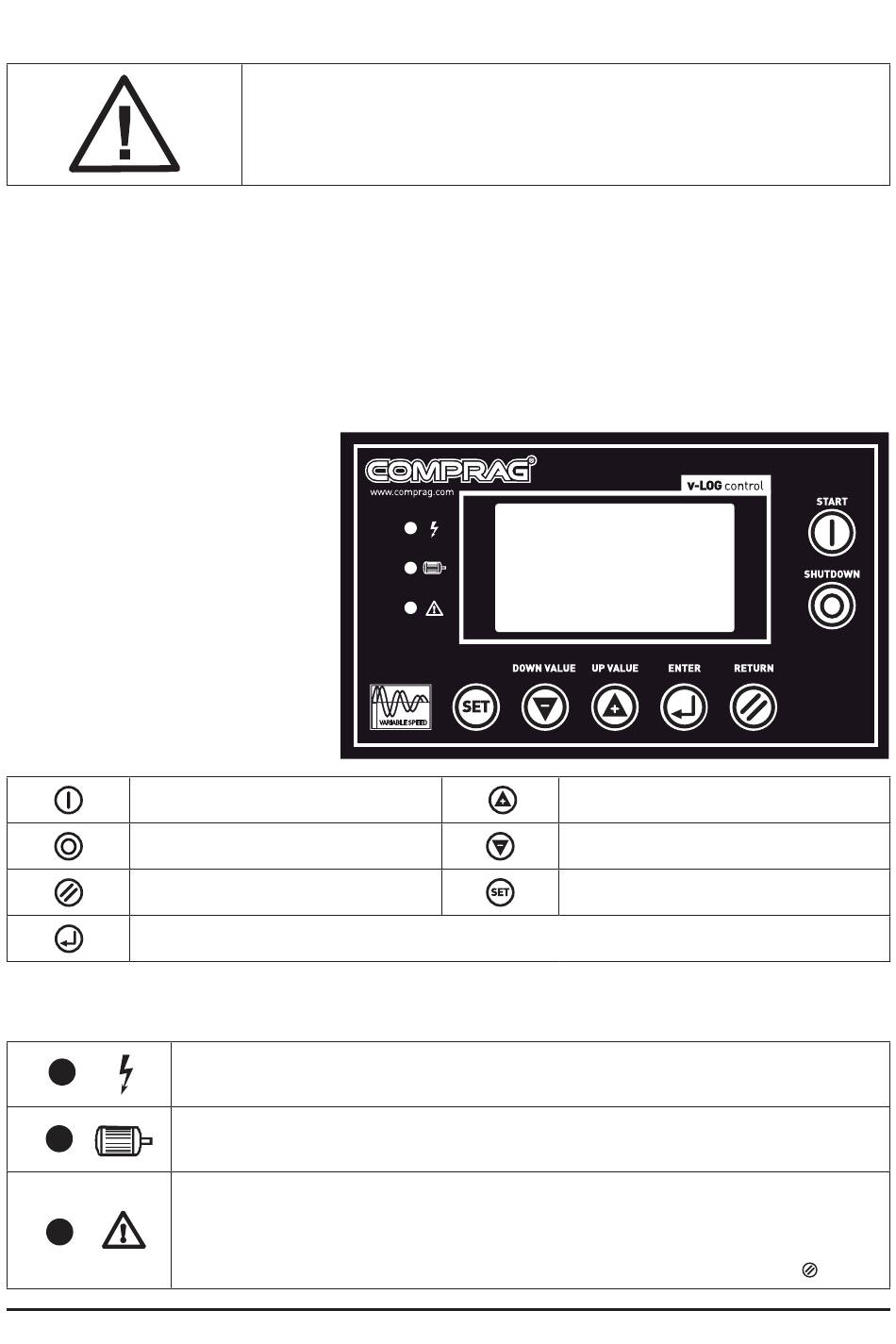

Fig. 4.1.1 v-Log control
panel
Start compressor
Stop compressor
Back to the main menu
Accept value / manually switch between loaded and idle running
4.1.2 LCD indicator
18
Non-qualified personnel must not be allowed to operate the com-
pressor.
Power indicator (red): The indicator lights up when the control is switched on and
the power supply is connected.
Power indicator (green): The indicator lights up when the motor is running.
Alarm/error indicator (red). Alarm (warning): The indicator flashes and the ma-
chine continues to run. Error: The indicator is permanently lit, there is an accom-
panying acoustic signal and the machine switches off. The error message can be
acknowledged after the cause of the error has been resolved. In order to acknowl-
edge the error message, press and hold the 'back to main menu' button
Up or increase value
Down or reduce value
Save setting
.
