The power cable has to be fed into the compressor.

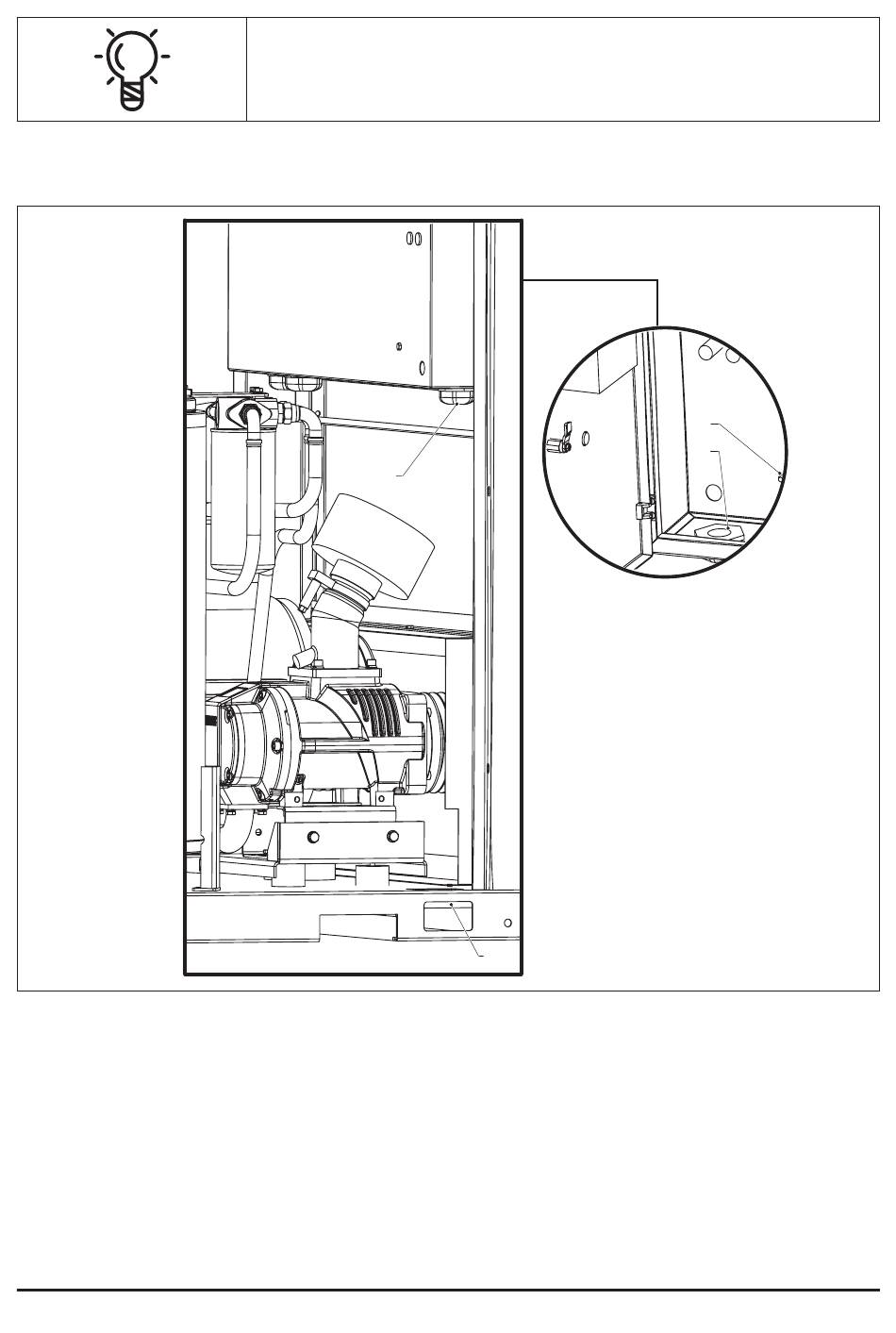

Fig. 3.5 Power cable connection
Remove the left side panel, pass the cable under the compressor into the orifice (1) and cable glang (2).
The earth wire of the power cable must be connected to the corresponding earthing bolt 3.
COMPRAG Screw air compressor FV-Series
The compressor must be earthed and protected against short cir-
cuits in each phase, impermissible voltage fluctuation and phase
failure.
