Operating Instructions
5

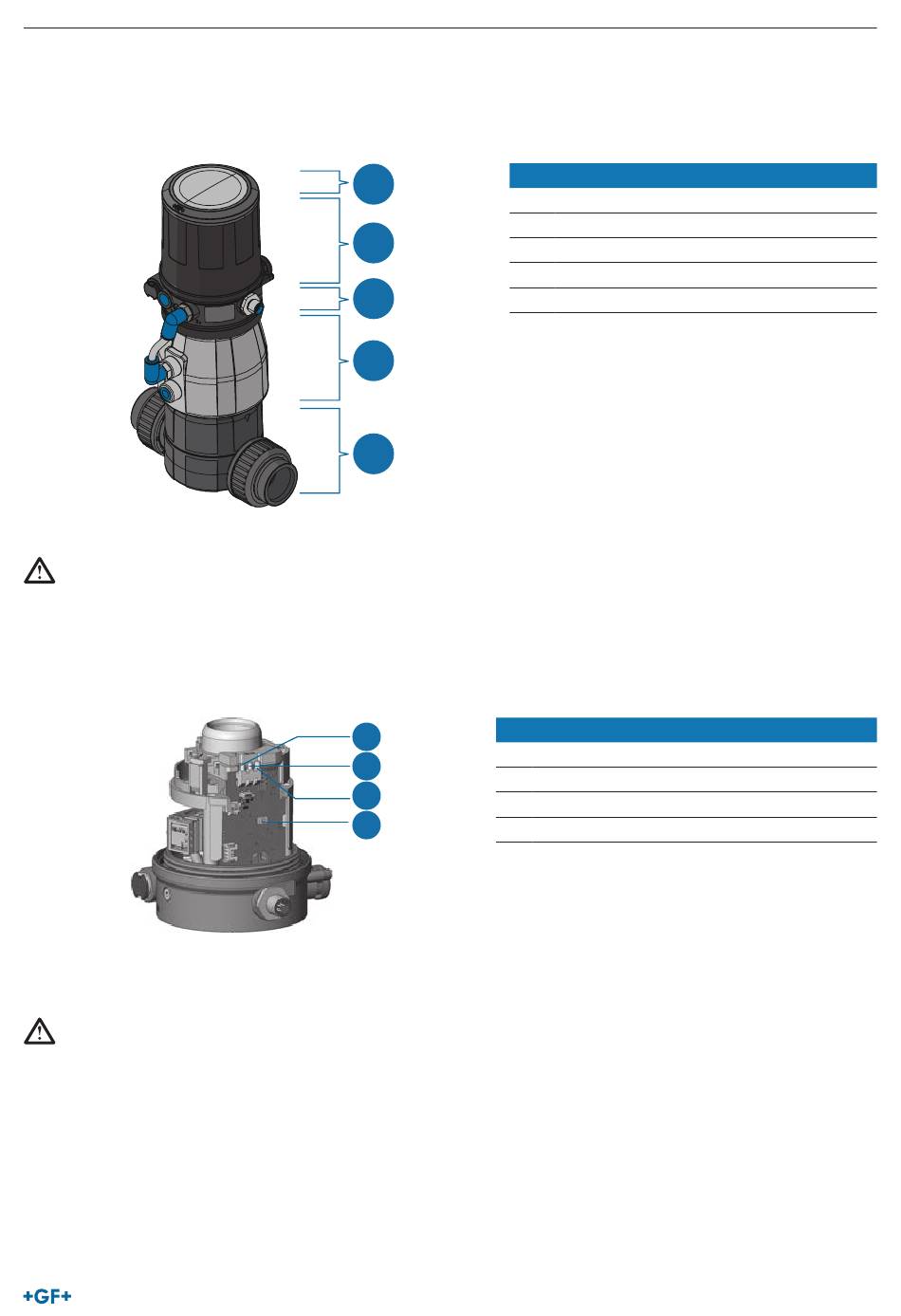

Operation

5.1

Description of the operating and display elements

► Unscrew the transparent cover of the SPC Lite positioner to access the status LED and the teach-in button.
NOTE!
Breakage of the pneumatic connecting pieces due to rotational effect.
► When unscrewing and screwing in the transparent cover, do not hold against the actuator of the valve, but against the basic
housing.
5.2

Control elements

► After adjustment, screw the transparent cover of the SPC Lite positioner back on.
CAUTION!
Damage or functional failure due to ingress of dirt and moisture.
► To comply with protection rating IP65/IP67, screw the transparent cover in as far as it will go.
1
No.
1
2
2
3
4
3
5
4
5
No. Designation
1
1
2
2
3
3
4
4
Designation
Transparent cover
Housing cover
Basic housing
Actuator
Valve
Pilot valve LED (V)
Status LED (green)
Status LED (red)
Button for starting the teach function
Type SPC Lite positioner
