Construction

1
2
3
4
5
3.3

Function

4
The type SPC Lite positioner is a control head designed for decentralized automation of pneumatic process valves. The valve position
is detected via a non-contact, analog sensor element, which automatically detects and stores the valve end positions via a teach
function upon putting into operation. The integrated pilot valve controls single-acting actuators.
No.
1
2
3
4
5
6
6
7
7
No.
1
2
3
3
4
2
1

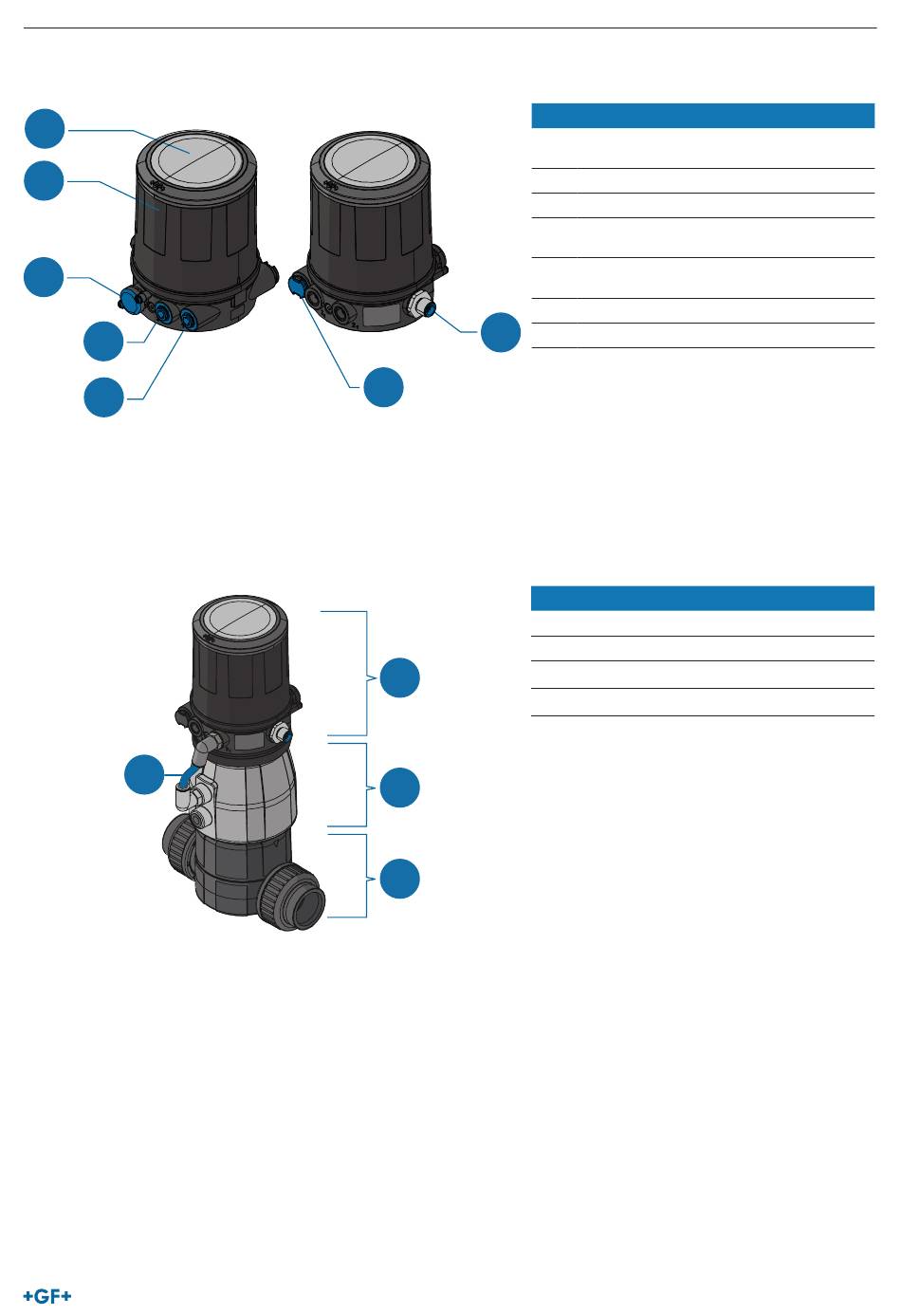

Type SPC Lite positioner
Designation
Transparent cover
Below decoding module with status LEDs
Housing cover
Pressure limiting valve
Exhaust air connection
Lettering: 3
Control air connection
Lettering: 1
Electrical connection
Supply air filter
Designation
Valve
Pneumatic actuator
Type SPC Lite positioner
Control air connection
