10 Technical data

Data
Rows x divisions
Ingress protection
Material
Terminal block
Glow wire resistance
Operating/storage conditions
Dimensions
(L x W x H)
Weight

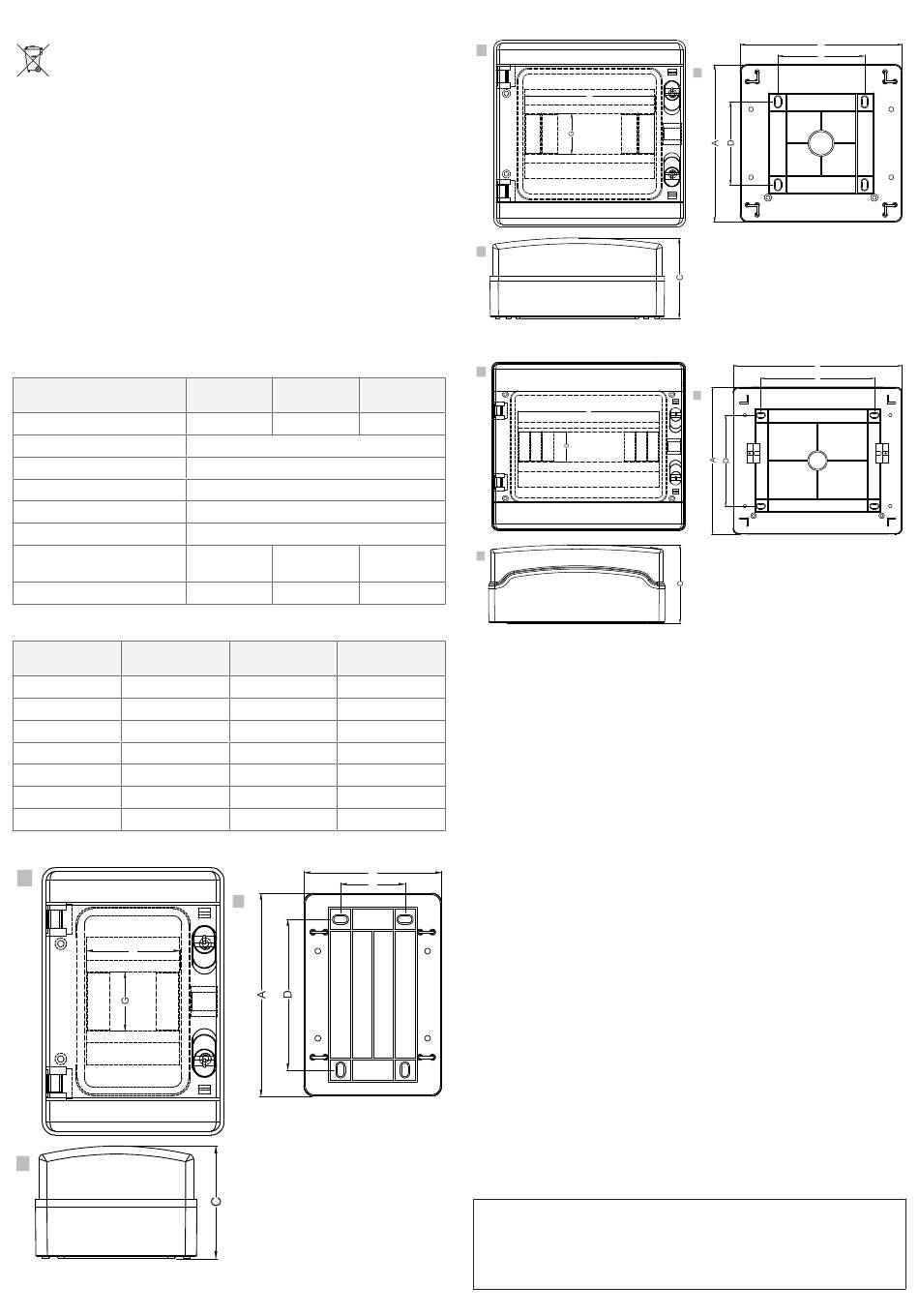

11 Dimensions
Dimension Item No.:
(mm) 2745925
A 210
B 140
C 100
D 155
E 67
F 73
G 45
11.1 Item No.: 2745925
1
F
3
4
Item No.: Item No.:
2745925 2745926
1 x 4 1 x 8
IP65
Polycarbonate / ABS
12 pole
650 °C
-20 to + 80 °C
140 x 210 x 100 215 x 210 x 100 295 x 260 x 140
mm mm
547 g 742 g
Item No.:
2745926
210
212
100
110
115
145
45
2
11.2 Item No.: 2745926
4
6
11.3 Item No.: 2745927
7
Item No.:
2745927
1 x 12
9
mm
1440 g
Item No.:
2745927
257
297
140
160
200
217
45
B
E
