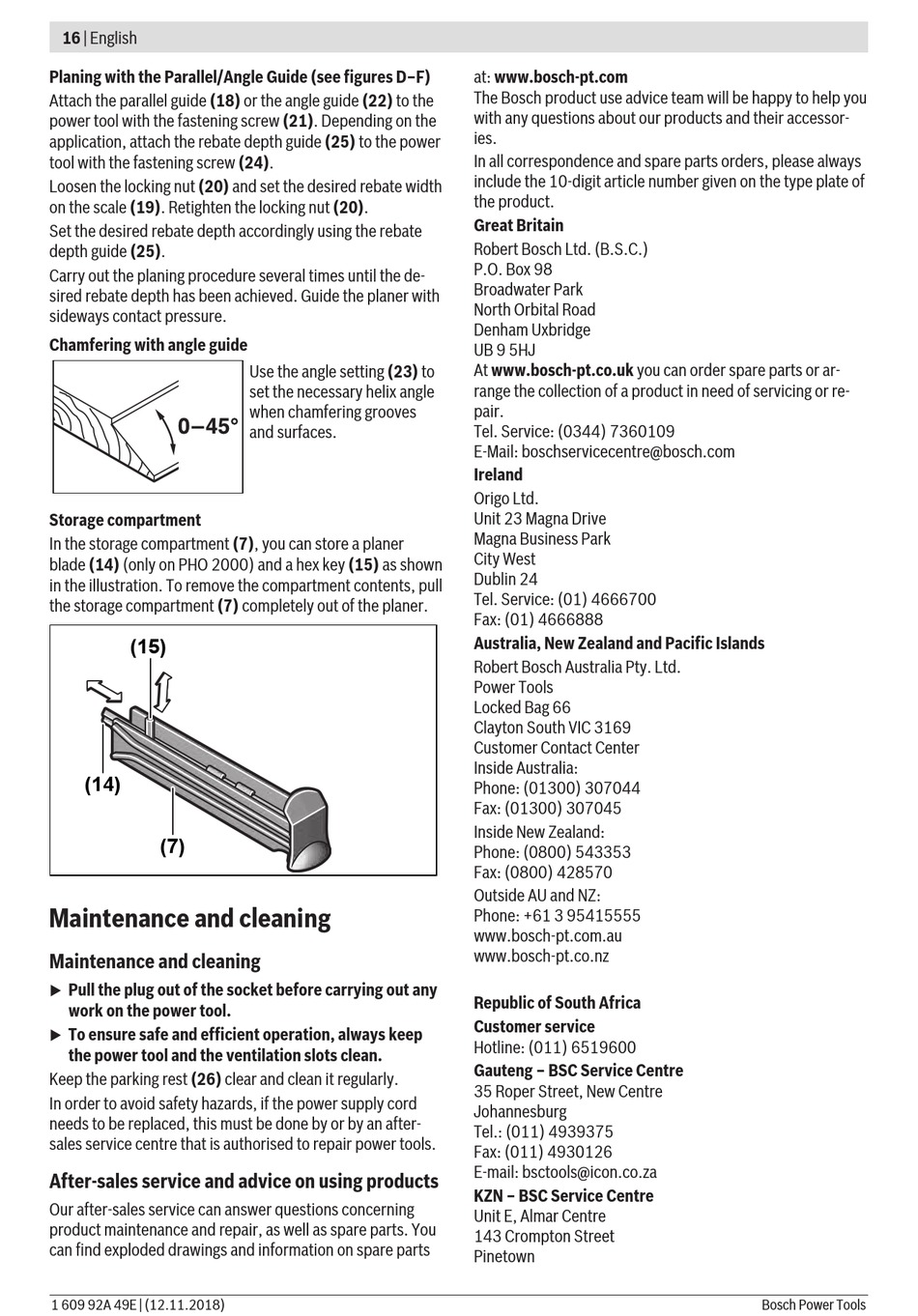

16 | English
Planing with the Parallel/Angle Guide (see figures D–F)
Attach the parallel guide (18) or the angle guide (22) to the
power tool with the fastening screw (21). Depending on the
application, attach the rebate depth guide (25) to the power
tool with the fastening screw (24).
Loosen the locking nut (20) and set the desired rebate width
on the scale (19). Retighten the locking nut (20).
Set the desired rebate depth accordingly using the rebate
depth guide (25).
Carry out the planing procedure several times until the de-
sired rebate depth has been achieved. Guide the planer with
sideways contact pressure.
Chamfering with angle guide
Storage compartment
In the storage compartment (7), you can store a planer
blade (14) (only on PHO 2000) and a hex key (15) as shown
in the illustration. To remove the compartment contents, pull
the storage compartment (7) completely out of the planer.
(15)
(14)
(7)

Maintenance and cleaning

Maintenance and cleaning
Pull the plug out of the socket before carrying out any
u
work on the power tool.
To ensure safe and efficient operation, always keep
u
the power tool and the ventilation slots clean.
Keep the parking rest (26) clear and clean it regularly.
In order to avoid safety hazards, if the power supply cord
needs to be replaced, this must be done by or by an after-
sales service centre that is authorised to repair power tools.
After-sales service and advice on using products
Our after-sales service can answer questions concerning
product maintenance and repair, as well as spare parts. You
can find exploded drawings and information on spare parts
1 609 92A 49E | (12.11.2018)
Use the angle setting (23) to
set the necessary helix angle
when chamfering grooves
and surfaces.
at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you
with any questions about our products and their accessor-
ies.
In all correspondence and spare parts orders, please always
include the 10‑digit article number given on the type plate of
the product.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or ar-
range the collection of a product in need of servicing or re-
pair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch-pt.com.au
www.bosch-pt.co.nz
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-mail: bsctools@icon.co.za
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
