13

Appendix A

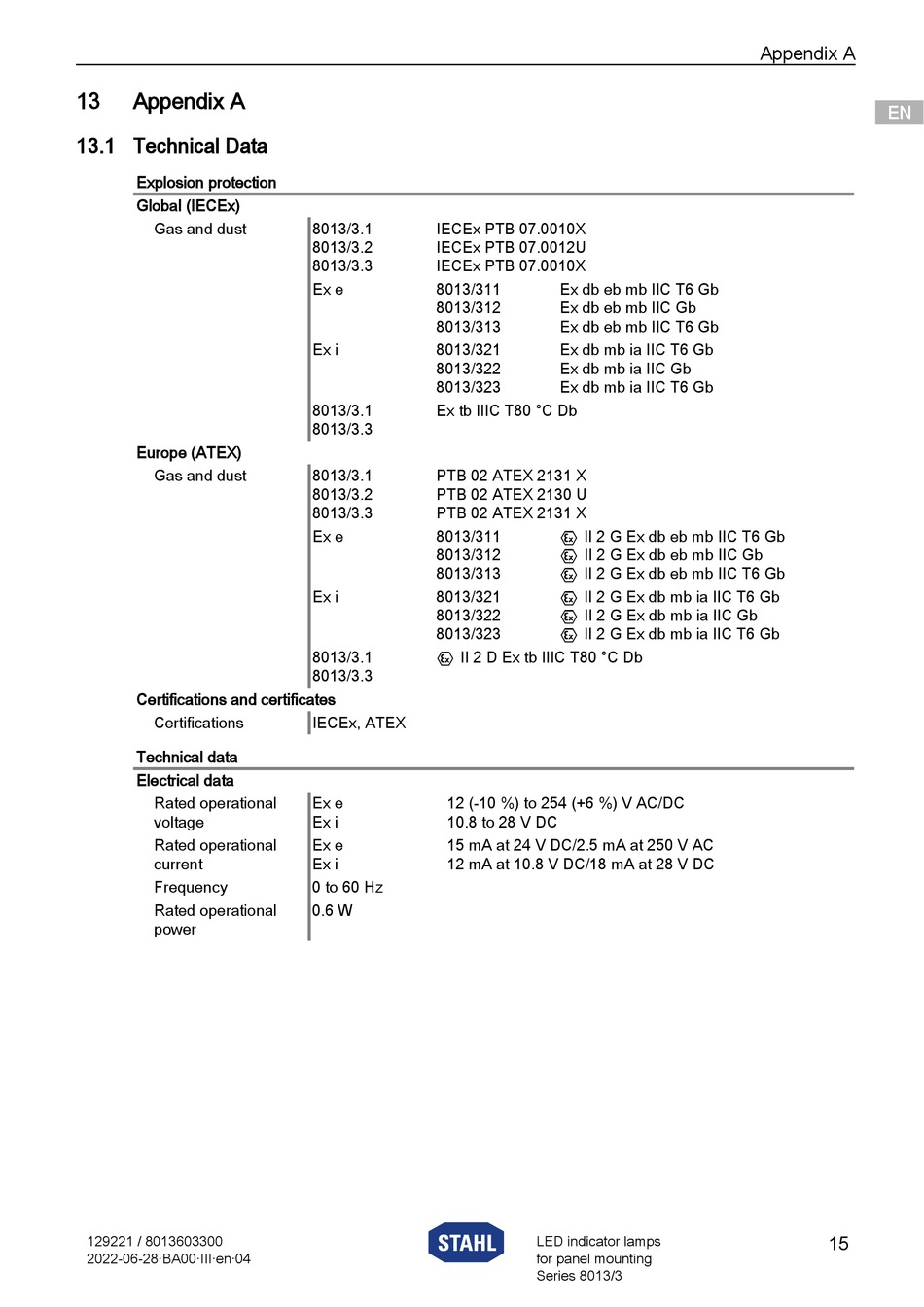

13.1 Technical Data

Explosion protection
Global (IECEx)
Gas and dust
Europe (ATEX)
Gas and dust
Certifications and certificates
Certifications
Technical data
Electrical data
Rated operational
voltage
Rated operational
current
Frequency
Rated operational
power
129221 / 8013603300
2022-06-28·BA00·III·en·04
8013/3.1 IECEx PTB 07.0010X
8013/3.2 IECEx PTB 07.0012U
8013/3.3 IECEx PTB 07.0010X
Ex e 8013/311
8013/312
8013/313
Ex i 8013/321
8013/322
8013/323
8013/3.1 Ex tb IIIC T80 °C Db
8013/3.3
8013/3.1 PTB 02 ATEX 2131 X
8013/3.2 PTB 02 ATEX 2130 U
8013/3.3 PTB 02 ATEX 2131 X
Ex e 8013/311
8013/312
8013/313
Ex i 8013/321
8013/322
8013/323
8013/3.1 E II 2 D Ex tb IIIC T80 °C Db
8013/3.3
IECEx, ATEX
Ex e 12 (-10 %) to 254 (+6 %) V AC/DC
Ex i 10.8 to 28 V DC
Ex e 15 mA at 24 V DC/2.5 mA at 250 V AC
Ex i 12 mA at 10.8 V DC/18 mA at 28 V DC
0 to 60 Hz
0.6 W
Ex db eb mb IIC T6 Gb
Ex db eb mb IIC Gb
Ex db eb mb IIC T6 Gb
Ex db mb ia IIC T6 Gb
Ex db mb ia IIC Gb
Ex db mb ia IIC T6 Gb
E II 2 G Ex db eb mb IIC T6 Gb
E II 2 G Ex db eb mb IIC Gb
E II 2 G Ex db eb mb IIC T6 Gb
E II 2 G Ex db mb ia IIC T6 Gb
E II 2 G Ex db mb ia IIC Gb
E II 2 G Ex db mb ia IIC T6 Gb
LED indicator lamps
for panel mounting
Series 8013/3
