3.3 FUEL SUPPLY,

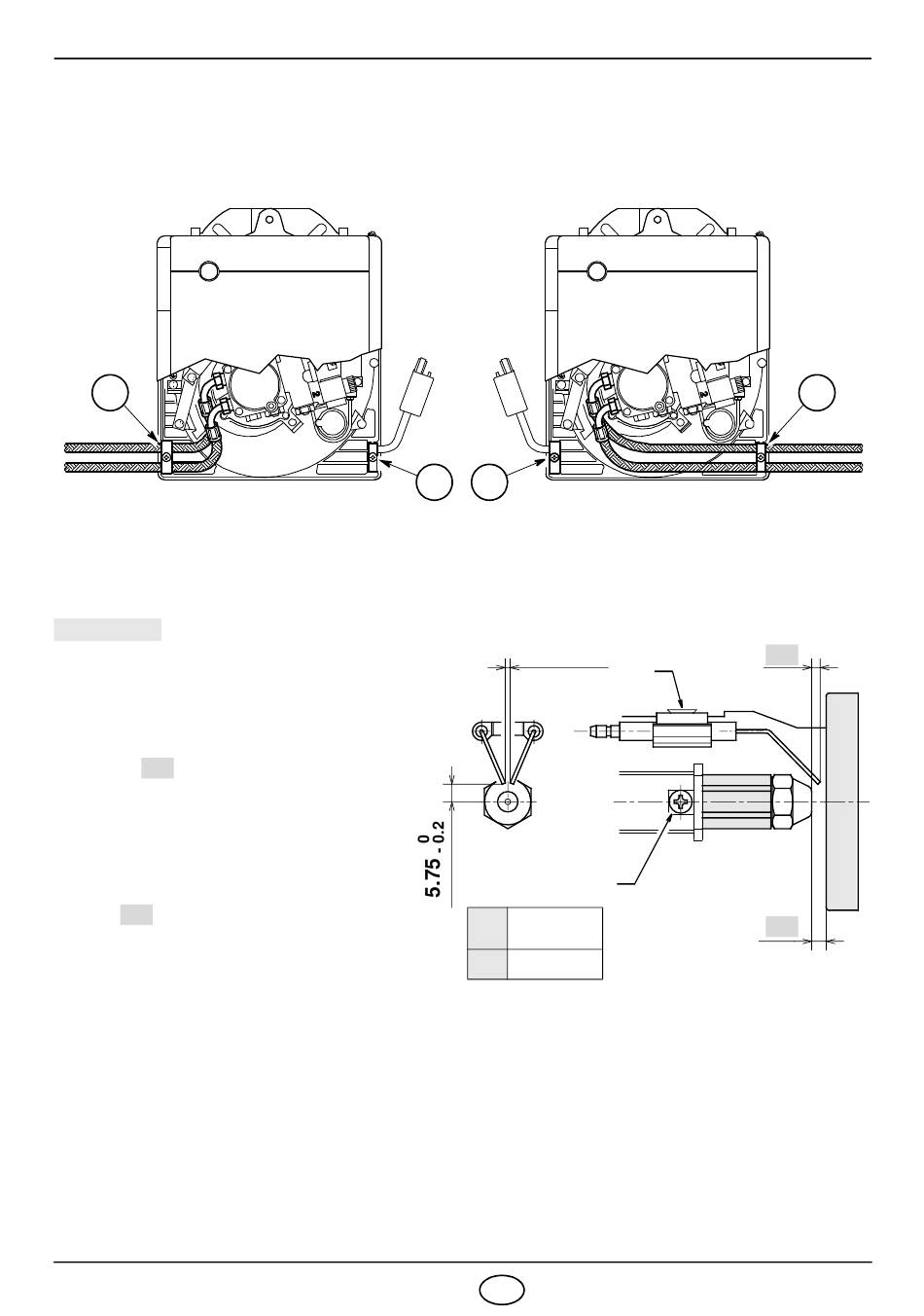

The burner is designed to allow entry of the oil supply pipes on either side.
Depending on the oil supply pipes position (to the right or to the left hand side of the burner) the fixing plate
(1) and cable clamp (2) should be reversed.
1
3.4 ADJUSTING THE DIFFUSER DISC ASSEMBLY AND ELECTRODES,
ATTENTION
MEASURES MUST BE RESPECTED
To adjust the diffuser disc assembly, proceed
as follows:
 Loosen the screw (1, fig.13).
 _Position the diffuser disc assembly so that
distance is as given.
A
Tighten the screw (1).

To adjust the electrode unit, proceed as fol-
lows:
 Loosen the screw (2, fig. 13).
 _Position the electrode unit so that dis-
tance is as given.
B
 Tighten the screw (2).
(see fig. 5)
Fig. 5
2 2
+ 0.5
3
0
+ 0.7
A
7.5
- 0.5
4
B
± 0.5
4
GB
(see fig. 6)
B
2
1
D4269
A
1
D5712
Fig. 6
