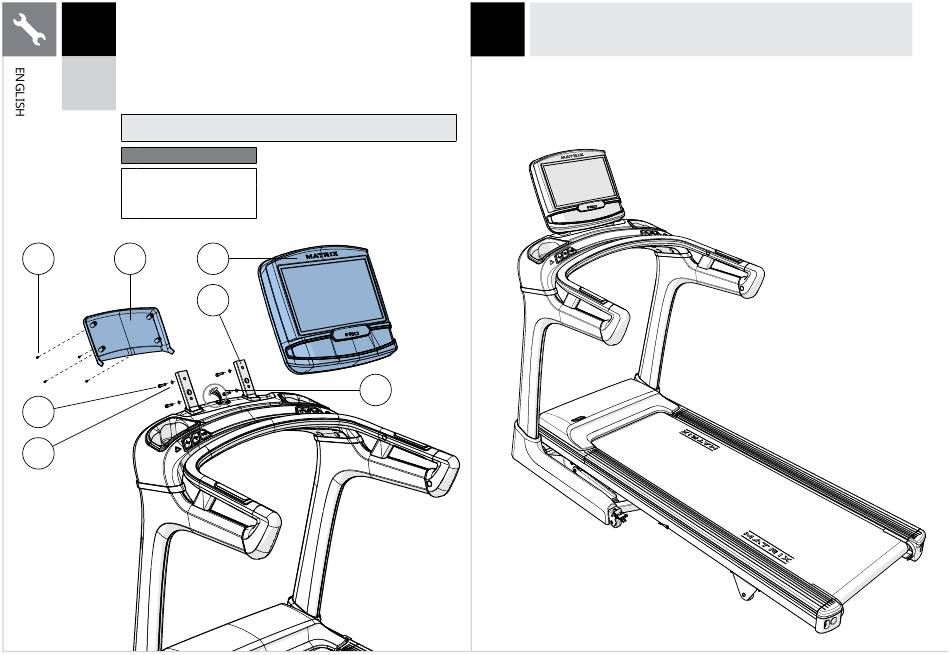

A Open HARDWARE FOR STEP 5.
5
B Connect the CONSOLE CABLES (4) to the CONSOLE (12) and
carefully tuck the excess cable into the CONSOLE BASE (7).
C
Attach the CONSOLE (12) to the CONSOLE BASE (7)
TF30
using 4 BOLTS (L) and 4 FLAT WASHERS (M).
D Attach the CONSOLE BACK COVER (13) to the
TF50
CONSOLE (12) using 4 SCREWS (N).
Note: Be careful not to pinch any wires while attaching the console.
Hardware For Step 5
Description
L
Bolt
M
Flat Washer
N
Screw
N
13
L
M
78
Qty
4
4
4
12
7
4
6
TF30 / TF50 ASSEMBLY COMPLETE!
