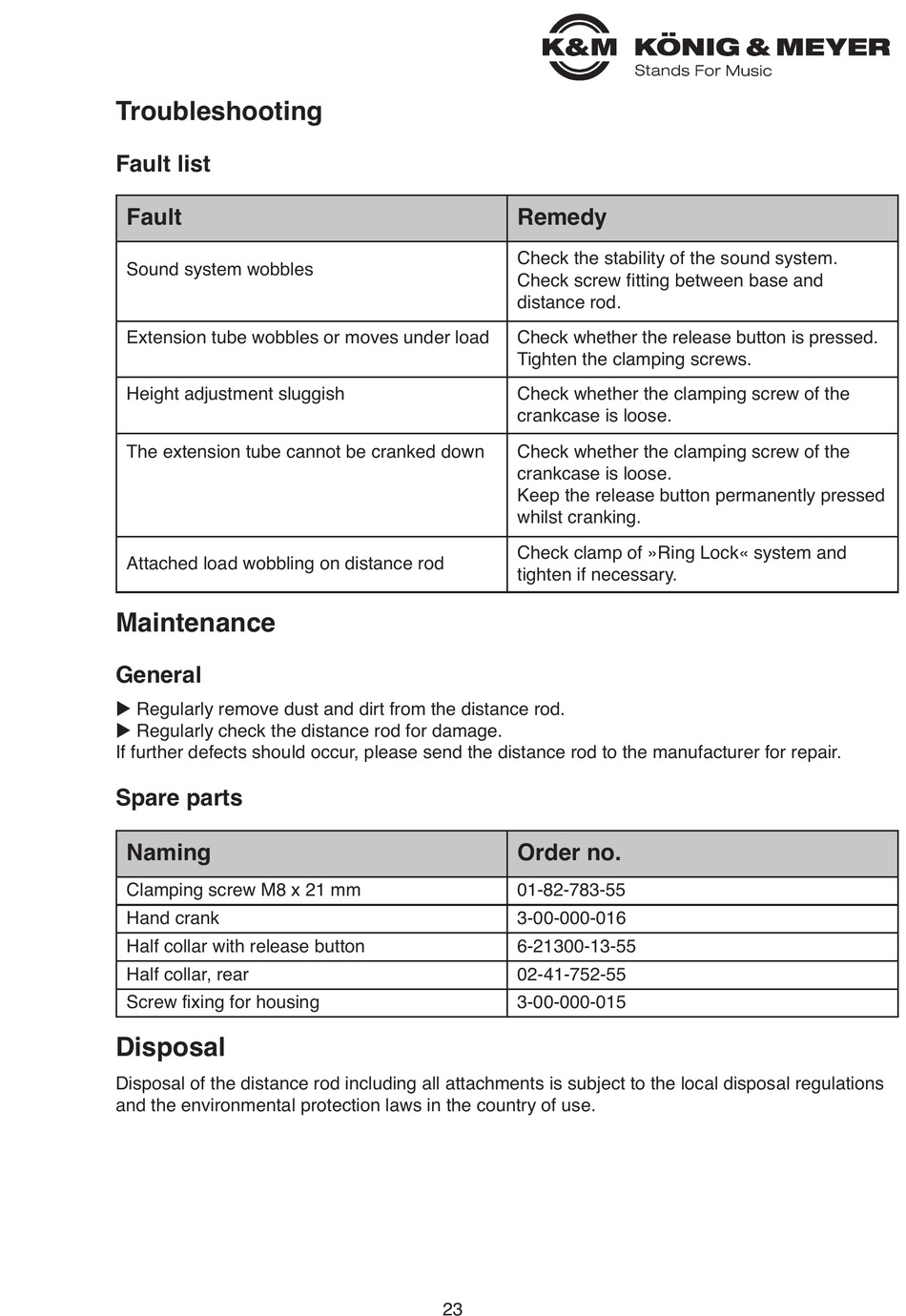

Troubleshooting
Fault list
Fault
Sound system wobbles
Extension tube wobbles or moves under load
Height adjustment sluggish
The extension tube cannot be cranked down
Attached load wobbling on distance rod
Maintenance
General
u Regularly remove dust and dirt from the distance rod.
u Regularly check the distance rod for damage.
If further defects should occur, please send the distance rod to the manufacturer for repair.
Spare parts
Naming
Clamping screw M8 x 21 mm
Hand crank
Half collar with release button
Half collar, rear
Screw fixing for housing
Disposal
Disposal of the distance rod including all attachments is subject to the local disposal regulations
and the environmental protection laws in the country of use.
Remedy
Check the stability of the sound system.
Check screw fitting between base and
distance rod.
Check whether the release button is pressed.
Tighten the clamping screws.
Check whether the clamping screw of the
crankcase is loose.
Check whether the clamping screw of the
crankcase is loose.
Keep the release button permanently pressed
whilst cranking.
Check clamp of »Ring Lock« system and
tighten if necessary.
Order no.
01-82-783-55
3-00-000-016
6-21300-13-55
02-41-752-55
3-00-000-015
