Baumer RR30.RAQ0-11234883 Kurzanleitung

Radar Sensoren
Radar sensors
Détecteurs à radar
RR30.RAQ0-11234883
Radar Refl exionsschranke
Radar retro-refl ective sensor
Barrières réfl ex à radar
Í?+7PsÂÂ*ÂzÎ
11234883
Baumer Electric AG · CH-8501 Frauenfeld
Phone +41 (0)52 728 1122 · Fax +41 (0)52 728 1144
Canada Italy
Baumer Inc. Baumer Italia S.r.l.
CA-Burlington, ON L7M 4B9 IT-20090 Assago, MI
Phone +1 (1)905 335-8444 Phone +39 (0)2 45 70 60 65
China Singapore
Baumer (China) Co., Ltd. Baumer (Singapore) Pte. Ltd.
CN-201612 Shanghai SG-339412 Singapore
Phone +86 (0)21 6768 7095 Phone +65 6396 4131
Denmark Sweden
Baumer A/S Baumer A/S
DK-8210 Aarhus V SE-56133 Huskvarna
Phone +45 (0)8931 7611 Phone +46 (0)36 13 94 30
France Switzerland
Baumer SAS Baumer Electric AG
FR-74250 Fillinges CH-8501 Frauenfeld
Phone +33 (0)450 392 466 Phone +41 (0)52 728 1313
Germany United Kingdom
Baumer GmbH Baumer Ltd.
DE-61169 Friedberg GB-Watchfield, Swindon, SN6 8TZ
Phone +49 (0)6031 60 07 0 Phone +44 (0)1793 783 839
India USA
Baumer India Private Limited Baumer Ltd.
IN-411038 Pune US-Southington, CT 06489
Phone +91 20 2528 6833/34 Phone +1 (1)860 621-2121
www.baumer.com/worldwide
1/4

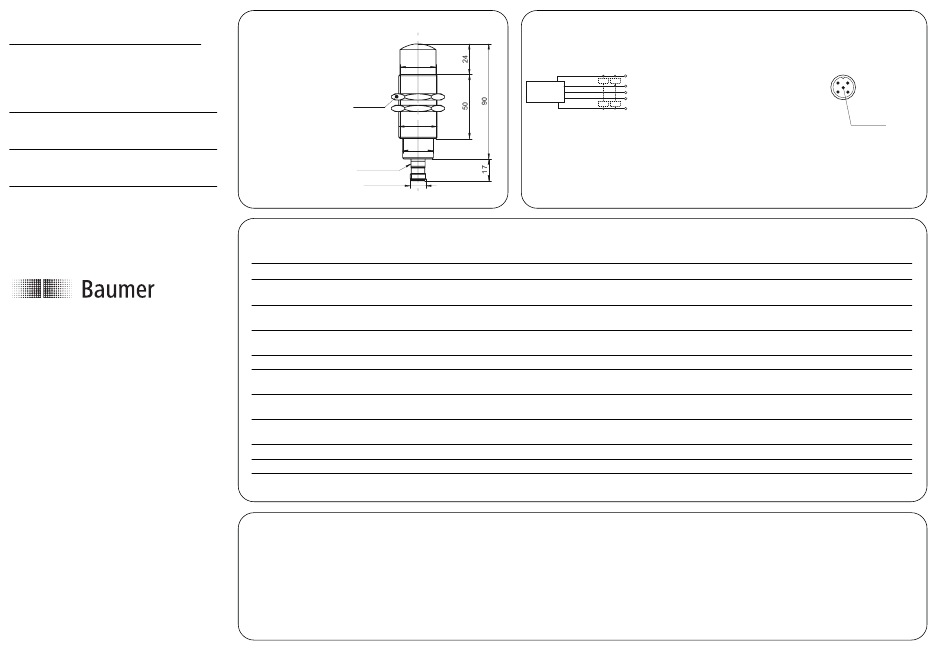

Abmessungen Dimensions Dimensions
ø 2 8
SW 36
M30 x 1,5
ø 2 4
LED
• Alle Masse in mm
M12 x 1
• All dimensions in mm
• Toutes les dimensions en mm
Technische Daten
Erfassungsbereich Sd 0 ... 80 m
Refl ektor Position Sde 0,5 ... 80 m
Betriebsspannungsbereich 12 ... 30 VDC
+Vs 2)
Stromaufnahme max. 230 mA
(ohne Last)
Ausgangsstrom < 100mA
(Ausgang 1)
< 50mA
(Ausgang 2)
Ausgangsschaltung Gegentakt / IO-Link
Kurzschlussfest ja
Verpolungsfest ja, Vs zu GND
Arbeitstemperatur -40 ... +65 °C
Lagertemperatur -40 ... +85 °C
Schutzart IP 68/69K & proTect+
2) mit / with / avec IO-Link 18 ... 28VDC
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTICE: Changes or modifi cations made to this equipment not expressly approved by Baumer may void the FCC authorization
to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Radiofrequency radiation exposure Information: This equipment complies with FCC exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your
body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Elektrischer Anschluss
BN (1)
+V
S
Z Z
WH (2)
2 x output 2
BK (4)
output 1 / IO-Link
Push-Pull GY (5)
Teach-in
Z Z
BU (3)
0 V
Class 2, UL 1310, siehe / see / voir au FAQ
• Vor dem Anschliessen des Sensors die Anlage spannungsfrei schalten.
• Disconnect power before connecting the sensor.
• Mettre l`installation hors tension avant le raccordement du détecteur.
Technical data
sensing distance Sd 0 ... 80 m
refl ector position Sde 0,5 ... 80 m
voltage supply range 12 ... 30 VDC
+Vs 2)
current consumption 230 mA
max. (no load)
output current < 100mA
(Output 1)
< 50mA
(Output 2)
output circuit push-pull / IO-Link
short circuit protection yes
reverse polarity pro- yes, Vs to GND
tection
operating temperature -40 ... +65 °C
storage temperature -40 ... +85 °C
protection class IP 68/69K & proTect+
Canada Compliance Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation of RR30 sensors on board an aircraft or a satellite is prohibited. The sensor should not point towards the sky in normal
operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement est conforme aux
limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Ce transmetteur ne doit pas etre place au meme
endroit ou utilise simultanement avec un autre transmetteur ou antenne.
L'opération des capteurs RR30 à bord d'un aéronef ou d'un satellite est interdite. Le capteur ne doit pas pointer vers le ciel en
opération normale.
Connection diagram Schéma de raccordement
output 2
BN = Braun/brown/brun
2
BK = Schwarz/black/noir
WH = Weiss/white/blanc
3
BU = Blau/blue/bleu
0V
GY = Grau/gray/gris
Données techniques
Portée de détection Sd 0 ... 80 m
Position du réfl ecteur Sde 0,5 ... 80 m
Plage de tension +Vs 2) 12 ... 30 VDC
Consommation max. (sans 230 mA
charge)
Courant de sortie < 100mA
< 50mA
Circuit de sortie push-pull / IO-Link
Protégé contre courts-cir- oui
cuits
Protégé contre inversion oui, Vs vers GND
polarité
Température de fonctionne- -40 ... +65 °C
ment
Température de stockage -40 ... +85 °C
Classe de protection IP 68/69K & proTect+
+V
S
1
4
output 1/IO-Link
5 Teach-in
(Sortie 1)
(Sortie 2)
