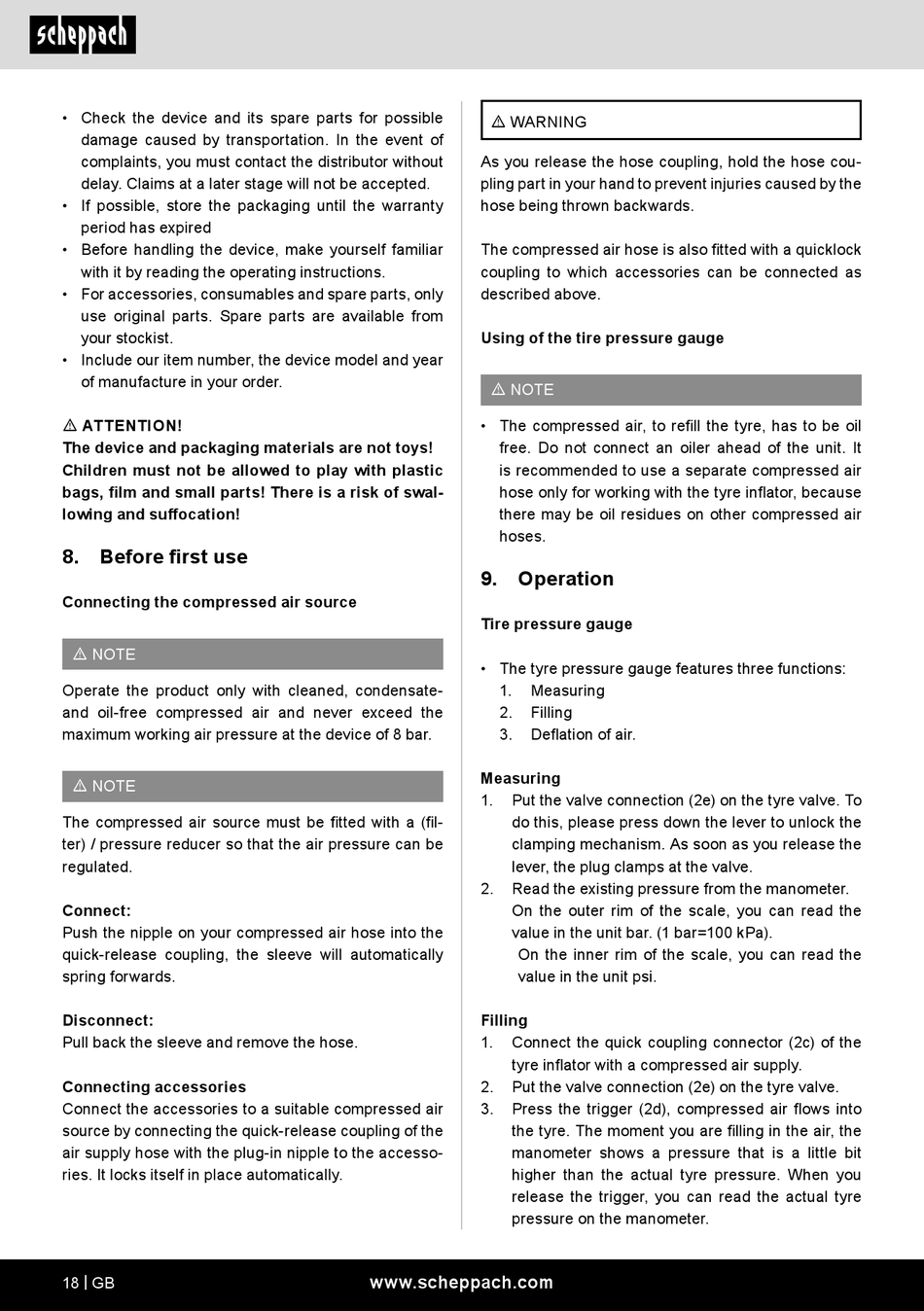

• Check the device and its spare parts for possible
damage caused by transportation. In the event of
complaints, you must contact the distributor without
delay. Claims at a later stage will not be accepted.
• If possible, store the packaging until the warranty
period has expired
• Before handling the device, make yourself familiar
with it by reading the operating instructions.
• For accessories, consumables and spare parts, only
use original parts. Spare parts are available from
your stockist.
• Include our item number, the device model and year
of manufacture in your order.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!

8. Before first use

Connecting the compressed air source
m NOTE
Operate the product only with cleaned, condensate-
and oil-free compressed air and never exceed the
maximum working air pressure at the device of 8 bar.
m NOTE
The compressed air source must be fitted with a (fil-
ter) / pressure reducer so that the air pressure can be
regulated.
Connect:
Push the nipple on your compressed air hose into the
quick-release coupling, the sleeve will automatically
spring forwards.
Disconnect:
Pull back the sleeve and remove the hose.
Connecting accessories
Connect the accessories to a suitable compressed air
source by connecting the quick-release coupling of the
air supply hose with the plug-in nipple to the accesso-
ries. It locks itself in place automatically.
18 | GB
m WARNING
As you release the hose coupling, hold the hose cou-
pling part in your hand to prevent injuries caused by the
hose being thrown backwards.
The compressed air hose is also fitted with a quicklock
coupling to which accessories can be connected as
described above.
Using of the tire pressure gauge
m NOTE
• The compressed air, to refill the tyre, has to be oil
free. Do not connect an oiler ahead of the unit. It
is recommended to use a separate compressed air
hose only for working with the tyre inflator, because
there may be oil residues on other compressed air
hoses.
9.

Operation

Tire pressure gauge
• The tyre pressure gauge features three functions:
1. Measuring
2. Filling
3. Deflation of air.
Measuring
1. Put the valve connection (2e) on the tyre valve. To
do this, please press down the lever to unlock the
clamping mechanism. As soon as you release the
lever, the plug clamps at the valve.
2. Read the existing pressure from the manometer.
On the outer rim of the scale, you can read the
value in the unit bar. (1 bar=100 kPa).
On the inner rim of the scale, you can read the
value in the unit psi.
Filling
1. Connect the quick coupling connector (2c) of the
tyre inflator with a compressed air supply.
2. Put the valve connection (2e) on the tyre valve.
3. Press the trigger (2d), compressed air flows into
the tyre. The moment you are filling in the air, the
manometer shows a pressure that is a little bit
higher than the actual tyre pressure. When you
release the trigger, you can read the actual tyre
pressure on the manometer.
