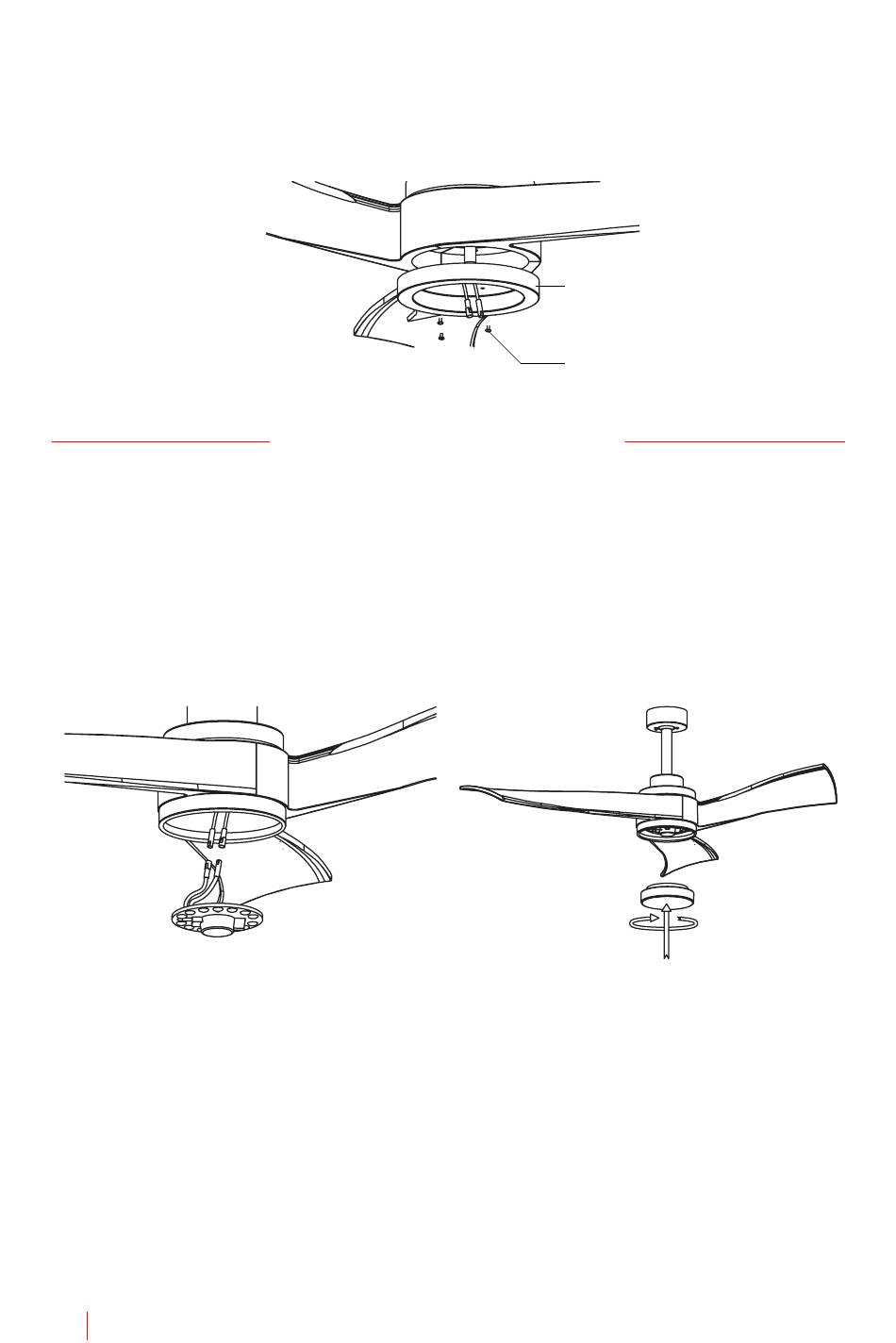

CONNECTI ONS PANE L AS SE M B LY
• Attach the connections plate up to the bottom of the fan by inserting the set screw
heads into the key hole slots. Rotate them to place and tighten them to secure the plate.
LE D PAN AND SH ADE AS SE M B LY
• Connect the single-pin plugs of the connections plate with the ones on the LED panel.
The LED panel is magnetized so it will be attached to the connections panel just by
placing them together.
Note: While installing or removing the LED plate, please keep the insulation pads intact
carefully. Turning the set screws over-tightly or fast will damage the insulation pads.
• Screw the lamp shade back to the connections plate.
