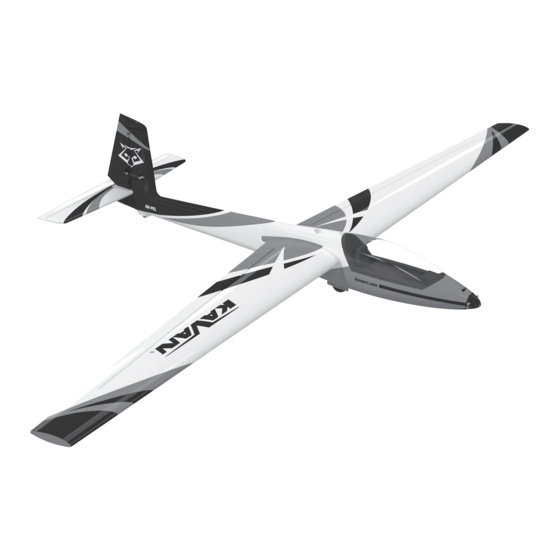

SWIFT S-1
Instruction Manual / Návod ke stavbě / Bauanleitung / Návod na stavbu
PRECAUTIONS:
This R/C model is not a toy. Use it with care and stricktly following the instructions in this manual.
Assemble this model following stricktly these instructions. DO NOT modify or alter the model. Failure to do so, the warranty
will lapse automatically. Follow the instructions in order to obtain a safe and solid model at the end of the assembly.
Children under the age of 14 must operate the model under the supervision of an adult.
Assure that the model is in perfect conditions before every flight, taking care that all the equipment works correctly and that
the model is undamaged in its structure.
Fly only in days with light breeze and in a safe place away from any obstacles.
Tento RC model není hračka. Je určen k provozování osobami staršími 15 let.
Model dokončete a připravte k letu PŘESNĚ podle návodu. Model NEUPRAVUJTE, v opačném případě automaticky ztrácí zá-
ruka svoji platnost.
Model provozujte opatrně a ohleduplně, důsledně se řiďte pokyny v tomto návodu.
Před každým letem se ujistěte, že model je v prvotřídním stavu, dbejte, aby všechny části pracovaly správně, a model nebyl
poškozený.
S modelem létejte na vhodné ploše bez překážek, stromů, elektrických vedení apod. Vyhledejte bezpečné místo, mimo cesty
a veřejné komunikace, dbejte na bezpečnost přihlížejících diváků.
UPOZORNĚNÍ:
|
VORSICHTSMAßNAHMEN:
Dieses R/C Modell ist kein Spielzeug. Benutzen Sie es mit Vorsicht und halten.
Sie sich an die Anweisungen in dieser Anleitung. Bauen Sie das Modell gemäß der Anleitung zusammen. Modifizieren und
verändern Sie das Modell nicht. Bei Nichteinhaltung erlischt die Garantie. Folgen Sie der Anleitung um ein sicheres und halt-
bares Modell nach dem Zusammenbau zu erhalten.
Kinder unter 14 Jahren müssen das Modell unter Aufsicht eines Erwachsenen betreiben.
Versichern Sie sich vor jedem Flug, dass das Modell in einwandfreiem Zustand ist, dass alles einwandfrei funktioniert und
das Modell unbeschädigt ist.
Fliegen Sie nur an Tagen mit leichtem Wind und an einem sicheren Platz ohne Hindernisse.
UPOZORNENIE:
Tento RC model nie je hračka. Je určený na prevádzkovanie osobami staršími ako 14 rokov.
Model dokončite a pripravte k letu PRESNE podľa návodu. Model neupravujte, v opačnom prípade automaticky stráca záruka
svoju platnosť.
Model prevádzkujte opatrne a ohľaduplne, dôsledne sa riaďte pokynmi v tomto návode.
Pred každým letom sa uistite, že model je v prvotriednom stave, dbajte, aby všetky časti pracovali správne, a model nebol
poškodený.
S modelom lietajte na vhodnej ploche bez prekážok, stromov, elektrických vedení apod. Vyhľadajte bezpečné miesto, mimo
cesty a verejné komunikácie, dbajte na bezpečnosť prizerajúcich.
