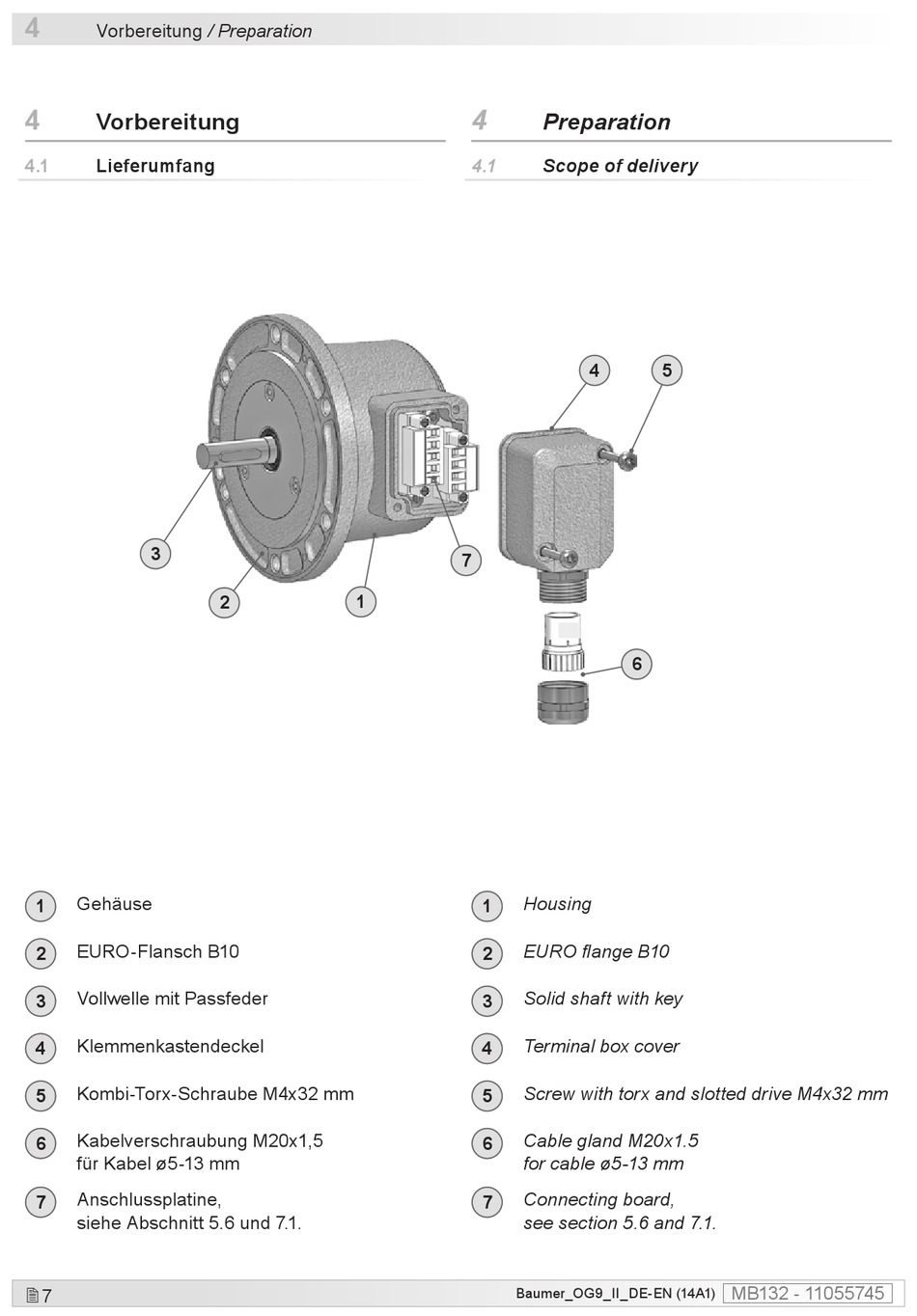

Vorbereitung / Preparation
4
Vorbereitung
4.1
Lieferumfang
3
Gehäuse
1
EURO-Flansch B10
2
Vollwelle mit Passfeder
3
Klemmenkastendeckel
4
Kombi-Torx-Schraube M4x32 mm
5
Kabelverschraubung M20x1,5
6
für Kabel ø5-13 mm
Anschlussplatine,
7
siehe Abschnitt 5.6 und 7.1.
7
1
2
4
Preparation
4.1
Scope of delivery
4
7
6
Housing
1
EURO flange B10
2
Solid shaft with key
3
Terminal box cover
4
Screw with torx and slotted drive M4x32 mm
5
Cable gland M20x1.5
6
for cable ø5-13 mm
Connecting board,
7
see section 5.6 and 7.1.
