Plunge Cut With Guide Rail; Parallel Guide And/Or Table Expansion - Tectool Tsf 55 Originalbetriebsanleitung

1. Mark a cutting line on the work piece and align the guide rail exactly with
this cutting line.
2. Fix the guide rail with clamps on the work piece.
3. Set the selector switch to marked cut function. Set the plunge saw speed to
6.
4. Place the plunge saw at the rear end of the guide rail.
5. Switch the plunge saw on and push the saw down. Cut the splinter guard
continuously over the entire length. The edge of the splinter guard now
exactly matches the cutting edge.

PLUNGE CUT WITH GUIDE RAIL

1. Hold the plunge saw with both hands at handles (3) and (12).
2. Switch the plunge saw on and wait until it runs on full speed.
3. Push the saw slowly down and guide the saw towards the plunge position.
Note: The cutting width markings (15) at the side of the protective cover show
the foremost and rearmost cutting points of the saw blade at maximum cutting
depth when using the guide rail and a 165 mm diameter saw blade.
PARALLEL GUIDE AND/OR TABLE EXPANSION (optional)
For cut-off widths up to 180 mm a parallel guide can be used. The guide can
also be used as table expansion.

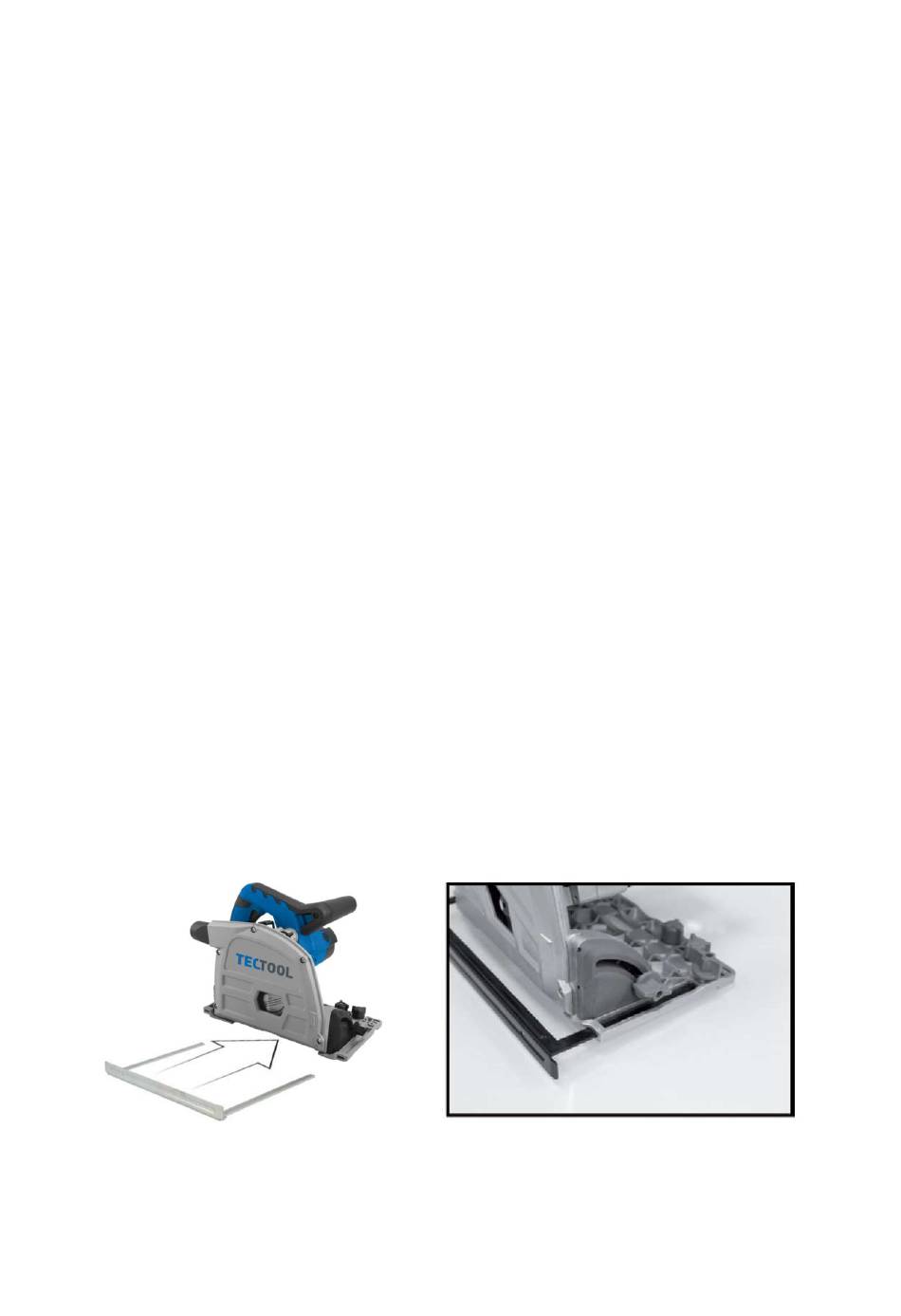

1. Slide the parallel guide into the respective guides at the front and rear of
the base plate.
