7. Set the desired plunge depth. Ensure that the guide rail track compensation
(9) is in up position when using the saw without guide rail.
5. To switch the saw on press the switch
lock (1) and the ON/OFF switch (2) and
push the motor down. Guide the saw
forward to cut.
The cutting indicator (14) shows the
cutting path for 90° and 45° miter cuts
(without using the guide rail).

MARKED CUTTING

2. Turn the selector switch (17) to
marked cut function.
2. Press the switch lock (1) and
push the motor down. The casing
stops in 2.5 mm cutting depth
position.

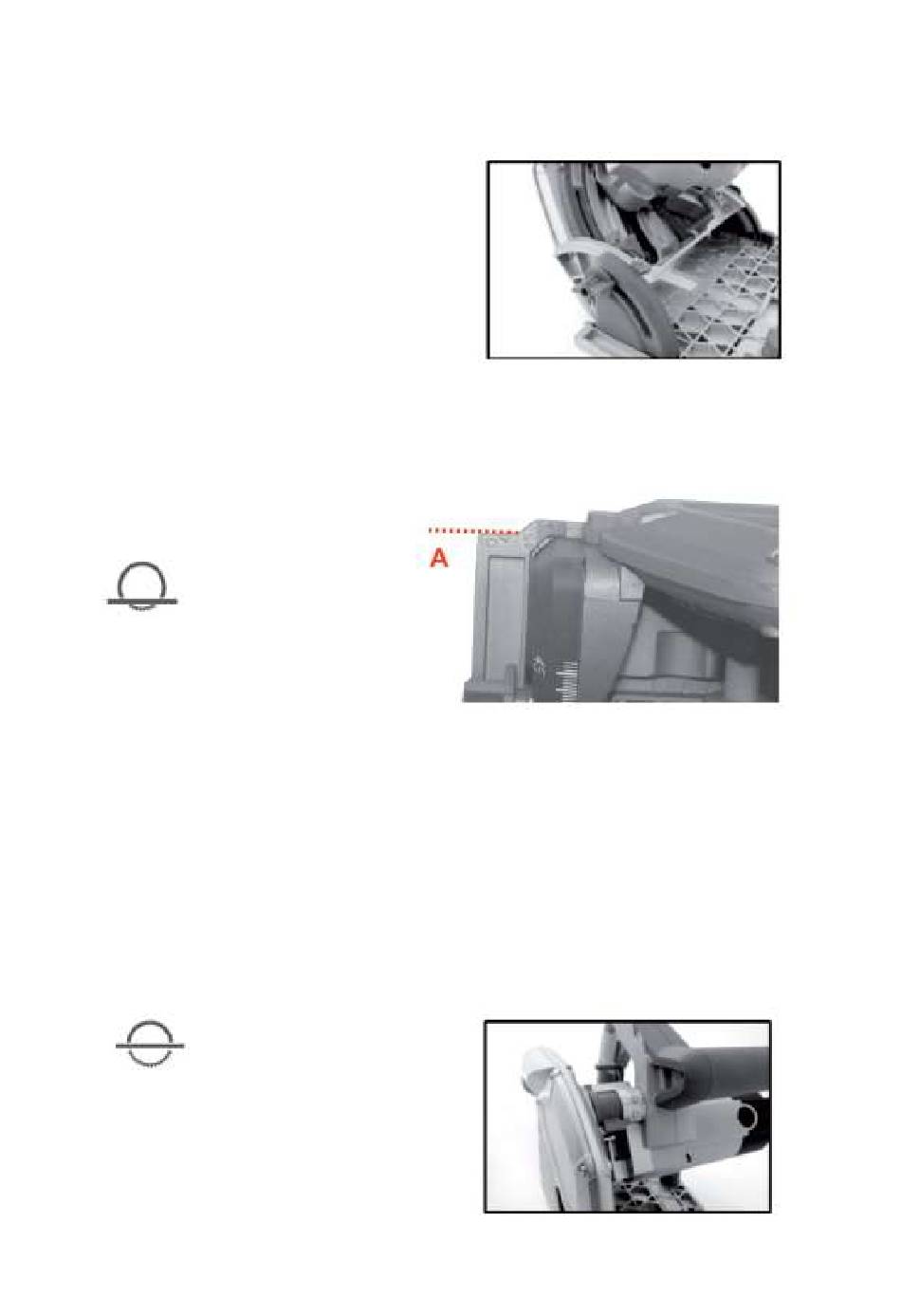

Note: The marking line should be aligned with cutting line A (0 mark).

PLUNGE CUTS

3. For a straight cut first loosen both rotary knobs (7) and swivel the plunge
saw to 0° position on the scale. Tighten the rotary knobs again.
2. Turn the selector switch (17) to plunge cut function.
4. Set the desired plunge depth. Ensure
that the guide rail track compensation
(9) is up if not using the guide rail.
