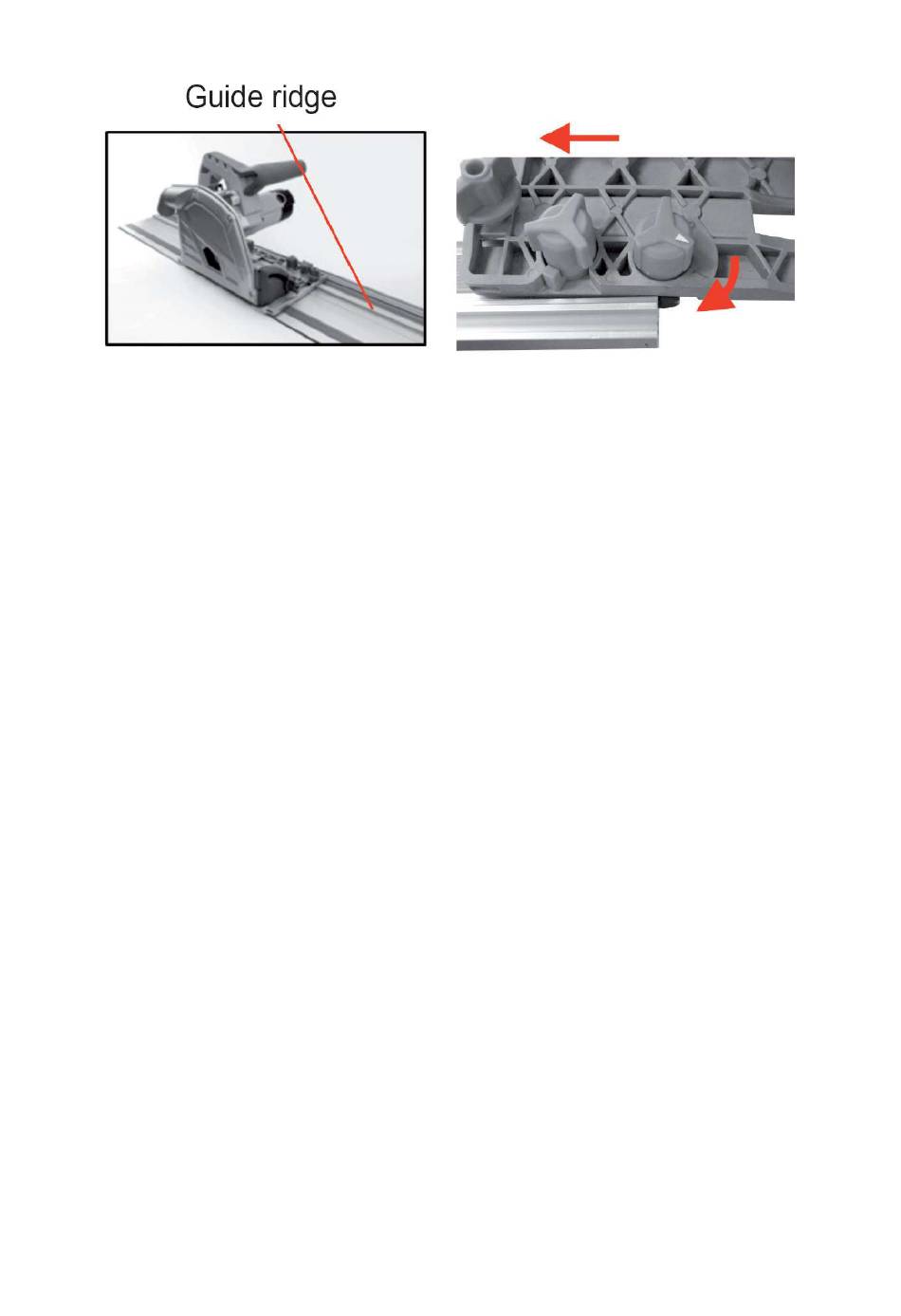

4. Guide the plunge saw from the edge of the guide rail and turn the guide rail
lock (6) towards I to connect the plunge saw to the rail. Connecting the base
plate to the guide rail is important when doing miter cuts. This prevents the
plunge saw from tilting over.
5. Disconnect the plunge saw by turning the locking mechanism back towards
0 and taking the saw off the guide rail.
FINE ADJUSTMENT OF PLUNGE SAW PLAY ON GUIDE
RAIL
The play of the base plate on the guide rail can be reduced to minimum with
the fine adjustment screws (5).
1. Loosen the fine adjustment screws counter-clockwise.
2. Turn both fine adjustment screws (5) clockwise to minimize the play
between base plate and guide rail, if necessary.
3. Fasten the fine adjustment screws clockwise.

CONNECTING RODS FOR GUIDE RAILS

1. To connect both guide rails slide the first connecting rod from the bottom
into the groove of the guide rail.
2. Slide the other connecting rod into the second groove.
3. Use the 3 mm Allen key to tighten the stud screws to the limit stop to
connect the rails.
