Installation of the sauna heater

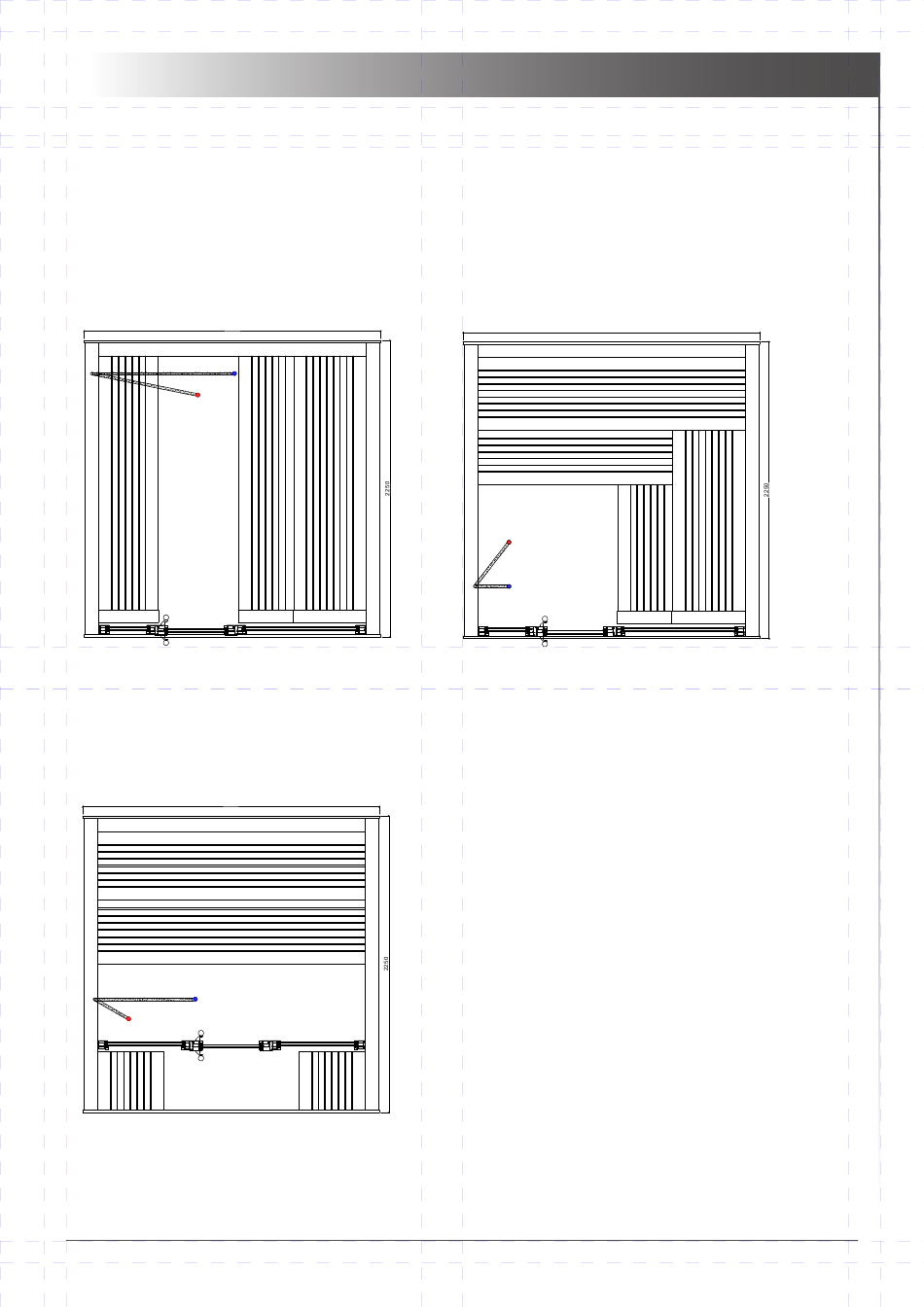

There are cable ducts in the sauna for the installation of the sauna heater. One duct leads out for the power
connection and a second leads from the stove to the temperature sensor in the ceiling (if the stove requires
one). Please refer to the sauna heater installation manual for detailed installation instructions.
If you use a sauna heater with an integrated control, it is necessary to control the lighting using a push button.
Please note that this tactile switch is not included in the scope of delivery.
Cube X1
2250
Temperature
sensor
Stove & Power
Cube X3
2250
Temperature sensor
Stove & Power
Cube X2
2250
Stove & Power
Temperature sensor

Installation
