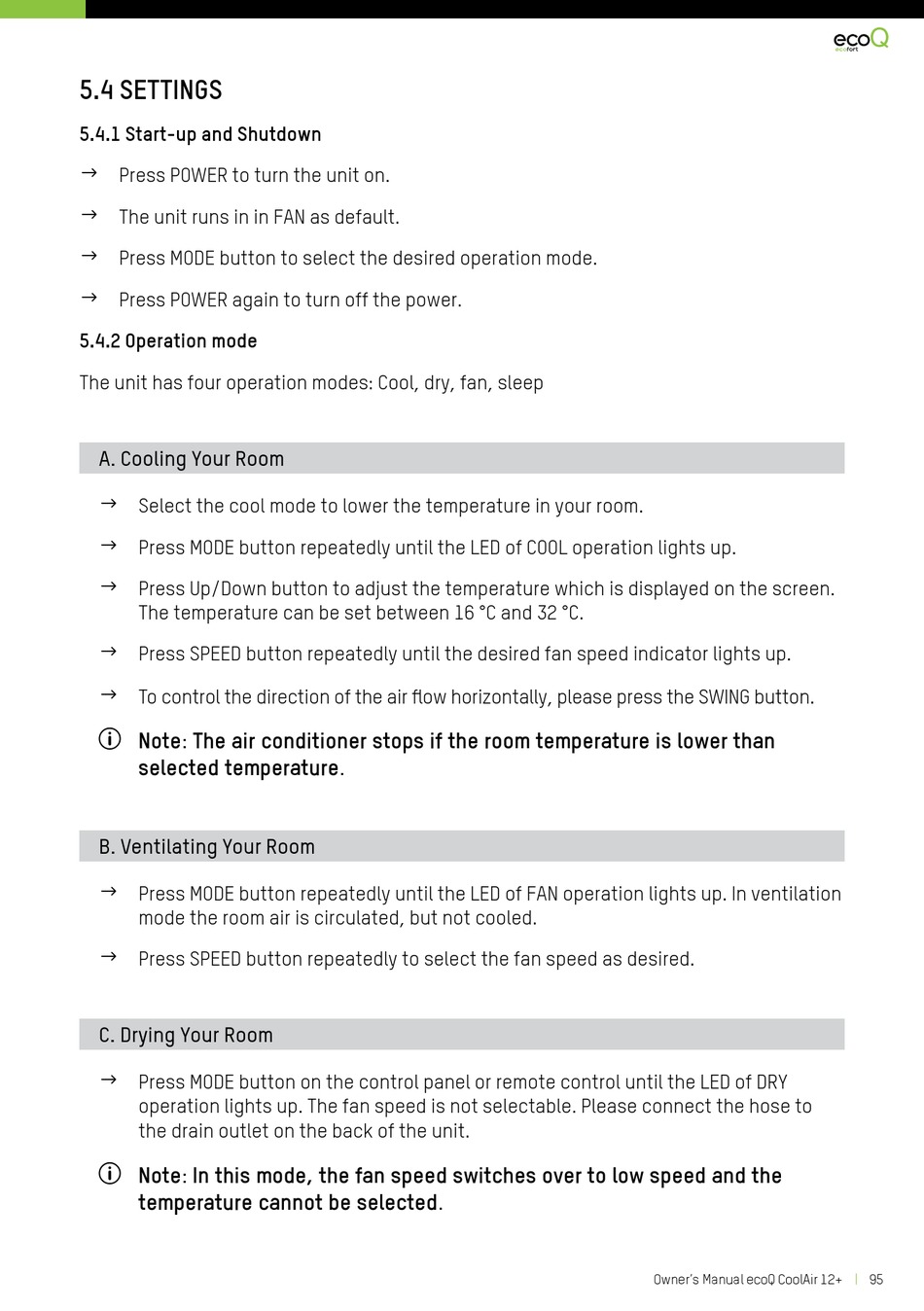

5.4 SETTINGS

5.4.1 Start-up and Shutdown

$ Press POWER to turn the unit on.
$ The unit runs in in FAN as default.
$ Press MODE button to select the desired operation mode.
$ Press POWER again to turn off the power.

5.4.2 Operation mode

The unit has four operation modes: Cool, dry, fan, sleep
A. Cooling Your Room
$ Select the cool mode to lower the temperature in your room.
$ Press MODE button repeatedly until the LED of COOL operation lights up.
$ Press Up/Down button to adjust the temperature which is displayed on the screen.
The temperature can be set between 16 °C and 32 °C.
$ Press SPEED button repeatedly until the desired fan speed indicator lights up.
$ To control the direction of the air flow horizontally, please press the SWING button.
p Note: The air conditioner stops if the room temperature is lower than
selected temperature.
B. Ventilating Your Room
$ Press MODE button repeatedly until the LED of FAN operation lights up. In ventilation
mode the room air is circulated, but not cooled.
$ Press SPEED button repeatedly to select the fan speed as desired.
C. Drying Your Room
$ Press MODE button on the control panel or remote control until the LED of DRY
operation lights up. The fan speed is not selectable. Please connect the hose to
the drain outlet on the back of the unit.
p Note: In this mode, the fan speed switches over to low speed and the
temperature cannot be selected.
Owner's Manual ecoQ CoolAir 12+ | 95
