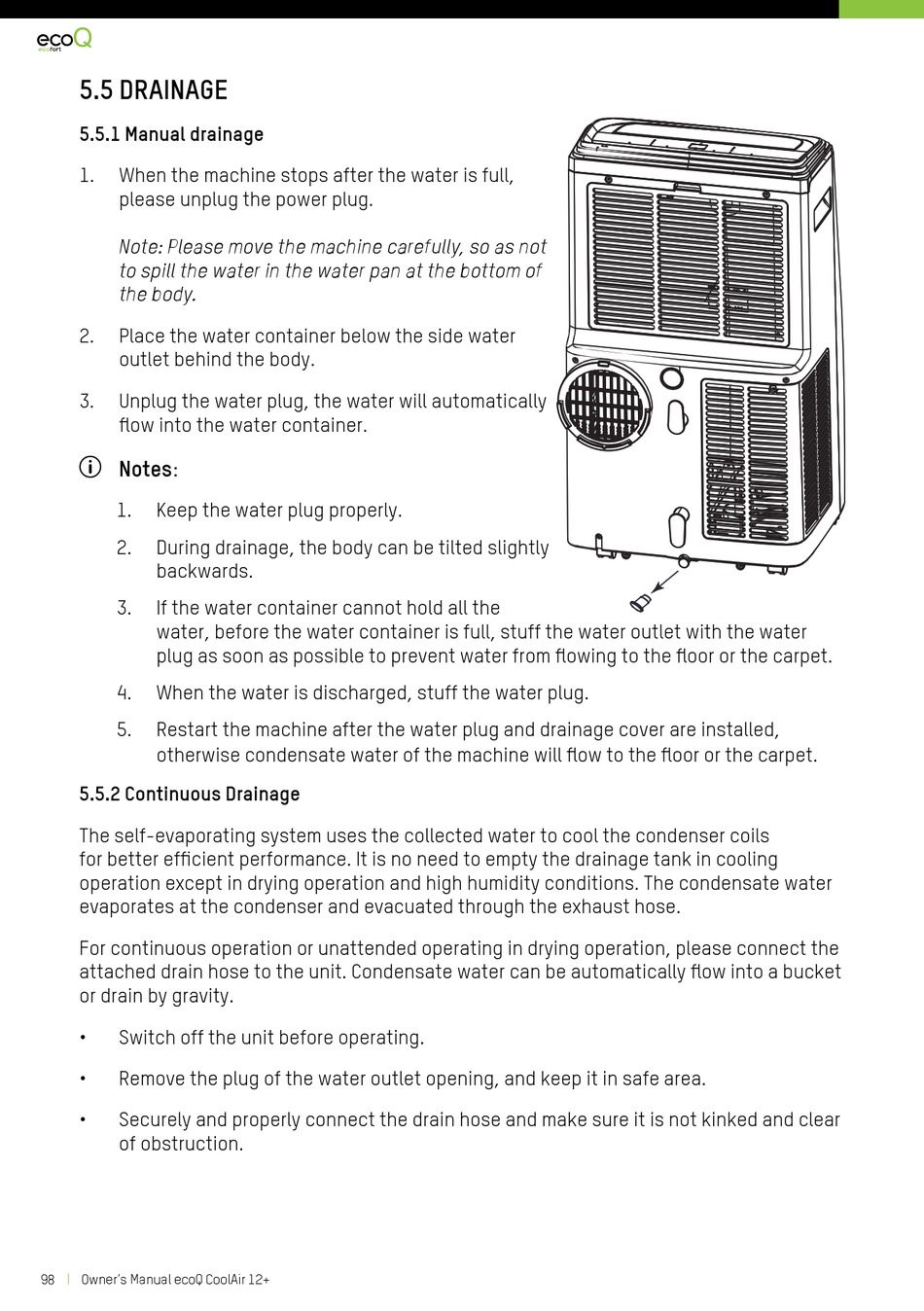

5.5 DRAINAGE
5.5.1 Manual drainage
1.
When the machine stops after the water is full,
please unplug the power plug.
Note: Please move the machine carefully, so as not
to spill the water in the water pan at the bottom of
the body.
2.
Place the water container below the side water
outlet behind the body.
3.
Unplug the water plug, the water will automatically
flow into the water container.
p Notes:
1.
Keep the water plug properly.
2.
During drainage, the body can be tilted slightly
backwards.
3.
If the water container cannot hold all the
water, before the water container is full, stuff the water outlet with the water
plug as soon as possible to prevent water from flowing to the floor or the carpet.
4.
When the water is discharged, stuff the water plug.
5.
Restart the machine after the water plug and drainage cover are installed,
otherwise condensate water of the machine will flow to the floor or the carpet.
5.5.2 Continuous Drainage
The self-evaporating system uses the collected water to cool the condenser coils
for better efficient performance. It is no need to empty the drainage tank in cooling
operation except in drying operation and high humidity conditions. The condensate water
evaporates at the condenser and evacuated through the exhaust hose.
For continuous operation or unattended operating in drying operation, please connect the
attached drain hose to the unit. Condensate water can be automatically flow into a bucket
or drain by gravity.
•
Switch off the unit before operating.
•
Remove the plug of the water outlet opening, and keep it in safe area.
•
Securely and properly connect the drain hose and make sure it is not kinked and clear
of obstruction.
